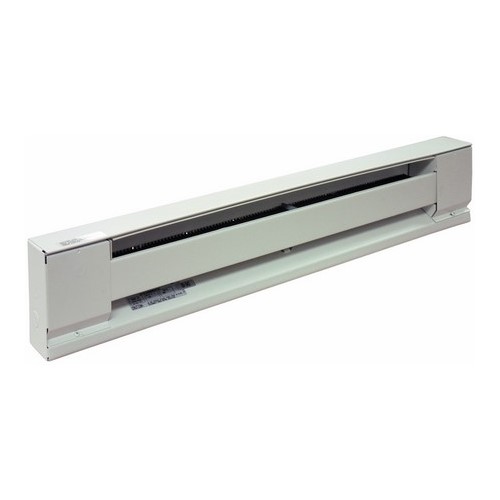

375/281W 240/208V 24" Baseboard Htr, Steel Element, White
Convection Heaters
619084
MFG #: H2903024SW
TPI
57.78000
/ ea
- Amperage Rating: 1.6/1.4 A
- Application: Indoor-Residential/Commercial/Some Industrial
- ARRA Compliant: Y
- Buy American Compliant: Y
- Capacity: 1275/955 BTU/h
- Catalog Number: H2903024SW
- Color: White
- Country of Origin: US
- Currency: USD
- Dimensions: 24 in L x 2-1/2 in D x 6 in H
- EU RoHS Indicator: N
- Finish: Painted
- Gross Weight Per Pack: 10.0000 lb
- Gross Weight per Pack Metric: 4.54
- Gross Weight UOM Metric: kg
- Height: 3.00 in
- Height [Metric]: 7.6200 cm
- Housing Material: Steel
- Length: 28.00 in
- Length [Metric]: 71.1200 cm
- Material: Steel
- Model: H2903-024SW
- Mounting: Wall
- Mounting Type: Wall
- Phase: 1
- Power Rating: 375/281 W
- Series: 2900S
- Standard: ETLus Listed
- Type: 1-Phase Standard
- UNSPSC: 40101811
- UPC 11: 68633410501
- UPC 12: 68633410501
- Voltage Rating: 208/240 VAC
- Width: 7.00 in
- Width [Metric]: 17.7800 cm
- Stock Status: NONSTOCK
- Brand: TPI
- Manufacturer: TPI
- Applications
- Features
| Indoor-Residential/Commercial/Some Industrial |
| Features: Stainless Steel Heating Element and Aluminum Fins;Over-Temperature Thermal Limit;Junction Boxes Contain Quick Connect Cable Clamps;6 IN Ground Lead Wires;Manufactured in U.S.A; Wattage: 375/281 WTT; Btu Rating: 1275/955; Color: White |
| Stainless steel heating element and aluminum fins |
| Painted 22 ga steel front with 20 ga junction boxes located on each end of the heater - junction boxes contain quick connect cable clamps and 6 in ground lead wires |
| Over temperature thermal limit extends entire length of heated area |
| A full length wireway provided along the back of the heater |
| Heater can be mounted to the wall by using the key hole knockouts every 4 in at the back of the heater |
| Optional in-built thermostats field installed in the junction box |
