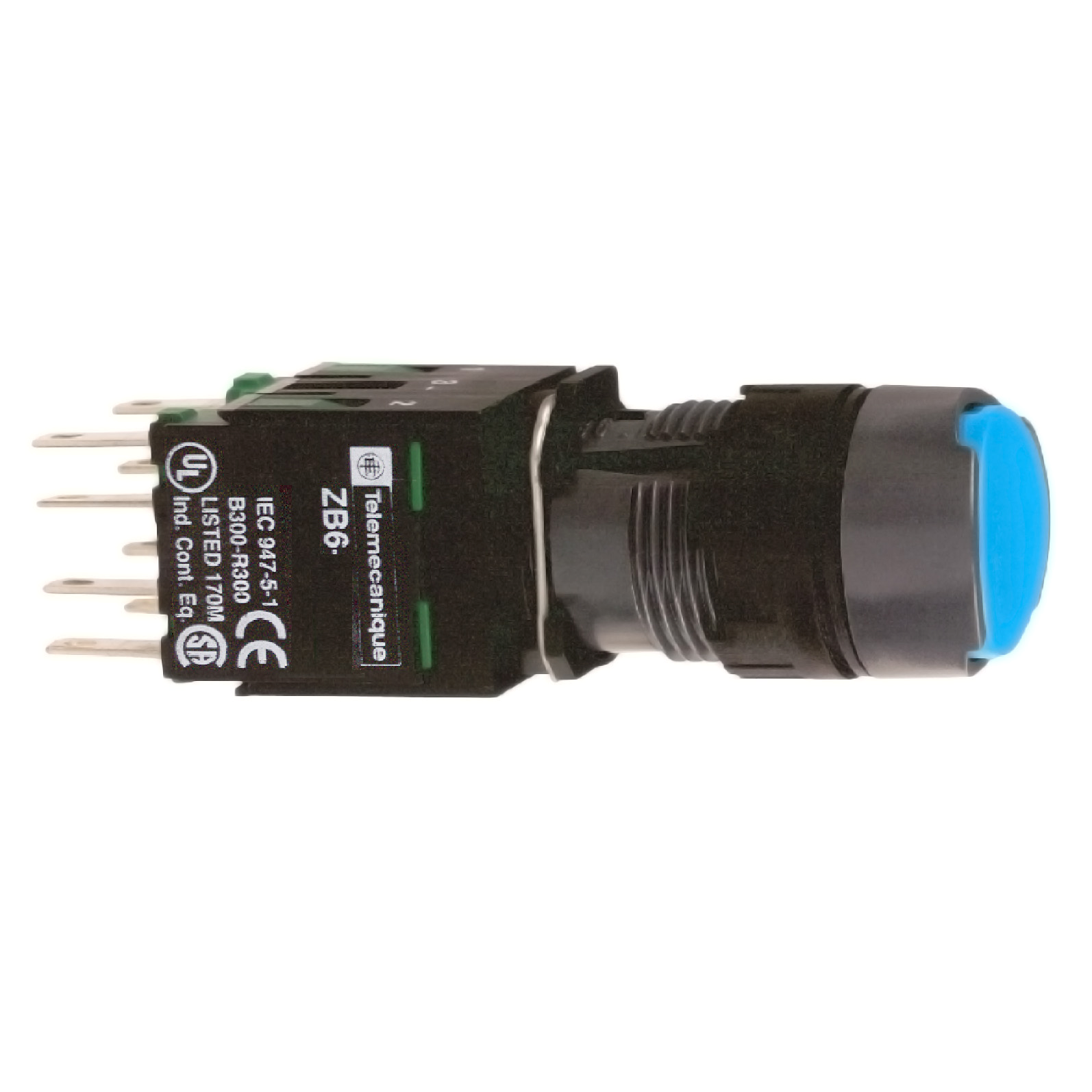

Schneider Electric XB6AW6B5B PUSHBUTTON 240VAC 1.5
Illuminated Pushbuttons
552759
MFG #: XB6AW6B5B
Schneider Electric
52.40000
/ ea
- Action: SLOW-BREAK
- Actuator: Blue flush, unmarked; spring return
- Alternate Catalog Number: XB6AW6B5B
- Amperage Rating: 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: XB6AW6B5B
- Connection: Faston connectors 2.8 x 0.5 mm
- Country of Origin: US
- Currency: USD
- Enclosure: NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 0.0300 lb
- Gross Weight per Pack Metric: 14.97
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536509031
- Height: 5.03 in
- Height [Metric]: 12.9030 cm
- Illumination Type: LED
- Indicator: LED,INTEGRAL LED
- Insulation: 250 V 3)EN/IEC 60947-1
- Item Group: 22459
- Length: 10.06 in
- Length [Metric]: 25.8060 cm
- Material: Plastic
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267936217&lang=en-us
- Operating Temperature: -25-70 A°C
- Returnable: N
- Sub Brand: XB6
- Type: COMPLETE ILLUMINATED PUSH-BUTTON
- UNSPSC: 39122216
- UPC 11: 78590135664
- UPC 12: 785901356646
- Voltage Rating: 12...24 V AC/DC
- Warranty Description: Contractual Warranty:18 months
- Width: 7.55 in
- Width [Metric]: 19.3550 cm
- Stock Status: NONSTOCK
- Brand: Schneider Electric
- Manufacturer: Schneider Electric
- Contact Configuration: 1 NO + 1 NC
- Size: 16 MM,18 MM,18 MM,57 MM in
Schneider Electric XB6AW6B5B PUSHBUTTON 240VAC 1.5AMP XB6 +OPTIONS,1 NO + 1 NC,12...24 V AC/DC,16 mm,Harmony XB6,LED,integral LED,complete illuminated push-button,complete illuminated push-button,plastic,slow-break,spring return
- Brochure URL - bb9a53b06d55608937c962e7631148f0ee669e67.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=XB6AW1B5B.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_JRY87K5N2TF1W0D9.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_081VRMUCZGXWJYB6.pdf(Spec Sheet URL)
- Features
| COMPLETE ILLUMINATED PUSH-BUTTON,PLASTIC |
