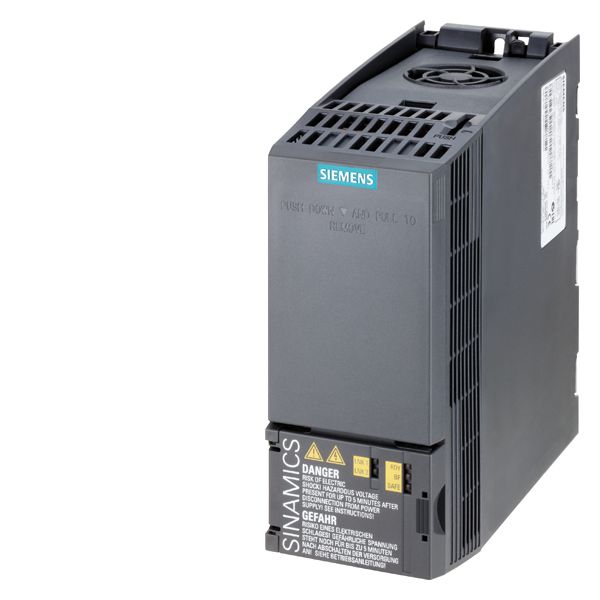

Siemens 6SL32101KE158AB2 SINAMICS G120C
Inverter Drives
1088416
MFG #: 6SL32101KE158AB2
Siemens
819.73000
/ ea
- Alternate Catalog Number: 6SL3210-1KE15-8AB2
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: 6SL32101KE158AB2
- Country of Origin: GB
- Currency: USD
- Depth: 155
- Enclosure Type: IP20/Open
- EU RoHS Indicator: C
- Gross Volume Per Pack: 268.01
- Gross Volume UOM: in
- Gross Weight Per Pack: 2.8700 lb
- Gross Weight per Pack Metric: 1.30
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8504409540
- Height [Metric]: 9.6012 cm
- Length: 9.0900 in
- Length [Metric]: 23.0886 cm
- Returnable: N
- Series: SINAMICS G120C
- Standards: CE CertifiedcUL ListedUL ListedC-Tick (RCM)EMC 2004/108/EC/2006/95/EC
- Type: 3-Phase
- UNSPSC: 39121007
- UPC 11: 80476624964
- UPC 12: 804766249648
- Width [Metric]: 19.8120 cm
- Stock Status: NONSTOCK
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 7.4 A Input, 5.6 A Output
- Height: 3.7800 in
- Horsepower: 3
- Voltage Rating: 380 to 480 VAC Input, 400 VAC Output
- Width: 7.8000 in
SINAMICS G120C RATED POWER 2,2KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE 6DI, 2DO,1AI,1AO SAFE TORQUEOFF INTEGRATED FIELDBUS USS/ MODBUS RTU PROTECTION IP20/ UL OPEN TYPE SIZE FSAA173X73X155(HXWXD) EXTERNAL 24V
- 3D Rendering URL - getCadDocument?articleNumber=6SL3210-1KE15-8AB2&fileType=3DPDF(3D Rendering URL)
- Catalog URL - Siemens_6SL3210_1KE11_8AB2_Catalog.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- User Manual URL - man(User Manual URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=6SL3210-1KE15-8AB2&language=en(Spec Sheet URL)
- Features
| High power density, smaller envelope dimensions |
| Side by side mounting without derating |
| Compact design that requires little space in the cabinet and reduces cost |
| Optimized commissioning |
| Easy configuration |
| Intuitive serial commissioning, which reduces cost and saves time |
| Simple and fast software settings |
| Simple handling during commissioning and operation |
| Uniform, end to end operating concept |
| Engineering efficiency |
| 4.1 to 5.6 A output, 6 to 7.4 A input, 8.2 maximum input |
