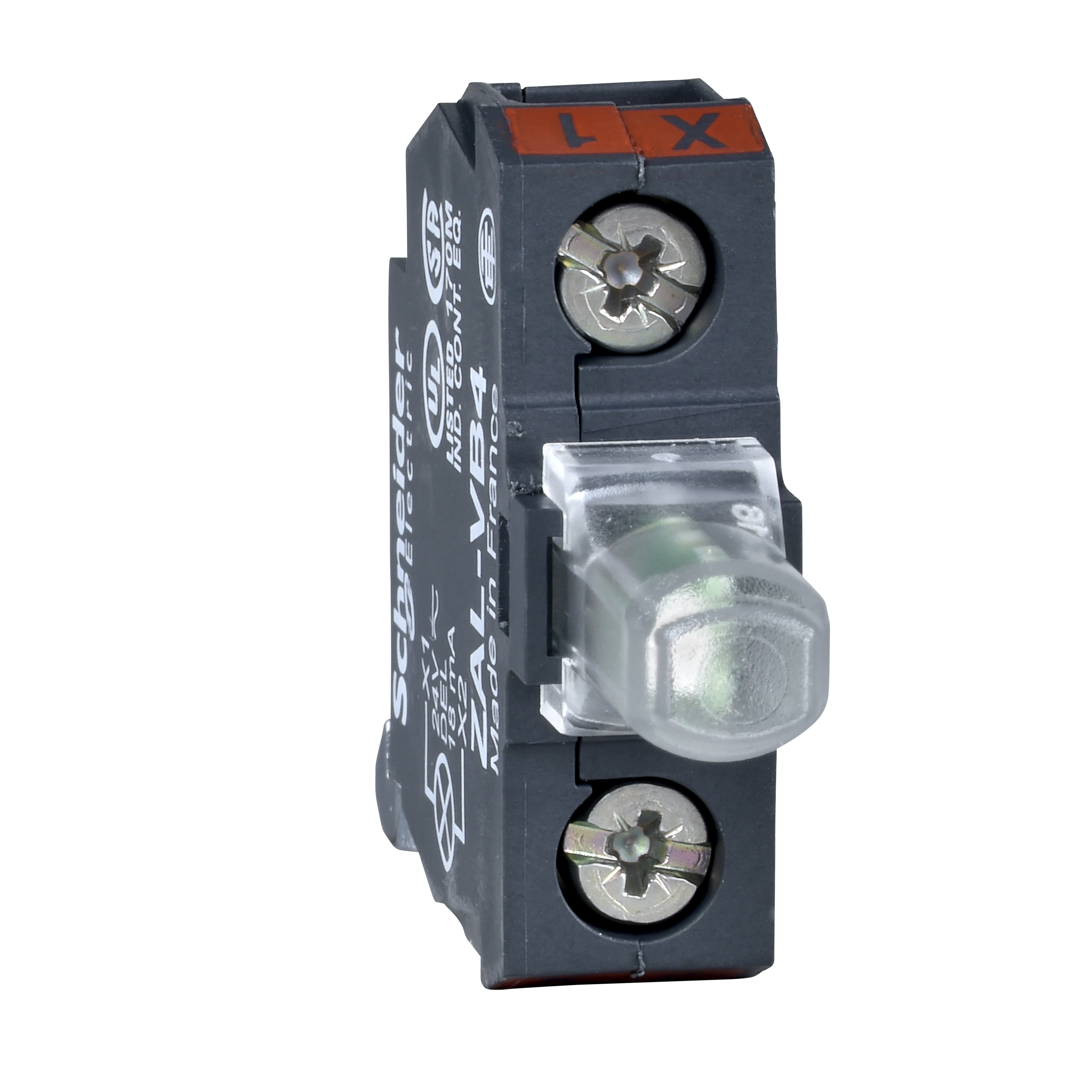

Schneider Electric ZALVB4 Harmony™ ZALV Light Block With Protected™ LED, 24 VAC/VDC, 18 mA, Screw Clamp Terminal
Control Station Accessories
367774
MFG #: ZALVB4
Schneider Electric
54.83000
/ ea
- Alternate Catalog Number: ZALVB4
- Application: For XB5 Ø 22 mm control and signalling units
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: ZALVB4
- Country of Origin: FR
- Currency: USD
- Enclosure: IP20
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 0.94
- Gross Volume per Pack Metric: 15.40
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 1.0000 lb
- Gross Weight per Pack Metric: 10.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536610000
- Height: 3.5000 in
- Height [Metric]: 1.0000 cm
- Item Group: 22475
- Length: 10.0000 in
- Length [Metric]: 4.5000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=663202&lang=en-us
- Mounting: REAR MOUNTING
- Operating Temperature: -40-70 A°C
- Returnable: Y
- Standards: UL 508, CSA C22.2 No 14, JIS C 4520, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5
- Sub Brand: IP20
- Substitute Product Catalog Number: ZB5AZ905
- Type: Light block
- UNSPSC: 39121565
- UPC 11: 78590137964
- UPC 12: 785901379645
- Voltage Rating: 24 VAC//VDC
- Warranty Description: Contractual Warranty:18 months
- Width: 4.5000 in
- Width [Metric]: 3.5000 cm
- Stock Status: NORMALLY STOCKED
- Brand: Schneider Electric
- Manufacturer: Schneider Electric
- 360 Degree View URL - 360(360 Degree View URL)
- Brochure URL - f859956b2e266ce3926d62547a6e7c36445832bd.pdf(Brochure URL)
- Catalog URL - Schneider_Electric_ZB2BY2311_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=ZALVB4-3d.stp(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_8YT61UPB4QLAKCGF.pdf(Spec Sheet URL)
- Applications
- Features
| For XB5 Ø 22 mm control and signalling units |
| RED |
| Integral LED bulb base |
| IP20 conforming to IEC 60529 |
| 7.08 to 10.62 lbf-in tightening torque |
| 250 VAC insulation voltage |
| 4 kV conforming to EN/IEC 60947-1 impulse withstand voltage |
| Steady signaling type |
| 100000 hr at rated voltage and 25 deg C service life |
| -40 to 158 deg F ambient air temperature for operation |
