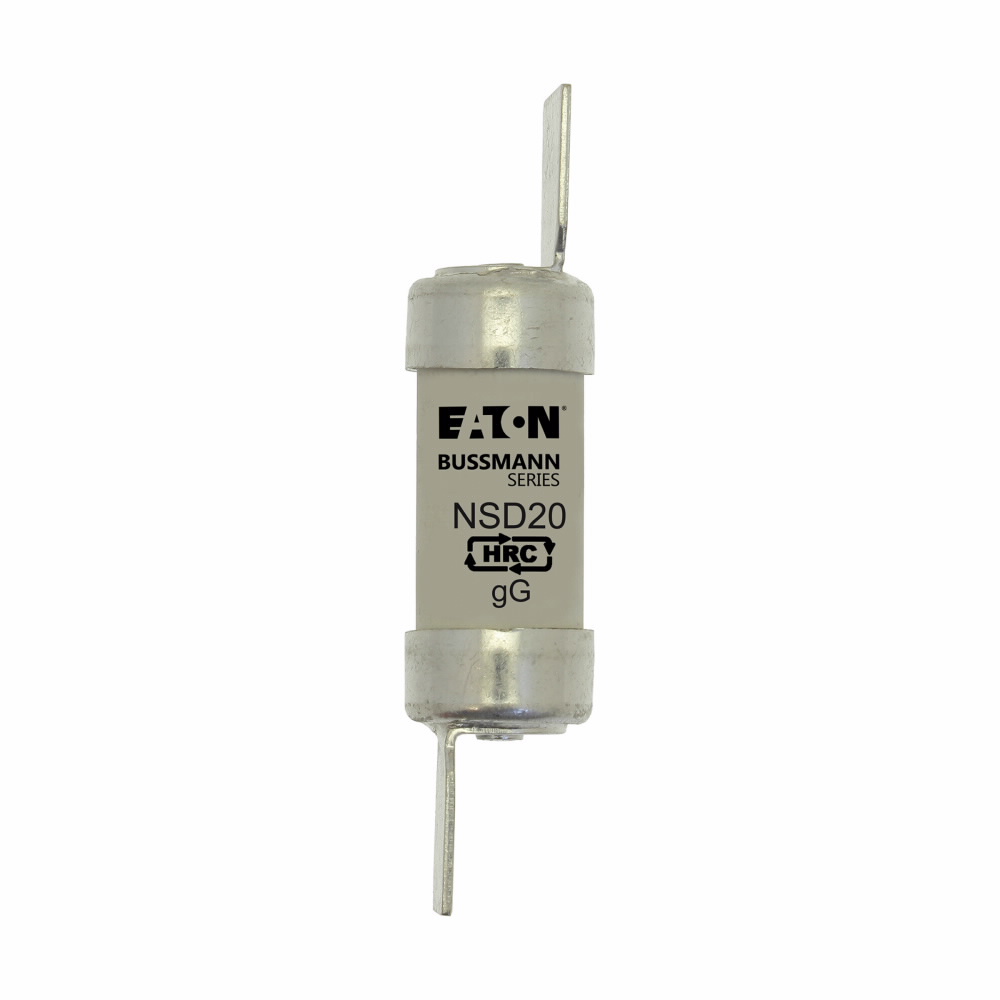

Edison NSD20 NSD Offset Blade Tag Non-Indicating HRC Fuse, 20 A, 550 VAC, 80 kA, Class gG, Cartridge Blade Body
Power Fuse
652582
MFG #: NSD20
Bussmann
23.56000
/ ea
- Alternate Catalog Number: NSD20
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: NSD20
- Connection: Blade end
- Country of Origin: IN
- Currency: USD
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.00235625 lb
- Harmonization Tariff Schedule Code: 8536100040
- Height: 2.24 in
- Height [Metric]: 5.7000 cm
- Length: 2.72 in
- Length [Metric]: 6.8999 cm
- Standard: RoHS Compliant
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantBS88IEC 269-1
- Sub Brand: Bussmann Series
- Type: Low voltage British standard fuse
- UNSPSC: 39121626
- UPC 11: 05171284028
- UPC 12: 051712840286
- Width: 2.44 in
- Width [Metric]: 6.1999 cm
- Stock Status: NONSTOCK
- Brand: Bussmann
- Manufacturer: Eaton
- Amperage Rating: 20 A
- Class: Class gG/gL
- Interrupt Rating: 80 kAIC
- Voltage Rating: 550 V
- Catalog URL - Edison_NSD10_Brochure.pdf(Catalog URL)
- http://www.bussmann.com(Seller Home Page URL)
- Installation Video URL - eaton-bussmann---bs88-industrial-fuse-links?autoStart=true&q=bs88(Installation Video URL)
- Spec Sheet URL - skuPage.NSD20.pdf(Spec Sheet URL)
- Tech Bulletin URL - datasheet.php?model=NSD20&locale=en_GB(Tech Bulletin URL)
- Video - https://videos.eaton.com/detail/video/5661060596001/eaton-bussmann---red-spot-industrial-...(Video)
- Applications
- Features
| Ind Facilities & Factories - Facility: Safety and Security SystemsElec Assemblies, Panels & EOEM - Panel BuildersElec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - OtherInd Facilities & Factories - Facility: Power Distribution and ControlElec Assemblies, Panels & EOEM - Control Panels for MachinesElec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMsElec Assemblies, Panels & EOEM - Elec Assemblies/Panels/EOEMs - Aftermarket |
| Good peak let through current limitation |
| 1:1:6 selective coordination ratio between minor and major fuse |
| Power loss values well within the limits of IEC 60269 |
