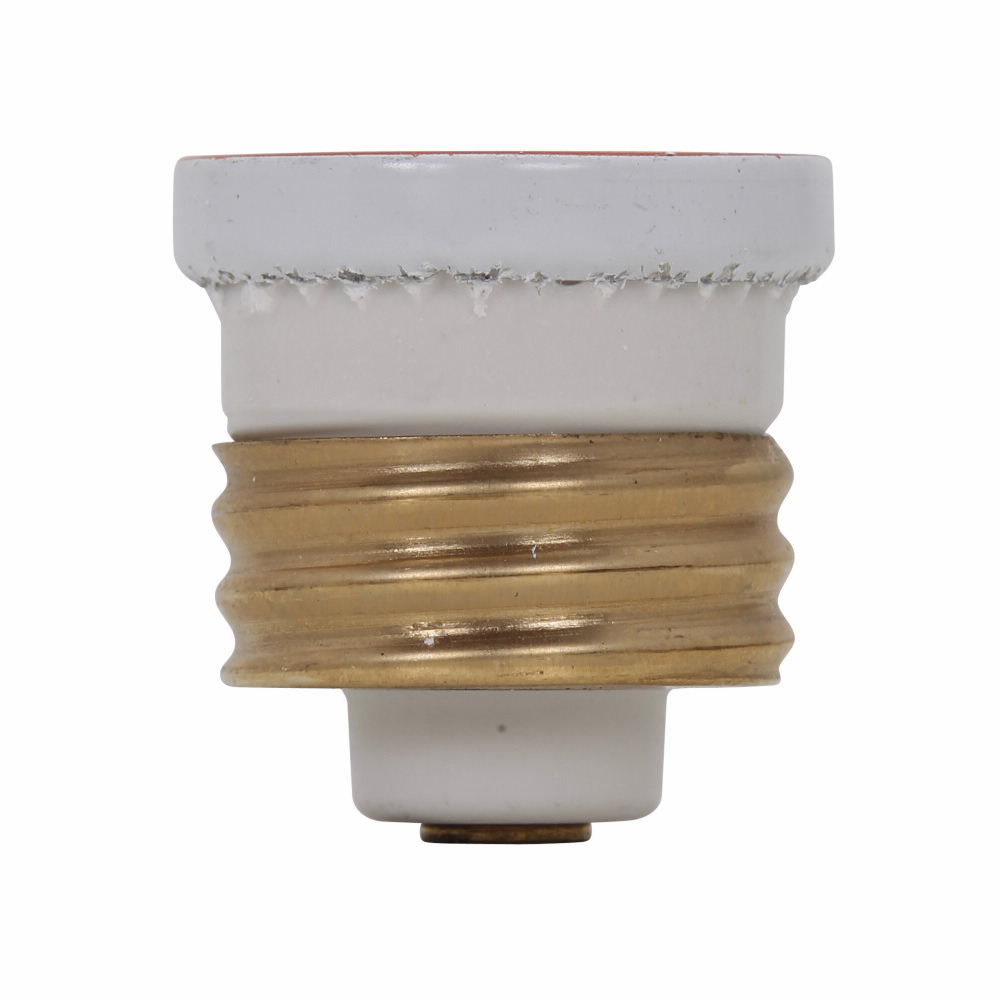

Bussmann® T-20 T Series Heavy Duty Time Delay Plug Fuse, 20 A, 125 VAC, 10 kA Interrupt, Round Body
Plug Fuses
4692
MFG #: T-20
Bussmann
14.88000
/ ea
- Alternate Catalog Number: T-20
- Application: Residential Bldgs & Facilities - Residential Bldgs & Facilities - Other
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: T-20
- Country of Origin: MX
- Currency: USD
- Element: Dual
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.0113 lb
- Gross Weight per Pack Metric: 0.11
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536100040
- Height: 1.25 in
- Height [Metric]: 3.1750 cm
- Length: 2.38 in
- Length [Metric]: 6.0452 cm
- Material: Brass/Plastic
- Mounting: Threaded
- Mounting Type: Threaded
- Series: T Series
- Standard: Contact factory
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 248-11UL ListedGuide JEFVUL File No. E12112CSA CertifiedClass 1423-01CSA File No. 53787CE Certified
- Sub Brand: Bussmann Series
- Terminal Type: Stud
- Type: Plug fuse
- UNSPSC: 39121605
- UPC 11: 05171210122
- UPC 12: 051712101226
- Width: 2.25 in
- Width [Metric]: 5.7150 cm
- Stock Status: NORMALLY STOCKED
- Brand: Bussmann
- Manufacturer: Eaton
- Amperage Rating: 20 A
- Interrupt Rating: 10 kAIC kA
- Voltage Rating: 125 V
- Application GDE URL - Bussmann_T_15_Application_Guide.pdf(Application GDE URL)
- Brochure URL - COBUSSE01827_41.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_c06447018b65b9cbc0e17d9c3666fa7e83a943663007dda623cd690f168c13a6.pdf(Catalog URL)
- http://www.bussmann.com(Seller Home Page URL)
- Spec Sheet 2 URL - Edison_T_1_1_8_Specification_Sheet_2.pdf(Spec Sheet 2 URL)
- Spec Sheet URL - 10973_6ZFKXGIU1RN3VYWS.pdf(Spec Sheet URL)
- Spec Sheet URL - skuPage.T-20.pdf(Spec Sheet URL)
- Tech Drawing URL - 10973_ZGB6KXQ9FWAYDMIP.pdf(Tech Drawing URL)
- Applications
- Features
| Residential Bldgs & Facilities - Residential Bldgs & Facilities - Other |
| Heavy-duty |
| Edison base threads into non-rejection fuse receptacles |
| Heavy duty dual element construction for motor circuits |
| This spring loaded design provides superior short circuit and overload protection |
| Use to protect critical motor circuits or motors that cycle ON/OFF frequently |
| The T fuses have more time delay than the medium duty fuses in order to better protect industrial motors and critical residential circuits |
| This spring loaded design provides superior short circuit and overload protection |
| More time-delay than the medium duty Type TL fuses in order to better protect industrial motors and critical residential circuits |
| Brass threads |
| 10 kA RMS symmetrical interrupt rating |
