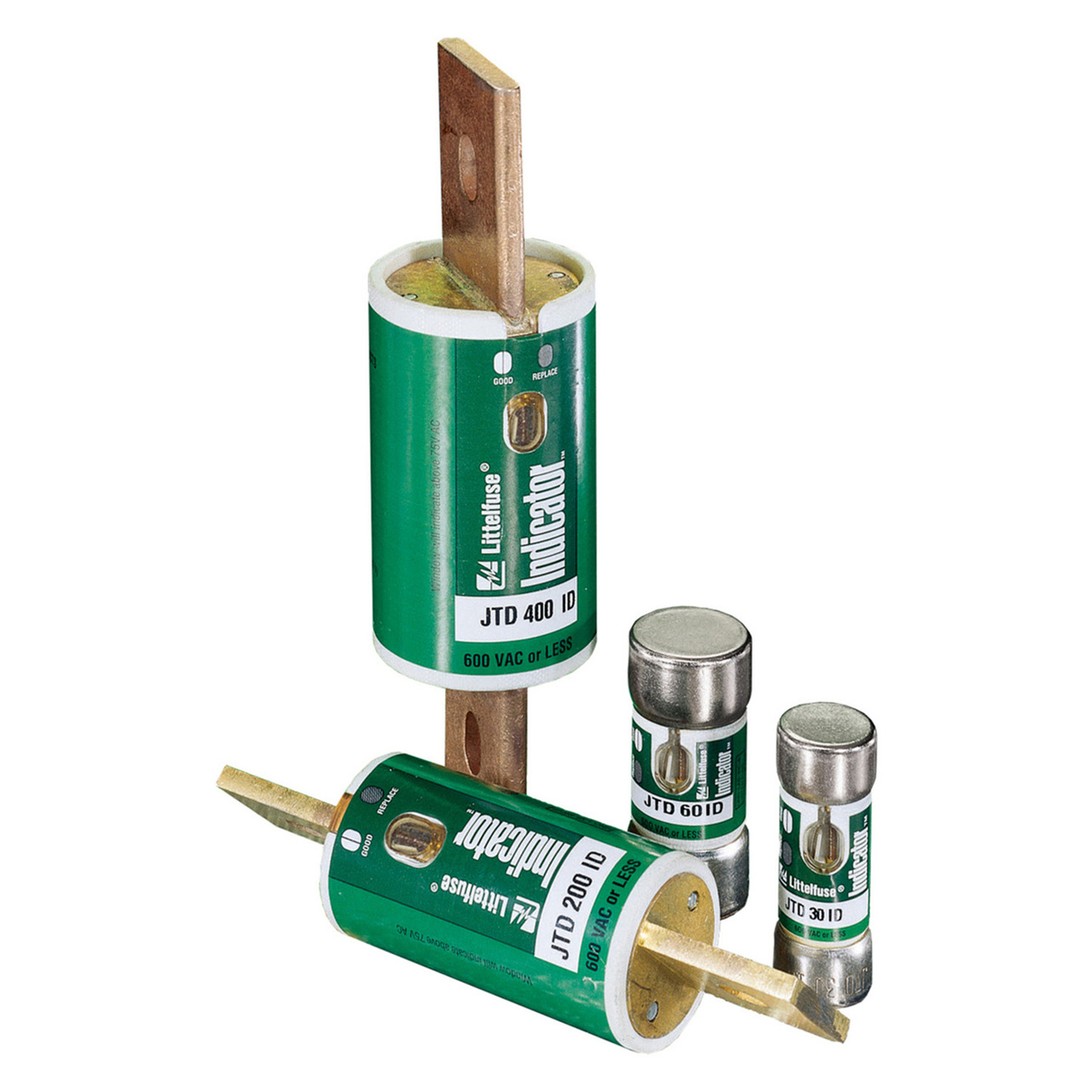

Littelfuse® JTD200 POWR-GARD® JTD Current Limiting Time Delay Fuse, 200 A, 600 VAC/500 VDC, 200/20 kA Interrupt, Class J Series
Class J Fuses
9328
MFG #: JTD200
Littelfuse®
177.85000
/ ea
- Alternate Catalog Number: 0JTD200.X
- Application: Motor Control Centers
- ARRA Compliant: N
- Body Size: 1-1/2 in Dia x 5-3/4 in L
- Buy American Compliant: N
- Catalog Number: JTD200
- Country of Origin: MX
- Currency: USD
- Element: Dual
- EU RoHS Indicator: N
- Gross Weight Per Pack: 0.7100 lb
- Gross Weight per Pack Metric: 361.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536100040
- Indicating|Non~Indicating: Non-Indicating
- Item Group: 079458-UY
- Material: Melamine
- Mounting Type: Holder
- Series: JTD
- Standard: Standard 248-8 UL Listed/CSA
- Standards: RoHS ComplianUL 248-8 File No.E81895CSA File No.LR29862PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
- Sub Brand: POWR-GARD JTD Series
- Terminal Type: Knife Blade
- Type: Class J
- UNSPSC: 39121609
- UPC 11: 07945820229
- UPC 12: 079458202298
- Stock Status: NORMALLY STOCKED
- Brand: Littelfuse®
- Manufacturer: Littelfuse Inc.
- Amperage Rating: 200 A
- Body Type: Cartridge
- Class: J
- Interrupt Rating: 200/20 kA
- Voltage Rating: 600 VAC/500 VDC
- Brochure URL - 11468_ZMLGDEHVFOQAW4NX.pdf(Brochure URL)
- Catalog URL - Littelfuse_315_250P_Catalog.pdf(Catalog URL)
- http://www.littelfuse.com(Seller Home Page URL)
- Spec Sheet URL - 11468_7GTFJ5WC4YVRXE3N.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11468_80Y1OURLJQBTXWCP.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11468_AGJPB83IEX9ZND24.pdf(Tech Drawing URL)
- Applications
- Features
| Motor Control Centers |
| Time-Delay |
| Reduced down time - A glance at the indicating window of a JTD_ID indicator fuse pinpoints open fuses immediately |
| Machine operators can immediately determine that there is an open fuse and request maintenance personnel to bring the proper replacement |
| Reduce nuisance opening - indicator fuses have superior time-delay and cycling characteristics they can be used on a variety of applications, thus decreasing fuse inventory |
| Reduce fuse inventory - Because JTD_ID indicator fuses have superior performance characteristics they can be used on a variety of applications, thus decreasing fuse inventory |
| Reduce equipment damage - indicator fuses provide superior overload and short circuit protection that can reduce equipment damage |
| Indicator fuses also provide IEC type II "No Damage" protection to IEC and NEMA type motor starters |
| Reduce accidents the JTD_ID indicator fuse improves safety by minimizing exposure to live circuits |
| IEC type 2 protection |
| 200 kA rms symmetrical at 600 VAC/20 kA at 500 VDC |
