- ARRA Compliant: C
- Buy American Compliant: Y
- Catalog Number: WYR101006CSV
- Country of Origin: US
- Currency: USD
- EU RoHS Indicator: N
- Gross Weight Per Pack: 1 lb
- Standards: UL 514A/50/50E/E24824, CSA C22.2 No. 40, 001472, Class II Division 1 and 2, and Class III
- UNSPSC: 39121332
- UPC 11: 78138186823
- UPC 12: 781381868235
- Stock Status: NONSTOCK
- Brand: Appleton™
- Manufacturer: Appleton

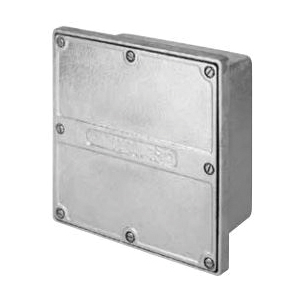

Appleton® Junction Box, Flange, Series: WYR, 10 in Length, 10 in Width, 6 in Depth, NEMA 1/2/3/3R/3S/4/5/6/6P/12/12K/13, Gasketed/Recessed/Screw Cover, Flush Mount, Cast Iron, Hot Dipped Galvanized
- Features
Neoprene gasket to between cover and box |
Wide box flange permits greater contact between gasket and box |
Wide selection of sizes and locations for drilled-and-tapped and slip hole conduit entrances |
This type of box is designed especially for flush mounting in masonry in walls or floors or can be used for surface mounting using optional mounting lugs |
Cast iron cover, stainless steel screws |
0.3125 in THK wall |
Watertight, raintight, dust-tight |
Checkered steel covers suitable for vehicular traffic H-25 loading |
