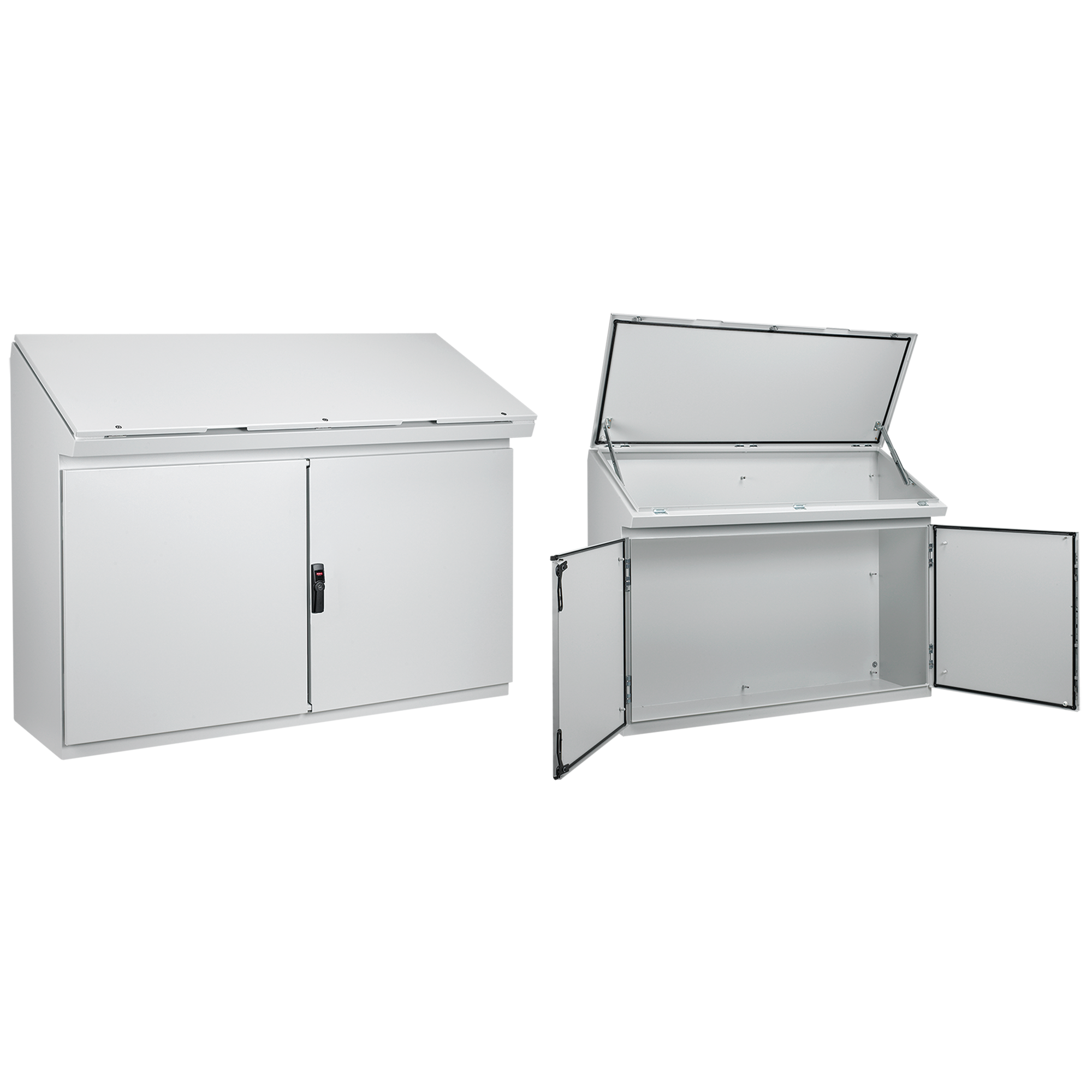

nVent HOFFMAN ProLine™ PGLD12165DC Gold/P11 2-Door Double Bay Single Access Desk Console Enclosure, 1175 mm L x 1555 mm W x 469 mm D, NEMA 12 NEMA Rating, Steel
Console & Consolet Enclosures
337838
MFG #: PGLD12165DC
nVent HOFFMAN
4278.98000
/ ea
- Application: Controls and Drives
- ARRA Compliant: C
- Assemble to Order: No
- Buy American Compliant: C
- Catalog Number: PGLD12165DC
- Color: Light Gray
- Color Code: RAL 7035
- Country of Origin: US
- Currency: USD
- EU RoHS Indicator: Y
- Finish: Powder Coat
- Gross Volume Per Pack: 65.17
- Gross Volume UOM: FC
- Gross Weight Per Pack: 0.0274 lb
- Gross Weight per Pack Metric: 129.73
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 9403200090
- Height [Metric]: 133.9850 cm
- Interchangeable: No
- IP Rating: IP66
- Item Group: P11
- Length [Metric]: 177.8000 cm
- Modification Services: Yes
- Package Quantity: 1
- Product Family: ProLine
- Returnable: Y
- Shipping Weight: 274 lb
- Size: 1200x1600x500mm
- Standards: UL 508A Listed, Type 12, File Number E61997, cUL Listed per CSA C22.2 No 94, File No. E61997, NEMA/EEMAC Type 12, IEC 60529, IP 55, RoHS Complaint
- Sub Brand: ProLine
- Thickness: 14 ga
- Thickness [Metric]: 1.9 mm
- Type: Mild Steel Modular Industrial Enclosures
- UNSPSC: 39121323
- UPC 11: 78351014386
- UPC 12: 783510143862
- Width [Metric]: 77.4700 cm
- Stock Status: NONSTOCK
- Brand: nVent HOFFMAN
- Manufacturer: HOFFMAN ENCLOSURES
- Depth: 18.47
- Height: 52.75 in
- Length: 70.00 in
- Material: Mild Steel
- NEMA Rating: 12 Indoor, dust-resistant
- Width: 30.50 in
- Applications
- Features
| Controls and Drives |
| 14 gauge steel body, 14 and 16 gauge steel doors, 25-degree sloped top, Seams continuously welded and ground smooth, Top door prop allows for single-handed operation, Built-in top door handle, Quarter-turn latches hold top door securely closed, PROLINE latching system and keylocking swing handles on front doors and on rear doors of dual-access enclosures, Internal rails on dual-access enclosures facilitate mounting of PROLINE internal components, Full access provides maximum mounting space and easy access to interior components |
| 14 ga steel body |
| 14 and 16 ga steel doors |
| 25 deg sloped top |
| Seams continuously welded and ground smooth |
| Top door prop allows for single-handed operation |
| Built-in top door handle |
| quarter-turn latches hold top door securely closed |
| ProLine™ latching system and keylocking swing handles on front doors and on rear doors of dual-access enclosures |
| Internal rails on dual access enclosures facilitate mounting of ProLine™ internal components |
| Full access provides maximum mounting space and easy access to interior components |
| With front and rear doors for easy access, the console provides a large space for mounting internal components and controls and can be configured in an arc by using the wedge accessory |
