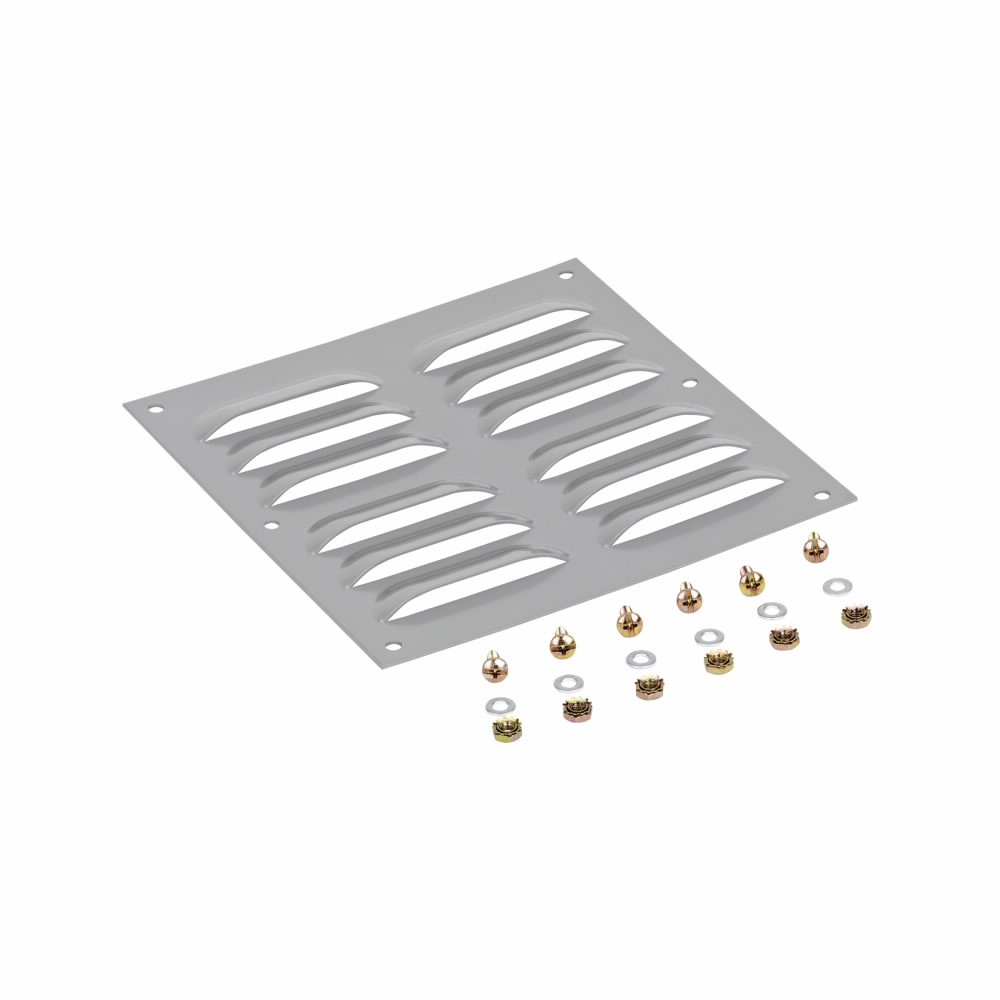

Bussmann® LPK33 Louver Plate Kit, Steel, Gray
Enclosure Window, Louver, Filter Kits
824621
MFG #: LPK33
B-Line
49.46000
/ ea
- Alternate Catalog Number: 78205148214
- Application: Mobile Machinery and Equipment - Mobile Machinery and Equipment - OtherElec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMsGeneration - Conventional Energy - Conventional Energy
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: LPK33
- Country of Origin: US
- Currency: USD
- Dimensions: 3.87 in H x 4.5 in W x 0.25 in D
- EU RoHS Indicator: C
- Finish: Polyester Powder Coated
- Gross Weight Per Pack: 0.3440 lb
- Gross Weight per Pack Metric: 0.16
- Gross Weight UOM Metric: kg
- Height: 2.50 in
- Height [Metric]: 6.3500 cm
- Length: 8.12 in
- Length [Metric]: 20.6375 cm
- Returnable: N
- Size: 4.50 In Width X 0.25 In Depth X 3.87 In Height
- Specifications: 0.21 in Dia Hole
- Standard: UL
- Standards: ARRA CompliantBuy American Act CompliantRoHS Compliant
- Sub Brand: B-Line series
- Suitable For Use With: Enclosure and B-Line Series Filter Kits
- Type: Louver Plate Kit
- UNSPSC: 39121321
- UPC 11: 78205148214
- UPC 12: 782051482140
- Width: 3.12 in
- Width [Metric]: 7.9248 cm
- Stock Status: NONSTOCK
- Brand: B-Line
- Manufacturer: Eaton
- Color: Gray
- Material: Steel
Bussmann Louver Plate Kit, 0.21 in Dia Hole, Steel, Polyester Powder Coated, Gray, 3.87 in H x 4.5 in W x 0.25 in D
- Brochure URL - Accessories-LouverPlateKits.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_2e040f8d3e6197402e9a513186c57787fb8331c5bfae36f835e583f859b9d049.pdf(Catalog URL)
- http://www.bline.com(Seller Home Page URL)
- Spec Sheet 1 URL - B_Line_LPK23_Datasheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11024_9I0THO7UBEDCKXF4.pdf(Spec Sheet URL)
- Warranty 1 URL - IDW_DOCUMENT_1537666263090.pdf(Warranty 1 URL)
- Warranty URL - 11024_ID-WAR-v1-B-Line_Legal_Statement_and_Terms_and_Conditions.pdf(Warranty URL)
- Warranty URL - b-line-terms-and-conditions.html(Warranty URL)
- Applications
- Features
| Mobile Machinery and Equipment - Mobile Machinery and Equipment - OtherElec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMsGeneration - Conventional Energy - Conventional Energy |
| Excellent for providing ventilation in enclosures where external conditions or internal components may cause excessive amount of heat or moisture |
| Designed to be used with B-Line series filter kits using the same cut-out and mounting hole configurations |
| Louver plate kits include all of the necessary hardware and instructions for field installation |
| Plates are constructed from 16 ga steel and have an ANSI 61 gray polyester powder finish |
| 3.12 in W enclosure cut-out |
| 1.68 sq-in area opening |
| 3-3/4 in hole distance |
