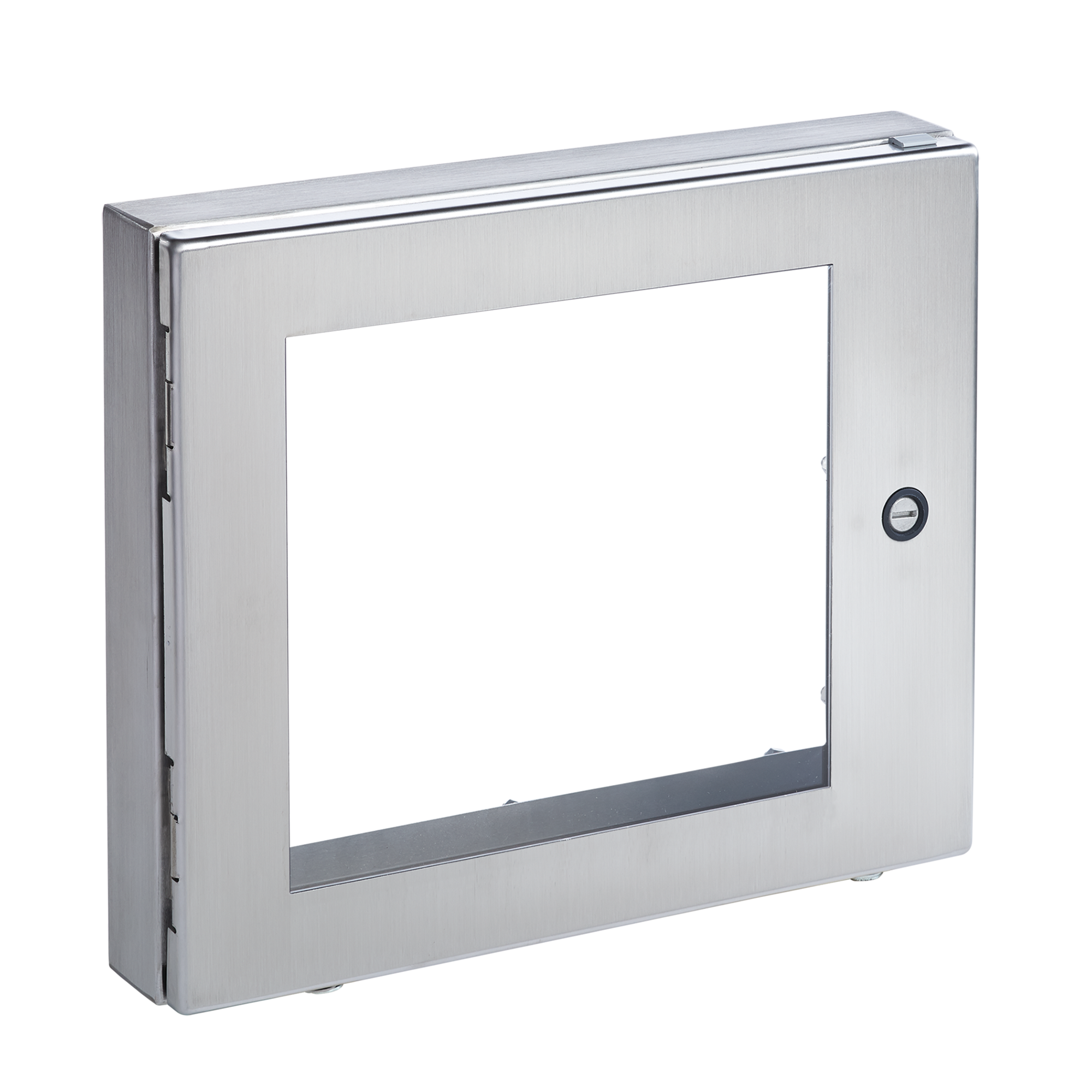

nVent HOFFMAN AWDH2416N4SS A80SW Deep Hinged Window Kit, 18.68 in H x 7.41 in W, 22.19 in H x 12.14 in W x 2.73 in D, 316 Stainless Steel, Brushed
Enclosure Window Kits
409120
MFG #: AWDH2416N4SS
nVent HOFFMAN
3397.30000
/ ea
- Accessory Type: Window Kits
- Application: Controls and Drives; Corrosive Environments; Power Distribution
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: AWDH2416N4SS
- Country of Origin: US
- Currency: USD
- EU RoHS Indicator: RCP
- Gross Volume Per Pack: 1.53
- Gross Volume UOM: FC
- Gross Weight Per Pack: 14.8000 lb
- Gross Weight per Pack Metric: 6.71
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 7326908688
- Height: 6.5000 in
- Height [Metric]: 16.5100 cm
- Item Group: A80SW
- Length: 15.9000 in
- Length [Metric]: 65.0240 cm
- NEMA Rating: 4 Watertight
- Returnable: Y
- Size: 22.19 x12.14 in
- Standards: cUL Listed per CSA C22.2 E61997, EU Certified, IEC 60529, IP66, RoHS Compliant, UL 508A E61997
- Type: Industrial Door Mounting and Locks
- UNSPSC: 39121321
- UPC 11: 78351013016
- UPC 12: 78351013016
- Width: 25.6000 in
- Width [Metric]: 40.3860 cm
- Stock Status: NONSTOCK
- Brand: nVent HOFFMAN
- Manufacturer: HOFFMAN ENCLOSURES
- Color: Unpainted
- Finish: Brushed #4
- Material: 316 Stainless Steel
nVent HOFFMAN Window Kit, Deep Hinged, Series: A80SW, 18.68 in H x 7.41 in W Window, 22.19 in H x 12.14 in W x 2.73 in D, NEMA 3R/4/4X/12/IP66, 316 Stainless Steel, Brushed
- http://www.hoffmanonline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11015_NTQ984UKS7WYER5M.pdf(Install Instructions 1 URL)
- Spec Sheet URL - Spec-00477.pdf(Spec Sheet URL)
- Tech Drawing URL - 87948405.gif(Tech Drawing URL)
- Install Instructions URL - stream_document.aspx?rRID=19597&pRID=6703(Install Instructions URL)
- Spec Sheet 1 URL - Hoffman_AWDH1418N4_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Warranty URL - terms-of-sale(Warranty URL)
- Applications
- Features
| Controls and Drives; Corrosive Environments; Power Distribution |
| Manufactured from Type 316L stainless steel or painted mild steel, Quarter-turn latches for quick access, 0.25-in. (6-mm) thick, clear polycarbonate windows for easy viewing, 2.5-in. (64-mm) deep to allow for deep controls, Built-in gasket compression stop on back of window kit facilitates flush mounting, Designed for either left or right hinging, Includes mounting template and mounting hardware, Easy-to-remove clip-style hinge pin |
| Quarter turn latches for quick access |
| 1/4 in THK, clear polycarbonate windows for easy viewing |
| 2.5 in deep to allow for deep controls |
| Built in gasket compression stop on back of window kit facilitates flush mounting |
| Designed for either left or right hinging |
| Easy to remove clip style hinge pins |
| Window kits are conveniently sized to allow direct mounting in the usable door area of Hoffman NEMA and concept wall mount enclosures, as well as any Hoffman enclosure with a suitably sized mounting surface |
| Deep-hinged window kits provide protection, visibility and easy access to equipment and components installed behind the viewing area |
