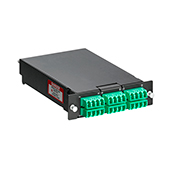

Leviton® Opt-X® SPLCS-24V Fiber Splice Module, 14 ga Anodized Aluminum
Fiber Optic Patch Panels - Loaded
1280687
MFG #: SPLCS-24V
Leviton®
978.10000
/ ea
- Application: Wide Area Networks (WAN), Campus Environments, High Count Riser Buildings, Government Installat
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: SPLCS-24V
- Color: Green
- Country of Origin: MUL
- Currency: USD
- EU RoHS Indicator: C
- Gross Weight Per Pack: 1.4300 lb
- Gross Weight per Pack Metric: 0.65
- Gross Weight UOM Metric: kg
- Hazard Class: N
- Height: 7.0000 in
- Length: 10.2500 in
- Mounting: Wall;Rack
- Size: 1.260 H x 4.937 W x 6.500 in
- Sub Brand: OPT-X
- Type: Fiber Splice Module
- UNSPSC: 39121449
- UPC 11: 07847765592
- UPC 12: 078477655924
- Stock Status: NONSTOCK
- Brand: Leviton®
- Manufacturer: Leviton Manufacturing Co., Inc.
- Material: Aluminum
- Applications
- Features
| Wide Area Networks (WAN), Campus Environments, High Count Riser Buildings, Government Installat |
| Quad LC Adapters (Green) and 24-Fiber OS2 LC/APC Individual Pigtails, Includes 40mm Splice Sleeves, Protect and Organize Heat Shrink Fusion Spliced Fibers Inside a Fiber Enclosure, Made in USA |
| Module integrates fiber adapter bulkhead 12 or 24 fibers and splice holders, eliminating the need of splice trays |
| Offered in single mode (OS2) UPC and APC and laser optimized multimode (OM3) fiber types |
| Other fiber types available as special orders |
| Individual compartments provide slack storage and bend radius guides for respective backbone cable, 900 um tig |
| Two 12 fiber, color coded 900 um tight buffer pigtails are 1 m and pre-loaded in modu |
| Modular design allows for ease of maintenance of individual spliced fiber and allows for scaling up without impacting existing fibers |
