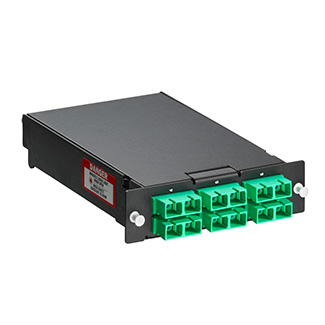

Leviton® OPT-X® SPSCS-12V SDX Pigtail Fiber Splice Module, 12 Ports, Anodized Aluminum
Fiber Optic Patch Panels - Loaded
1280688
MFG #: SPSCS-12V
Leviton®
561.03000
/ ea
- Application: Wide Area Networks (WAN), Campus Environments, High Count Riser Buildings, Government Installat
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: SPSCS-12V
- Color: Green
- Country of Origin: MUL
- Currency: USD
- EU RoHS Indicator: C
- Gross Weight Per Pack: 1.3000 lb
- Gross Weight per Pack Metric: 0.59
- Gross Weight UOM Metric: kg
- Hazard Class: N
- Height: 7.0000 in
- Length: 10.2500 in
- Mounting: Wall;Rack
- Mounting Type: Rack/Wall
- Series: SDX
- Size: 1.260 H x 4.937 W x 6.500 in
- Sub Brand: OPT-X
- Terminal Type: OS2 Singlemode
- Type: Pigtail
- UNSPSC: 39121449
- UPC 11: 07847765593
- UPC 12: 078477655931
- Stock Status: NONSTOCK
- Brand: Leviton®
- Manufacturer: Leviton Manufacturing Co., Inc.
- Material: Anodized Aluminum
- Number of Ports: 12
- Applications
- Features
| Wide Area Networks (WAN), Campus Environments, High Count Riser Buildings, Government Installat |
| Duplex SC Adapters (Green) and 12-Fiber OS2 SC/APC Individual Pigtails, Includes 40mm Splice Sleeves, Protect and Organize Heat Shrink Fusion Spliced Fibers Inside a Fiber Enclosure, Made in USA |
| Module integrates fiber adapter bulkhead and splice holders, eliminating the need of splice trays |
| Offered in single-mode (OS2) UPC and APC and laser optimized multimode (OM3) fiber types |
| Individual compartments provide slack storage and bend radius guides for respective backbone cabl |
| Color coded 900 um fiber tight buffer pigtails are 1 m and pre-loaded in module per specific configuration |
| Modular design allows for ease of maintenance of individual spliced fiber and allows |
| For use with OPT-X® ultra 1000i and 500i RM enclosures and OPT-X® WM enclosures |
