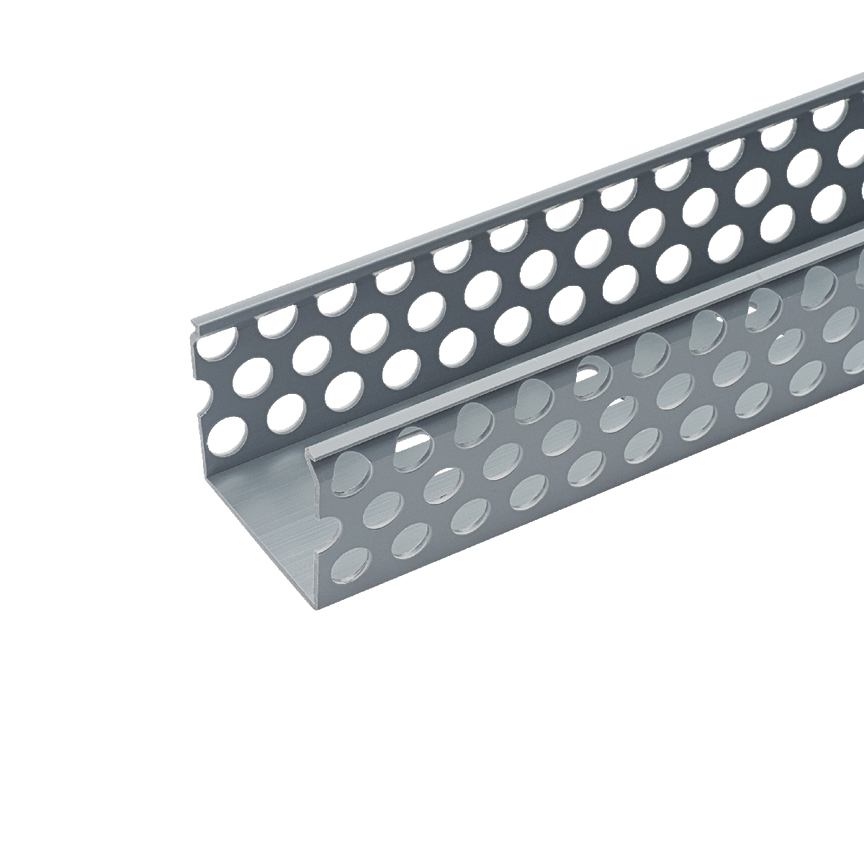

Panduit® D1X2LG6 Type D Wiring Duct, Round Slot, 1 in W x 2 in D, PVC
Round Hole Wiring Ducts
69793
MFG #: D1X2LG6
Panduit®
7.06000
/ ft
- Adhesive Backed: Mounting Holes
- Application: Round hole design has multiple rows of holes to retain and support wire at variable heights and positions.
- ARRA Compliant: Y
- Buy American Compliant: Y
- Catalog Number: D1X2LG6
- Color: Light Gray
- Connection: Mounting Holes
- Country of Origin: USA
- Currency: USD
- EU RoHS Indicator: Y
- Gross Volume UOM: CF
- Gross Volume UOM Metric: m3
- Gross Weight Per Pack: 0.1900 lb
- Gross Weight per Pack Metric: 0.53
- Gross Weight UOM Metric: kg
- Height: 2.00 in
- Height [Metric]: 5.0800 cm
- Length: 72.00 in
- Length [Metric]: 182.8800 cm
- Mounting Type: Surface
- Returnable: Y
- Size: 1.00 x 2.00
- Slot Pitch: NA in
- Slot Style: Hole-/slot punching
- Standard: UL Recognized, CSA Approved, CE Approved
- Sub Brand: Panduct?®
- Thickness: 2 mil
- Type: Base Wiring Duct
- UNSPSC: 39131712
- UPC 11: 07498321160
- UPC 12: 07498321160
- Width [Metric]: 2.5400 cm
- Stock Status: NONSTOCK
- Brand: Panduit®
- Manufacturer: Panduit®
- Depth: 2.12 in
- Material: PVC
- Width: 1.00 in
- Full Eng Drawing URL - 36897-829-R2(D1X3)-200.dxf(Full Eng Drawing URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - D1X2-36897-824-R2-200.dxf(Install Instructions 1 URL)
- Spec Sheet 1 URL - Panduit_D1_5X2LG6_Specification_Sheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10965_A4H2TZDUXQY3G6RJ.pdf(Spec Sheet URL)
- Spec Sheet URL - 10965_H82FN9PMQ0CKOUWL.pdf(Spec Sheet URL)
- Spec Sheet URL - D-WDSP28--WW-ENG-TypeCWiringDuctCover-W.pdf(Spec Sheet URL)
- Tech Drawing URL - 10965_N6K5VXF4EYDUB9QL.dxf(Tech Drawing URL)
- Applications
- Features
| Round hole design has multiple rows of holes to retain and support wire at variable heights and positions. |
| Round Hole |
| Round hole design retains and supports wires at variable heights and positions to enhance wire management |
| Smooth round edges to prevent wire abrasion |
| Base scoreline for easy removal for T-junctions and right angles, saving installation time |
| Easy identification of product color when film is attached, ideal for quick and accurate product selection |
| Narrow slot/finger design provides more slots to fit the spacing of high density terminal blocks and other hardware |
| 122 deg F UL recognized continuous use temperature |
| UL 94 flammability rating of V-0 |
| Provided with mounting holes |
| 4500 psi tensile strength |
| 600% elongation |
| Conforms with NFPA 79-2007 section 13.3.1 requirement for flame retardant material |
| External dimension: 1.26 in W x 2.12 in D |
| Standard Mounting Holes |
| Lead-Free PVC |
