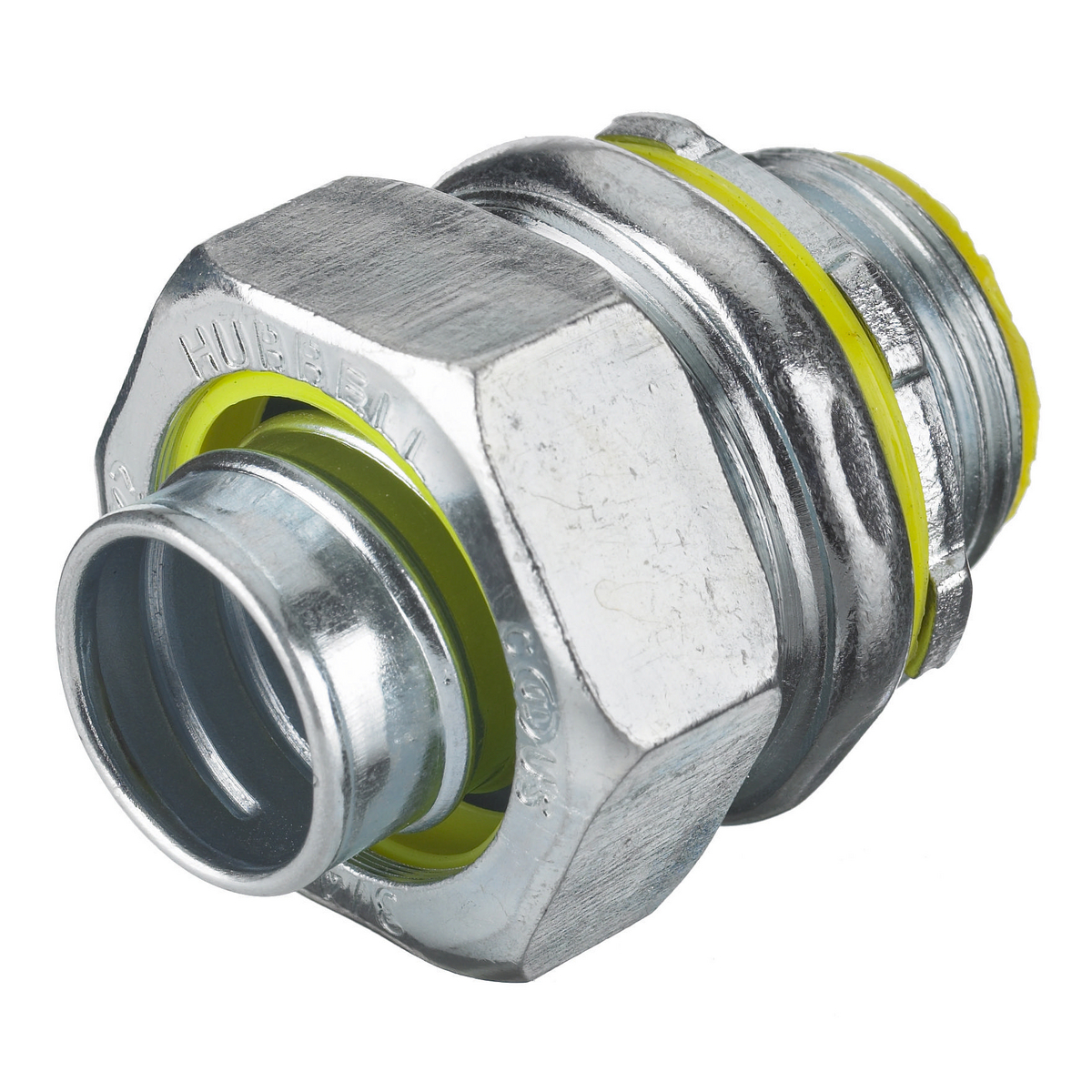

Hubbell Wiring Device-Kellems H0501 Insulated Liquidtight Conduit Connector With Locknut, 1/2 in Trade, Steel, Zinc Plated
Liquidtight Conduit Connectors
26263
MFG #: H0501
Hubbell Wiring Device-Kellems
3.29000
/ ea
- Application: For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: H0501
- Color: Metallic
- Connection: Cap Nut
- Country of Origin: CN
- Currency: USD
- Dimensions: 1.43 in L x 1.34 in W
- Environmental Conditions: Suitable For Use In Wet Locations When A Listed Sealing Ring Is Used Between Box And Fitting
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.1000 lb
- Gross Weight per Pack Metric: 0.01
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8547900030
- Height: 1.18 in
- Height [Metric]: 2.9972 cm
- Length: 1.86 in
- Length [Metric]: 4.7244 cm
- Mounting: Between Enclosure and Conduit
- NEMA Rating: Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
- Returnable: Y
- Size: 1/2 in
- Standard: CSA Certified;UL 514B
- Standards: UL 898D, UL 899DCSA Certified
- Sub Brand: Kellems Wire Management
- Suitable For Use With: Liquidtight Metal Conduit and PolyTuff® I Non-Metallic Conduit
- Temperature Rating: -40 to 225 °F
- Throat Size: 0.61 in
- Type: Metallic Liquidtight Fittings
- UNSPSC: 39121420
- UPC 11: 78358503512
- UPC 12: 783585035123
- Width: 1.18 in
- Width [Metric]: 2.9972 cm
- Stock Status: NORMALLY STOCKED
- Brand: Hubbell Wiring Device-Kellems
- Manufacturer: Hubbell
- Finish: Metallic
- Material: Steel, Zinc Plated
- Trade Size: 1/2 in
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions URL - IDW_DOCUMENT_1537663458271.pdf(Install Instructions URL)
- Line Drawing URL - 11456_9HFQR1JVYXU0C645.pdf(Line Drawing URL)
- Line Drawing URL - WDK_H050_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_6U0ITY1BLW37HPMZ.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_H0501_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1537666398305.pdf(Tech Drawing URL)
- Tech Drawing URL - WIRING_H0501_M9876_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit |
| Insulated |
| Hexagonal, screw-machined steel thru 1 in and malleable iron on larger sizes |
| Nut compresses gland-ring onto conduit |
| Split, nylon, gland-ring compresses conduit onto ferrule |
| Non integral, reusable steel ferrule is easily installed, to seal conduit |
| Threaded one-piece steel body |
| Tapered, machined threads fasten securely and provide additional liquidtight sealing |
| Locknut has hardened steel tangs to grip securely |
| Nylon gasket provides liquidtight seal at hub |
| -51 to 538 deg C operating temperature |
| NPT male thread connection |
| 0.59 in L thread |
| Class i, div. 2 nec 501-4b, class ii, div. 1 nec 502-4a2, class ii, div. 2 nec 502-4b2, class iii, div. 1 nec 503-3a2, class iii, div. 2 nec 503-3b hazardous locations |
