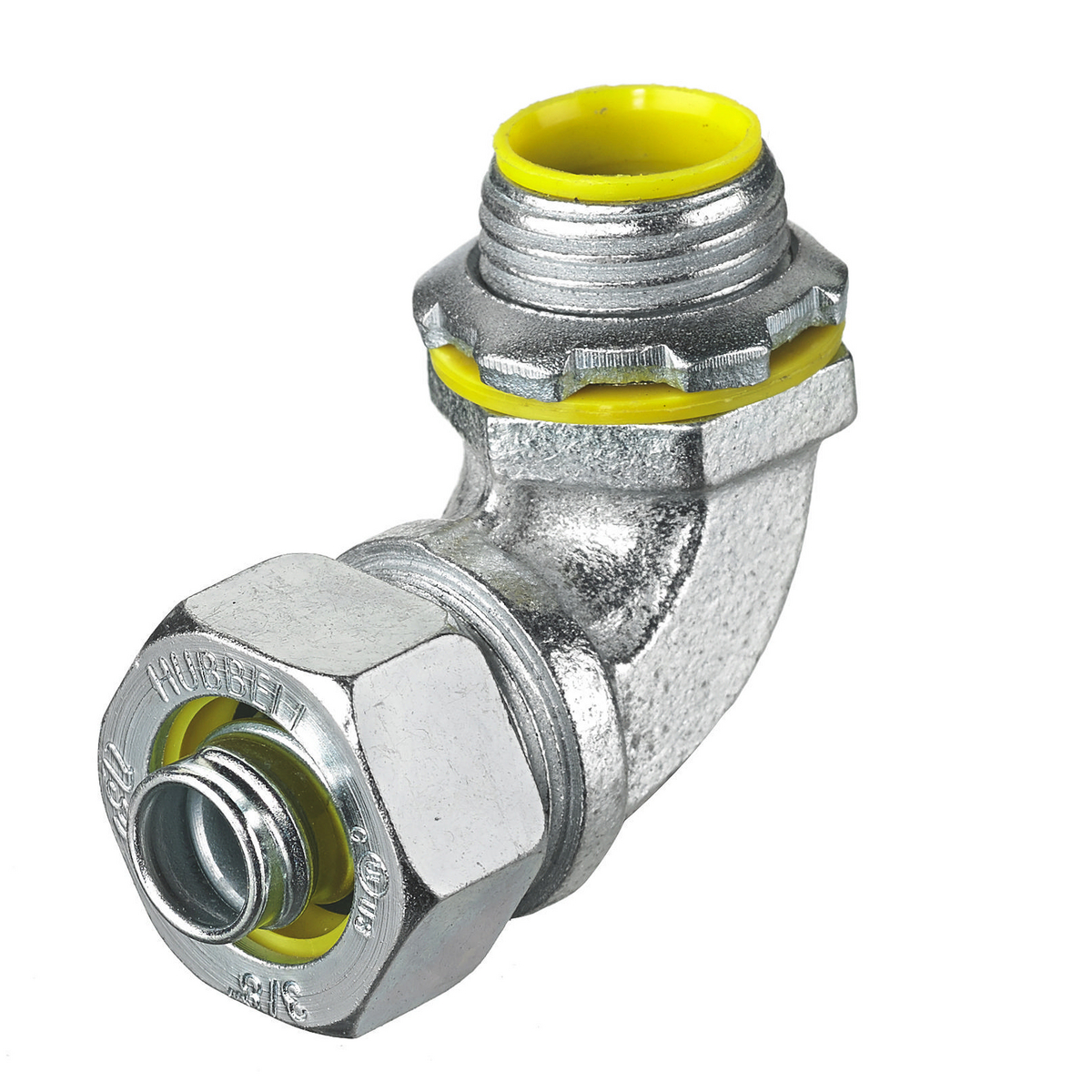

Hubbell Wiring Device-Kellems H03891 Flexible Insulated Liquidtight Conduit Connector, 3/8 in Trade, 90 deg, Steel
Liquidtight Conduit Connectors
406651
MFG #: H03891
Hubbell Wiring Device-Kellems
5.26000
/ ea
- Application: For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: H03891
- Color: Metallic
- Connection: Cap Nut
- Country of Origin: CN
- Currency: USD
- Dimensions: 1.31 in L x 1.2 in W
- Environmental Conditions: Suitable For Use In Wet Locations When A Listed Sealing Ring Is Used Between Box And Fitting
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.1500 lb
- Gross Weight per Pack Metric: 0.11
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 7326908688
- Height: 1.25 in
- Height [Metric]: 3.1750 cm
- Length: 3.00 in
- Length [Metric]: 7.6200 cm
- Mounting: Between Enclosure and Conduit
- Mounting Type: Surface
- NEMA Rating: Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
- Returnable: Y
- Size: 3/8 in
- Standard: CSA Certified;UL 514B
- Standards: ARRA CompliantBuy American Act CompliantClass 1 Div 2, Class II Div 1 and 2, Class III Div 1 and 2UL 898DUL 899DCSA Certified
- Sub Brand: Kellems Wire Management
- Suitable For Use With: Metallic Liquidtight Conduit
- Temperature Rating: -40 to 225 °F
- Throat Size: 0.6 in
- Type: Metallic Liquidtight Fittings
- UNSPSC: 39121420
- UPC 11: 78358503541
- UPC 12: 783585035413
- Width: 1.50 in
- Width [Metric]: 3.8100 cm
- Stock Status: NONSTOCK
- Brand: Hubbell Wiring Device-Kellems
- Manufacturer: Hubbell
- Angle: 90 °
- Finish: Metallic
- Material: Iron, Zinc Plated
- Trade Size: 3/8 in
- Catalog URL - Wiring_Device_Kellems_F2025_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions URL - IDW_DOCUMENT_1537663458271.pdf(Install Instructions URL)
- Line Drawing URL - 11456_ZAU53GO860DR7JVK.pdf(Line Drawing URL)
- Line Drawing URL - WDK_H0389_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_36CRY0H8F1XTIJP7.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_H03891_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1537664769741.pdf(Tech Drawing URL)
- Tech Drawing URL - WIRING_H03891_M9878_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit |
| Insulated |
| Hexagonal nut compresses gland ring onto conduit |
| Nylon gasket provides liquidtight seal at hub |
| Non-integral steel ferrule seals conduit |
| Suitable for use in wet locations when a listed sealing ring is used between box and fitting |
| -40 to 107 deg C operating temperature |
| Mounts between enclosure and conduit |
