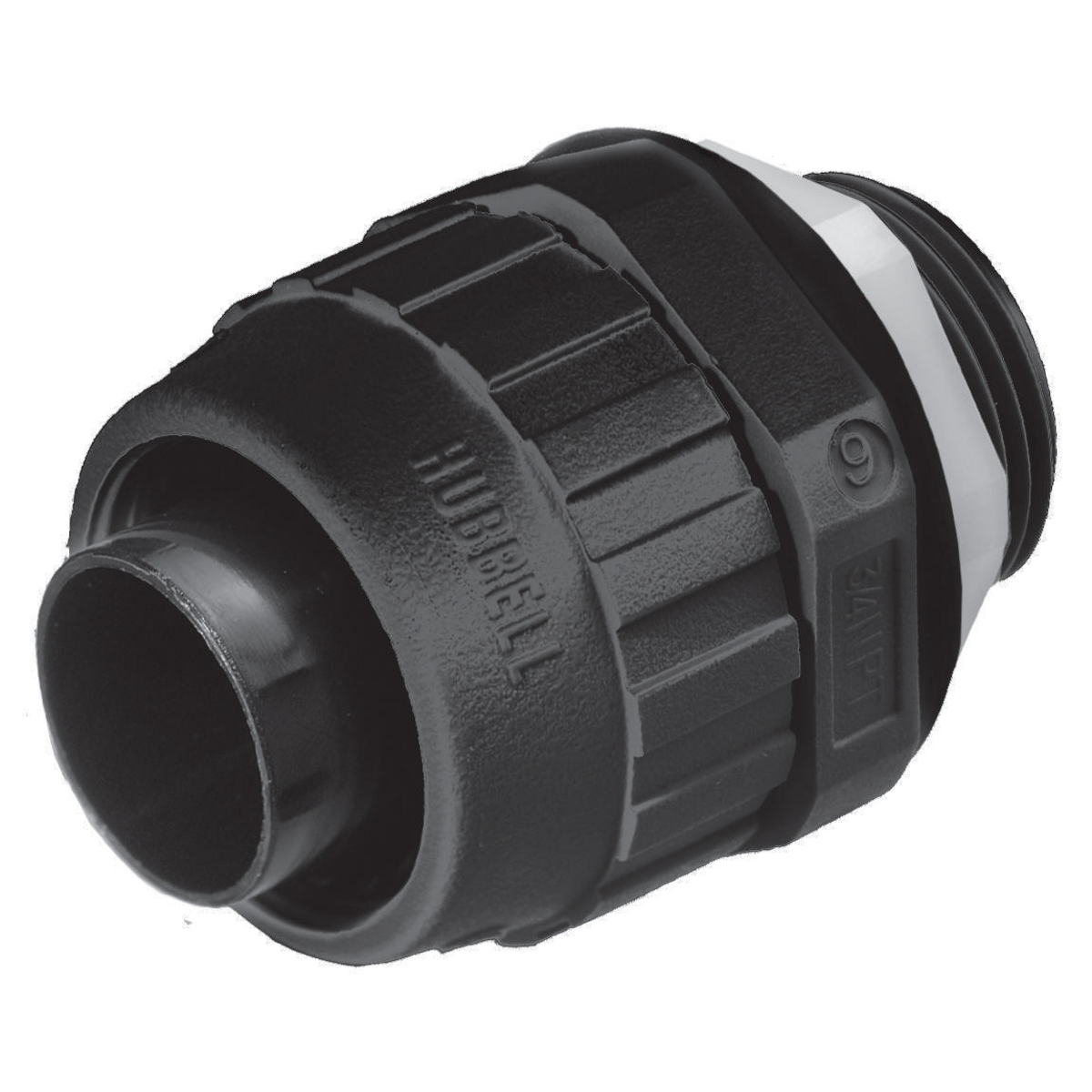

Hubbell Premise Wiring P038NBKA Cap Nut Connection Straight Male Standard Liquidtight Connector, 3/8 in Trade, Nylon, Smooth
Liquidtight Conduit Connectors
27142
MFG #: P038NBKA
Hubbell Wiring Device-Kellems
5.68000
/ ea
- Application: Fittings are to be used with PolyTuff® I and PolyTuff® II
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: P038NBKA
- Color: Black
- Connection: Cap Nut
- Country of Origin: US
- Currency: USD
- Dimensions: 1.63 in L x 1.14 in W
- Environmental Conditions: Suitable For Use In Wet Locations When A Listed Sealing Ring Is Used Between Box And Fitting
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 0.0200 lb
- Gross Weight per Pack Metric: 0.04
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8547200000
- Height: 2.30 in
- Height [Metric]: 5.8420 cm
- Length: 1.10 in
- Length [Metric]: 2.7940 cm
- Mounting: Between Enclosure and Conduit
- Mounting Type: Surface
- NEMA Rating: NEMA 4X, 12 and 13
- Returnable: Y
- Size: 3/8 in
- Standard: CSA Certified;UL Listed:UL50 Type 4X, 12 and 13
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 50UL94 V-2 Flammability RatingCSA CertifiedNEMA 4X/12/13
- Sub Brand: Kellems Wire Management
- Suitable For Use With: PolyTuff® II Non-Metallic Liquidtight Conduit
- Temperature Rating: -40 to 225 °F
- Throat Size: 0.42 in
- Type: Cap Nut Connection Straight Male Standard
- UNSPSC: 39121420
- UPC 11: 78358552540
- UPC 12: 783585525402
- Width: 1.10 in
- Width [Metric]: 2.7940 cm
- Stock Status: NORMALLY STOCKED
- Brand: Hubbell Wiring Device-Kellems
- Manufacturer: Hubbell
- Finish: Smooth
- Material: Nylon
- Trade Size: 3/8 in
PREMISE WIRING Liquidtight Connector, Cap Nut Connection Straight Male Standard, 3/8 in Trade, 0.42 in Throat, For Use With: PolyTuff® II Non-Metallic Liquidtight Conduit, Surface Mount, Nylon, Black, Smooth, 1.63 in L x 1.14 in W
- Catalog 1 URL - Wiring_Device_Kellems_P038NBKA_Catalog_1.pdf(Catalog 1 URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Line Drawing URL - WDK_P038NBKA_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_HV0LNI9ZOYJRMPDU.pdf(Spec Sheet URL)
- Install Instructions 1 URL - WIRING_PD1859_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - Wiring_Device_Kellems_PS05GYKIT_Instruction_Sheet.pdf(Install Instructions URL)
- Tech Drawing URL - WIRING_P038NBKA_M13460_ACAD_DRAWING.dwg(Tech Drawing URL)
- Applications
- Features
| Fittings are to be used with PolyTuff® I and PolyTuff® II |
| Standard Product |
| Nylon compression nut has a tapered dome to tighten ferrule onto conduit |
| Neoprene O-ring provides liquidtight seal |
| Non-integral ferrule provides conduit seal and pullout protection |
| Suitable for use in wet locations when a listed sealing ring is used between box and fitting |
| 0.67 to 0.68 in recommended knockout hole size |
| Mounts between enclosure and conduit |
