EGS 4QSS125T 1-1/4 IN LFMC INSUL CO

Liquidtight Conduit Connectors
1037432 MFG #: 4QSS125T
Appleton™
508.60000 / ea
11301_4QSS-125T
  • ARRA Compliant: N
  • Buy American Compliant: N
  • Catalog Number: 4QSS125T
  • Color: Metallic
  • Connection: Tapered threaded male NPT hub.
  • Country of Origin: CN
  • Currency: USD
  • Dimensions: 2.05 in L x 2.3 in W
  • Environmental Conditions: Liquidtight, Raintight, Oiltight
  • EU RoHS Indicator: C
  • Gross Weight Per Pack: 56.3200 lb
  • Gross Weight per Pack Metric: 25.55
  • Gross Weight UOM Metric: kg
  • Height: 2.30 in
  • Height [Metric]: 5.8420 cm
  • Insulation: Insulated Throat
  • Length: 2.05 in
  • Length [Metric]: 5.2070 cm
  • NEMA Rating: NEMA FB-1, NEMA Type 4
  • Series: 4QSS
  • Size: 1 1/4 IN in
  • Standard: UL Standard: 514B, cULus Listed: E11853, CSA Standard: C22.2 No.18.3
  • Standards: UL 514BcULus E11853CSA C22.2 No. 18.3RoHS CompliantNEMA 4/FB-1
  • Sub Brand: ETP
  • Type: Insulated Throat Straight
  • UNSPSC: 39121420
  • UPC 11: 68785500005
  • UPC 12: 68785500005
  • Width: 2.30 in
  • Width [Metric]: 5.8420 cm
  • Stock Status: NONSTOCK
  • Brand: Appleton™
  • Manufacturer: Appleton
  • Finish: Natural
  • Material: 316 Stainless Steel
  • Trade Size: 1-1/4 in

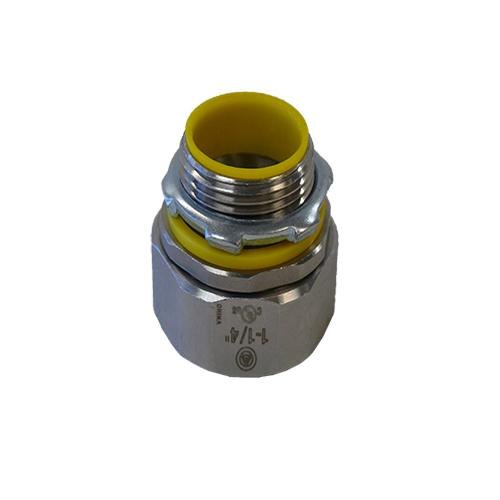

Straight Liquidtight Conduit Connector, Size: 1 1/4 IN, Connection: Tapered threaded male NPT hub., Material: 316 Grade Stainless Steel, Insulation: Insulated Throat, Standard: UL Standard: 514B, cULus Listed: E11853, CSA Standard: C22.2 No.18.3
QTY
Add to Wishlist
  • Applications
  • Features
Used in applications where conditions of installation, operation or maintenance require flexibility or protection from liquids, vapors or solids such as: machine tool building, motor and transformer terminations, robotics assembly, air conditioning equipment installation and Class I, Division 2 wiring.
Reusable ferrule. Long ferrule prevents pullout and tight bend conduit pop-out. Furnished with Locknut and sealing ring.
Superior corrosion resistance
Liquidtight, raintight, oiltight
Suitable for wet locations
Tapered threaded male NPT hub
Compact, slim diameter with small turning radius
UL listed liquidtight flexible metal conduit fittings from 3/8 in thru 1-1/4 in trade sizes are suitable for equipment grounding per NEC article 250.118
Long ferrule prevents pullout and tight bend conduit "pop-out"
Reusable ferrule
