Appleton® STNM-200 Insulated Throat Liquidtight Conduit Connector, 2 in Trade, Straight, Steel
Liquidtight Conduit Connectors
17055
MFG #: STNM200
Appleton™
157.29000
/ ea
- Application: For Connecting To Type A Flexible Nonmetallic Conduit
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: STNM200
- Country of Origin: MX
- Currency: USD
- Dimensions: 3.97 in L x 3.38 in H
- EU RoHS Indicator: C
- Gross Weight Per Pack: 2.2600 lb
- Gross Weight per Pack Metric: 1.02
- Gross Weight UOM Metric: kg
- Height: 3.10 in
- Height [Metric]: 7.8740 cm
- Insulation: Insulated Throat
- Length: 6.50 in
- Length [Metric]: 16.5100 cm
- Series: STNM
- Size: 2 IN in
- Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18, 065178
- Standards: UL 514BUL File No. E14814CSA C22.2 No. 18CSA 065178RoHS CompliantClass I, Div 2
- Suitable For Use With: Type A Flexible Non-Metallic Conduit
- Type: STNM Series Straight Liquidtight Connector
- UNSPSC: 39121420
- UPC 11: 78138123884
- UPC 12: 781381238847
- Width: 4.70 in
- Width [Metric]: 11.9380 cm
- Stock Status: NONSTOCK
- Brand: Appleton™
- Manufacturer: Appleton
- Angle: Straight
- Material: Steel
- Trade Size: 2 in
- Brochure URL - 11043_BRO_appleton_st_liquidtight_fmc_connectors_brochure.pdf(Brochure URL)
- Brochure URL - BRO_appleton_st_liquidtight_fmc_connectors_brochure.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_e5b0bcef9003e30aee2b37f2a19eb2a5dc2d471a2c0bcc8bc0a497f85d49d97d.pdf(Catalog URL)
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)

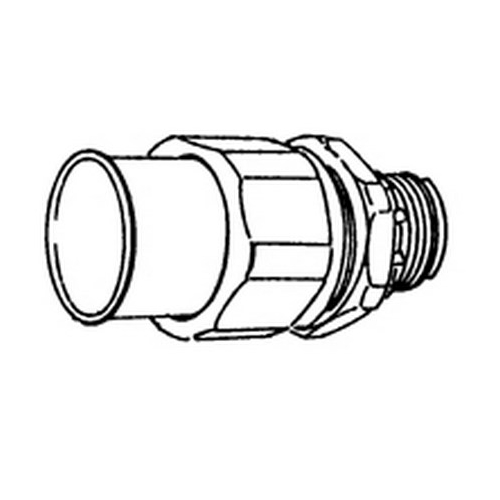

- Line Drawing URL - 11043_STNM-38.jpg(Line Drawing URL)
- Line Drawing URL - STNM-38.jpg(Line Drawing URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - 11043_SPE_AEC_MC007_STNM_Type-A_Flexible_Nonmetallic_Conduit_Connectors.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_AEC_MC007_STNM_Type-A_Flexible_Nonmetallic_Conduit_Connectors.pdf(Spec Sheet URL)
- Warranty 1 URL - WAR_EGS_Terms_Conditions_Brand_Policies.pdf(Warranty 1 URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Connecting To Type A Flexible Nonmetallic Conduit |
| Eliminates common connection problems and assures a liquidtight seal against oil, water, dirt and chemicals; The positive, pull out proof seal formed by a STNM connector begins with its deep-threaded ferrule that bites into the inner wall of the conduit; The sleeve separates the STNM series apart from ordinary connectors; The sleeve is held captive within a compression nut that allows it to move freely and self-align with the conduit having a slightly irregular surface or varying wall thickness; The nut rides only on the sleeve and not on the conduit; It cannot bend or twist the conduit and thereby protects wiring; When fully tightened, the flared sleeve extends beyond the nut, providing additional protection from flexing; Ease of assembly and disassembly of STNM connectors permits make-up of harnesses in advance for fast, simple connections during production line assemblies; |
| Eliminates common connection problems and assures a liquidtight seal against oil, water, dirt and chemicals |
| The positive, pull-out proof seal formed by a STNM connector begins with its deep-threaded ferrule that bites into the inner wall of the conduit |
| Sleeve separates the STNM series apart from ordinary connectors |
| Flared sleeve extends beyond the nut, providing additional protection from flexing |
| Ease of assembly and disassembly permits make-up of harnesses in advance for fast, simple connections during production line assemblies |
| The sleeve is held captive within a compression nut that allows it to move freely and self-align with the conduit having a slightly irregular surface or varying wall thickness |
| The nut rides only on the sleeve and not on the conduit, it cannot bend or twist the conduit and thereby protects wiring, when fully tightened, the fl ared sleeve extends beyond the nut, providing additional protection from flexing |
| 3/4 in L thread |
| STNM connectors with exclusive floating sleeve reduces installation time when connecting to Type A nonmetallic flexible conduit |
