Appleton® STN-125 Insulated Throat Liquidtight Conduit Connector, 1-1/4 in Trade, Straight, Malleable Iron
Liquidtight Conduit Connectors
313458
MFG #: STN-125
Appleton™
45.63000
/ ea
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: STN-125
- Country of Origin: MX
- Currency: USD
- Dimensions: 2.63 in L x 2.31 in H
- EU RoHS Indicator: N
- Gross Weight Per Pack: 1.2500 lb
- Gross Weight per Pack Metric: 0.57
- Gross Weight UOM Metric: kg
- Height: 0.62 in
- Height [Metric]: 15.7480 mm
- Length: 6.50 in
- Length [Metric]: 16.5100 cm
- Series: STN
- Standards: UL 514BUL File No. E14814CSA C22.2 No. 18.3CSA 065178, Class I, Div 2
- Suitable For Use With: Liquidtight Flexible Metallic Conduit
- Type: Liquidtight Oiltight Raintight
- UNSPSC: 39121420
- UPC 11: 78138168490
- UPC 12: 781381684903
- Width: 4.70 in
- Width [Metric]: 11.9380 cm
- Stock Status: NONSTOCK
- Brand: Appleton™
- Manufacturer: Appleton
- Angle: Straight
- Finish: Triple Coated
- Material: Malleable Iron
- Trade Size: 1-1/4 in
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Install Instructions URL - IDW_Appleton_STN_125_Installation_Instructions.pdf(Install Instructions URL)

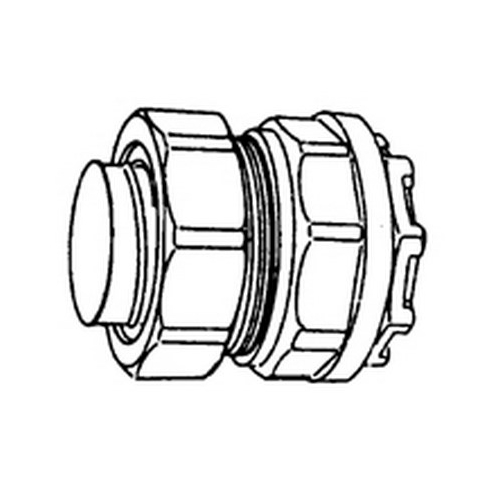

- Line Drawing URL - 11043_STN-125.jpg(Line Drawing URL)
- Line Drawing URL - STN-125.jpg(Line Drawing URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - APLTONE00294_I45_I39.pdf(Spec Sheet URL)
- Features
| Unique long ferrule with more pronounced threads provides over four times UL pull out requirements |
| Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground |
| Flame resistant, insulating insert recessed into hex head wedge adapter protects against wire damage without reduction in throat diameter |
| space saving hex hub wedge adapter that fits nearly flush against inside walls of enclosures, providing maximum wiring room |
| Suitable for wet locations |
| Chromate/epoxy powder coated/zinc electroplated finish |
