Appleton® STB-100SR STB Flexible Straight Liquidtight Conduit Connector With Wire Mesh Strain Relief, 1 in Trade, Steel
Liquidtight Conduit Connectors w/Grips
182629
MFG #: STB100SR
Appleton™
73.91000
/ ea
- Angle: Straight
- Application: For Liquidtight Flexible Metal Conduit To Threaded Hubs
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: STB100SR
- Country of Origin: MX
- Currency: USD
- Dimensions: 1.63 in L x 1.81 in H
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.3300 lb
- Gross Weight per Pack Metric: 0.15
- Gross Weight UOM Metric: kg
- Height: 0.40 in
- Height [Metric]: 10.1600 mm
- Insulation: Insulated Throat
- Length: 11.70 in
- Length [Metric]: 29.7180 cm
- Series: STB
- Size: 1 IN in
- Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
- Standards: UL 514BUL File No. E14814CSA C22.2 No. 18.3CSA 065178Class I, Div 2RoHS Compliant
- Suitable For Use With: Liquidtight Flexible Metallic Conduit
- Type: Insulated Throat Oiltight Liquidtight Raintight
- UNSPSC: 39121420
- UPC 11: 78138151318
- UPC 12: 781381513180
- Width: 5.00 in
- Width [Metric]: 12.7000 cm
- Stock Status: NONSTOCK
- Brand: Appleton™
- Manufacturer: Appleton
- Cable Openings: 1.29 to 1.32 in
- Finish: Zinc Electroplated
- Material: Steel
- Trade Size: 1 in
- Brochure URL - 11043_BRO_appleton_st_liquidtight_fmc_connectors_brochure.pdf(Brochure URL)
- Brochure URL - BRO_appleton_st_liquidtight_fmc_connectors_brochure.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_e5b0bcef9003e30aee2b37f2a19eb2a5dc2d471a2c0bcc8bc0a497f85d49d97d.pdf(Catalog URL)
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)

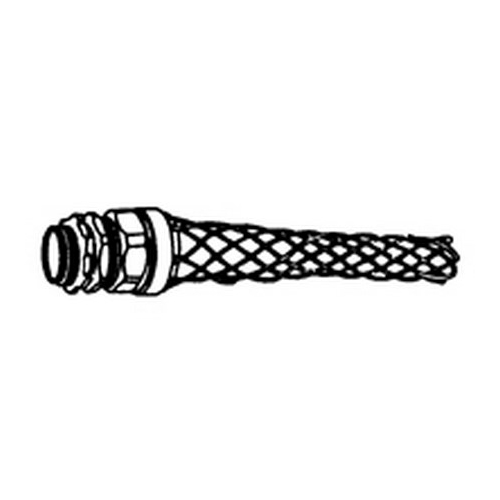

- Line Drawing URL - 11043_STB-38SR.jpg(Line Drawing URL)
- Line Drawing URL - STB-38SR.jpg(Line Drawing URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - 11043_SPE_AEC_MC007_Liquidtight_FMC_Connectors_Wire_Mesh_Strain_Relief.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_AEC_MC007_Liquidtight_FMC_Connectors_Wire_Mesh_Strain_Relief.pdf(Spec Sheet URL)
- Warranty 1 URL - WAR_EGS_Terms_Conditions_Brand_Policies.pdf(Warranty 1 URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Liquidtight Flexible Metal Conduit To Threaded Hubs |
| Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Stainless steel wire mesh prevents pull-out of flexible conduit from fitting and alleviates flexing stress at liquidtight connection; Insulated throat protects against wire damage; Suitable for wet locations; STB Series has full, machined tapered threads (NPT); For use with liquidtight flexible metal conduit subjected to flexure, vibration, motion or strain |
| Unique long ferrule with more pronounced threads provides over four times UL pull out requirements |
| Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground |
| Stainless steel wire mesh prevents pull out of flexible conduit from fitting and alleviates flexing stress at liquidtight connection |
| Suitable for wet locations |
| Full, machined tapered threads (NPT) |
| Three piece design (body, nut and ferrule) for 25% faster installation vs competitive products |
| Compact design clean OEM look |
| Crimpable ferrule secure mechanical grounding |
| Decimally equivalent to conduit sizes reduces errors and transaction costs |
| Wire mesh strain relief to ensure integrity of connections subjected to flexure, vibration, motion or strain |
| Insulated throat protects against wire damage |
| STB series has full, machined tapered threads (NPT) |
| STB type connects to threaded hubs |
| 0.75 in thread length |
