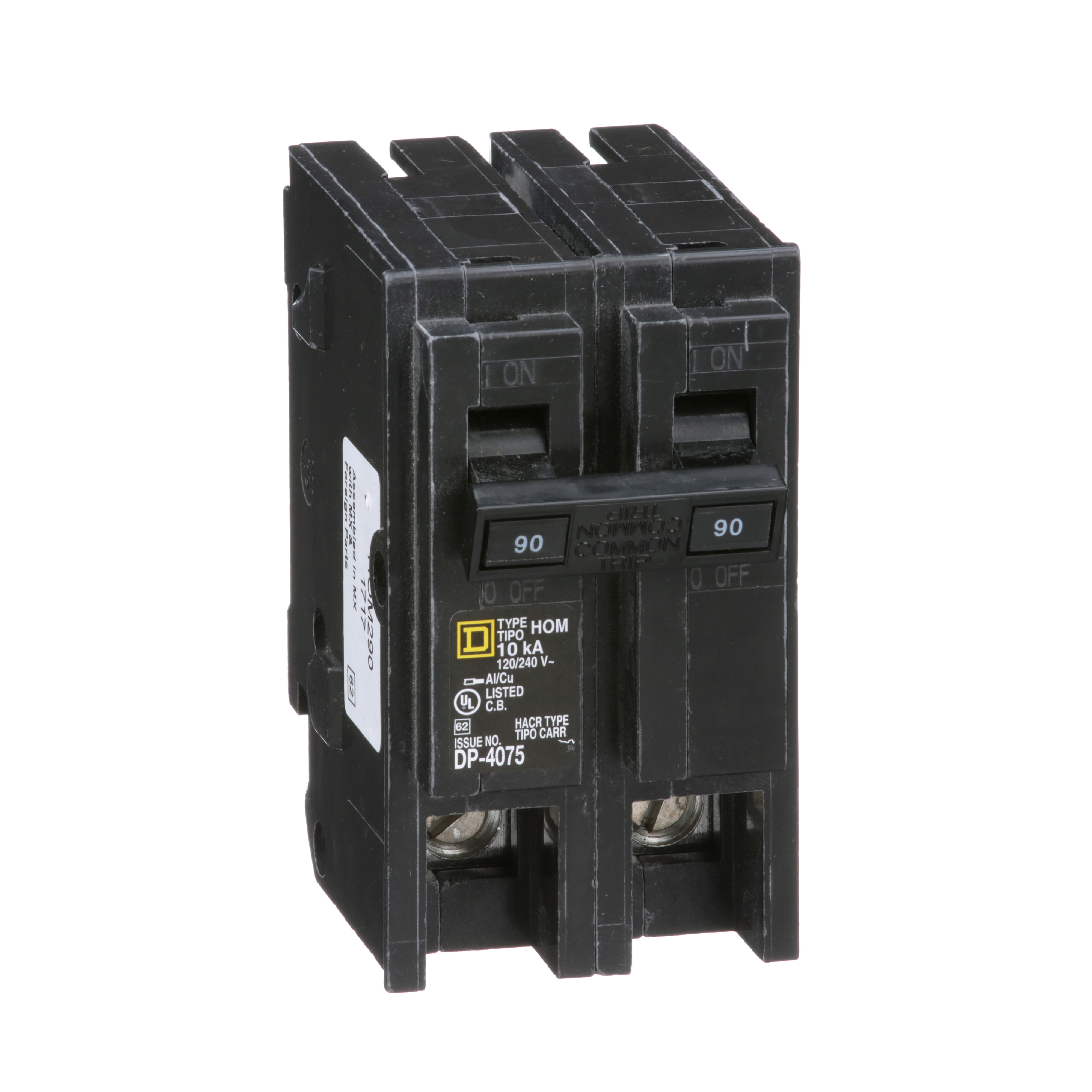

Square D™ HOM290 Type HOM Standard Miniature Circuit Breaker, 120/240 VAC, 90 A, 10 kA Interrupt, 2 Poles
Miniature Circuit Breakers
316068
MFG #: HOM290
Square D™
95.42000
/ ea
- Alternate Catalog Number: HOM290
- Application: PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: HOM290
- Connection: SCREW #4 TO #2/0 AWG(AL/CU)
- Connection Type: Screw
- Country of Origin: MX
- Currency: USD
- Depth: 2.98 in
- Dimensions: 2.98 in L x 2 in W x 3.13 in H
- EU RoHS Indicator: Y
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 29.72
- Gross Volume per Pack Metric: 486.96
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 3.8782 lb
- Gross Weight per Pack Metric: 385.55
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536200040
- Height: 5.8420 in
- Height [Metric]: 8.6360 cm
- Item Group: 00146
- Length: 9.6520 in
- Length [Metric]: 9.6520 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398129&lang=en-us
- Mounting Type: Plug-On
- Operating Temperature: 40 °C
- Phase: 1
- Returnable: Y
- Standard: UL LISTED - CSA CERTIFIED
- Standards: UL Listed, HACR Rated
- Sub Brand: HOMELINE
- Substitute Product Catalog Number: HOM2040M100PC
- Temperature Rating: 104 °F
- Type: Standard
- UNSPSC: 39121603
- UPC 11: 78590106571
- UPC 12: 785901065715
- Warranty Description: Contractual Warranty:Lifetime
- Width: 8.6360 in
- Width [Metric]: 5.8420 cm
- Wire Size: 4 to 2/0 AWG
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 90 A
- Interrupt Rating: 10 kA
- Trip Type: Instantaneous/Long Time/Thermal Magnetic
- Voltage Rating: 120/240 VAC
- Number Of Poles: 2
Square D HOM290 MINIATURE CIRCUIT BREAKER 120/240V 90A,10kA,120/240VAC,90A,HomeLine,Miniature Circuit Breaker,Provides overload and short circuit protection,Screw #4 to #2/0 AWG(Al/Cu),UL Listed - CSA Certified
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8004178360Den&ext=webp(360 Degree View URL)
- Catalog URL - Square_D_HOM115AFI_Catalog.pdf(Catalog URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Install Instructions 1 URL - 11003_KPZTCJHD4Y7N1XSE.pdf(Install Instructions 1 URL)
- 3D Rendering URL - SEproductListV2.html?p=HOM290(3D Rendering URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_0YZ1D9MK3BVJXLE4.pdf(Spec Sheet URL)
- Spec Sheet URL(Spec Sheet URL)
- Video - https://www.youtube.com/embed/aVvIVVo14po(Video)
- Applications
- Features
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| STANDARD |
| Square D is the industry leader in circuit protection with a long-standing reputation for quality and reliability |
| Square D offers Homeline a wide range of circuit breakers to meet all National electric code requirements and provide superior electrical safety |
| Homeline load centers accept plug-on neutral, pigtail, full-size, and tandem circuit breakers on every space |
| Faster installation fewer connections |
| Saves wire fully distributed split neutral bar |
| Frees gutter space no pigtails |
| Easier troubleshooting TIME SAVER diagnostics provide additional circuit information at the touch of a button |
| Faster and easier wiring All spaces accept tandems |
| The Square D Homeline circuit breakers are in a 1 in wide format for 1-pole circuit breakers |
| Cu/Al wire |
