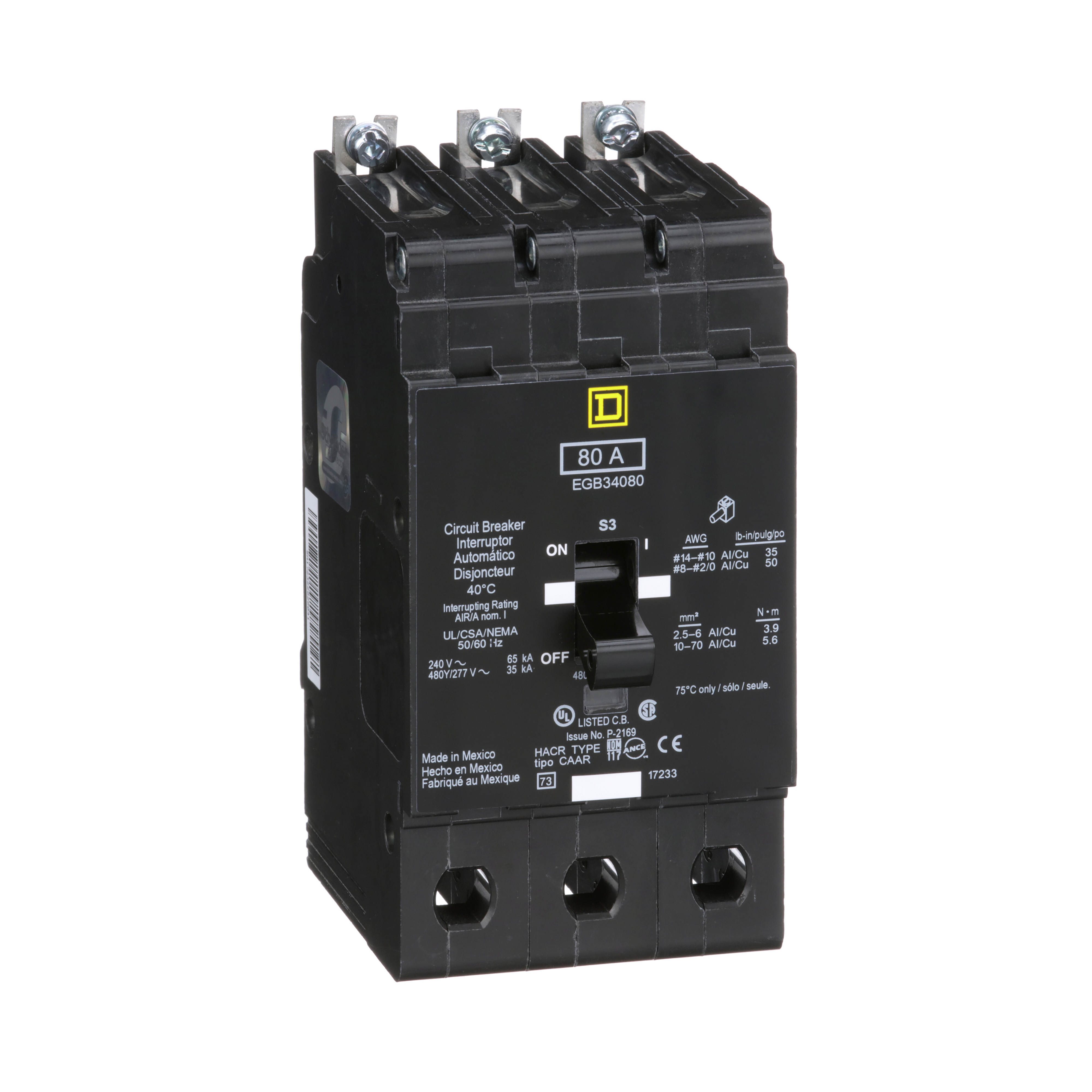

Square D™ EGB34080 Miniature Circuit Breaker, 277/480 VAC, 80 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Miniature Circuit Breakers
96686
MFG #: EGB34080
Square D™
1280.14000
/ ea
- Alternate Catalog Number: EGB34080
- Application: HACR rated; NF panelboard
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: EGB34080
- Connection: LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU)
- Connection Type: Lug
- Country of Origin: MX
- Currency: USD
- Depth: 4.05 in
- Dimensions: 4.05 in L x 0.98 in W x 5.66 in H
- EU RoHS Indicator: Y
- Frame: E
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 299.38
- Gross Volume per Pack Metric: 4905.88
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.0170 lb
- Gross Weight per Pack Metric: 1.63
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200040
- Height: 12.1920 in
- Height [Metric]: 11.7000 cm
- Item Group: 00936
- Length: 25.1460 in
- Length [Metric]: 24.9000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253831&lang=en-us
- Mounting Type: Bolt-On
- Operating Temperature: 40 °C
- Phase: 3
- Returnable: Y
- Standard: UL LISTED - CSA CERTIFIED
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedHACR RatedUL ListedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov
- Sub Brand: E FRAME
- Temperature Rating: 40 °C
- Trip Range: 1000 to 2300 A
- Type: Standard
- UNSPSC: 39121603
- UPC 11: 78590112863
- UPC 12: 785901128632
- Warranty Description: Contractual Warranty:18 months
- Width: 16.0020 in
- Width [Metric]: 16.0000 cm
- Wire Size: 12 to 2/0 AWG, 14 to 2/0 AWG
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 80 A
- Interrupt Rating: 35 kA
- Trip Type: Thermal Magnetic
- Voltage Rating: 277/480Y VAC
- Number Of Poles: 3
Square D EGB34080 MINIATURE CIRCUIT BREAKER 480Y/277V 80A,35kA,80A,Bolt-On,E frame,E-Frame,Hold 1000A - Trip 2300A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8040668360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_FC8OLTS5M7ZUQ90G.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_7e3b07b05c8d33c7fcb64ea19cb7d3fab67f1ecc4293fb50c9b5163a7211476d.pdf(Catalog URL)
- Brochure URL - 11003_HEG1U8LF92ZOSQD5.pdf(Brochure URL)
- 3D Rendering URL - SEproductListV2.html?p=EGB34080(3D Rendering URL)
- Service Manual URL - 11003_6YTNP01EFUSQGWA7.pdf(Service Manual URL)
- Install Instructions URL - files?p_Doc_Ref=48840-097-02(Install Instructions URL)
- Spec Sheet URL - 11003_ZQT5GFU6A9Y7I8OM.pdf(Spec Sheet URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Bulletin URL - 11003_HUL65GPVRKXTJW9Z.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_IBUNZRTP0GWX4CQM.pdf(Tech Bulletin URL)
- Compliance Cert URL - Schneider_Electric_EGB34080_Compliance_Certificate.pdf(Compliance Cert URL)
- Install Instructions 1 URL - 11003_W405MTQD91NUXV7Z.pdf(Install Instructions 1 URL)
- Tech Drawing URL - 11003_E7QBORT8ZXCD06KA.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_QWA5EP3GZSVFI7BO.pdf(Tech Drawing URL)
- Applications
- Features
| HACR rated; NF panelboard |
| BOLT-ON |
| Visi-Trip™ feature |
| For merchandised NF panelboards |
| Optional factory installed electrical accessories include, 120 VAC shunt trip, 1A/1B auxiliary switch and normally open alarm switch |
| Optional handle padlock attachment |
| Optional copper and compression lugs |
| 65 kA at 240 VAC, 35 kA at 480Y/277 VAC interrupt rating |
