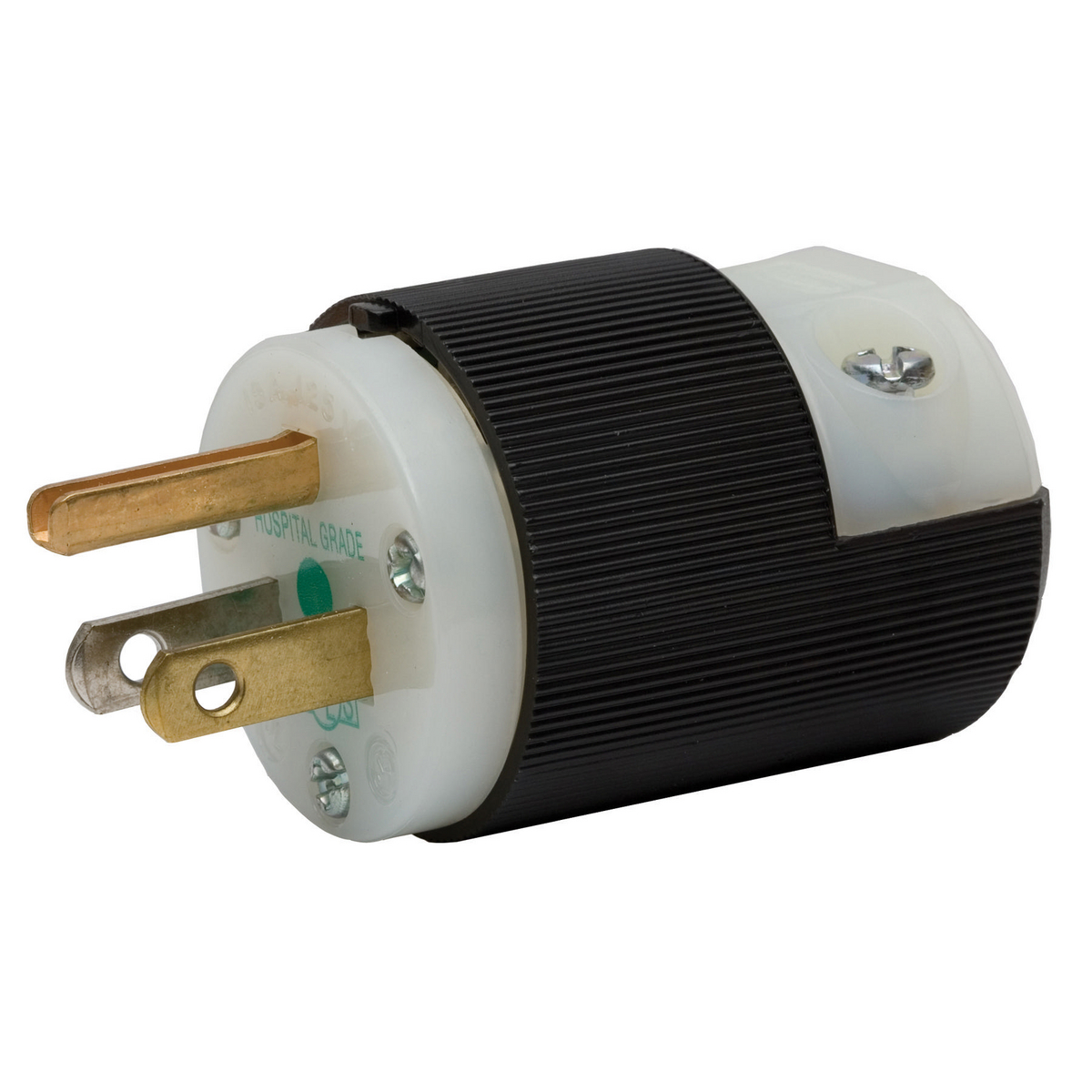

Hubbell Wiring Device-Kellems Insulgrip® HBL8215C Grounding Male Standard Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Straight Blade Plugs
26474
MFG #: HBL8215C
Hubbell Wiring Device-Kellems
25.53000
/ ea
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_FSUQ4CTE97YAVRW6.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1487176764997.pdf(Install Instructions URL)
- Line Drawing URL - 11456_YJZ1DTVE096CQWXS.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_CP9WUFS3AGI48MDV.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL8215C_M7289_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Applications
- Features
| Hospital Grade |
| Standard Product |
| Beveled housing prevents snagging |
| Powerful, off setting cord grips clamp on individual conductors |
| Nylon natural blade holder material |
| Polycarbonate clear retainer material |
| Nylon natural cord clamp material |
| 0.06 in brass contact blades |
| 0.04 in copper alloy ground contact blade |
| #8-32 brass/nickel plated for neutral terminal screw |
| #8-32 brass multiple drive (green) ground screw |
| Withstands 2000 VAC dielectric voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| Terminals identified in accordance with UL 498 (brass, white, green) |
| 18 to 10 AWG solid or stranded copper conductor terminal accommodation |
| Ratings are a permanent part of the device product identification |
| UL 94 Hb or better flammability |
