SKU60205
MFGR #WS202008SS
Your Cost: $2,240.32/ea

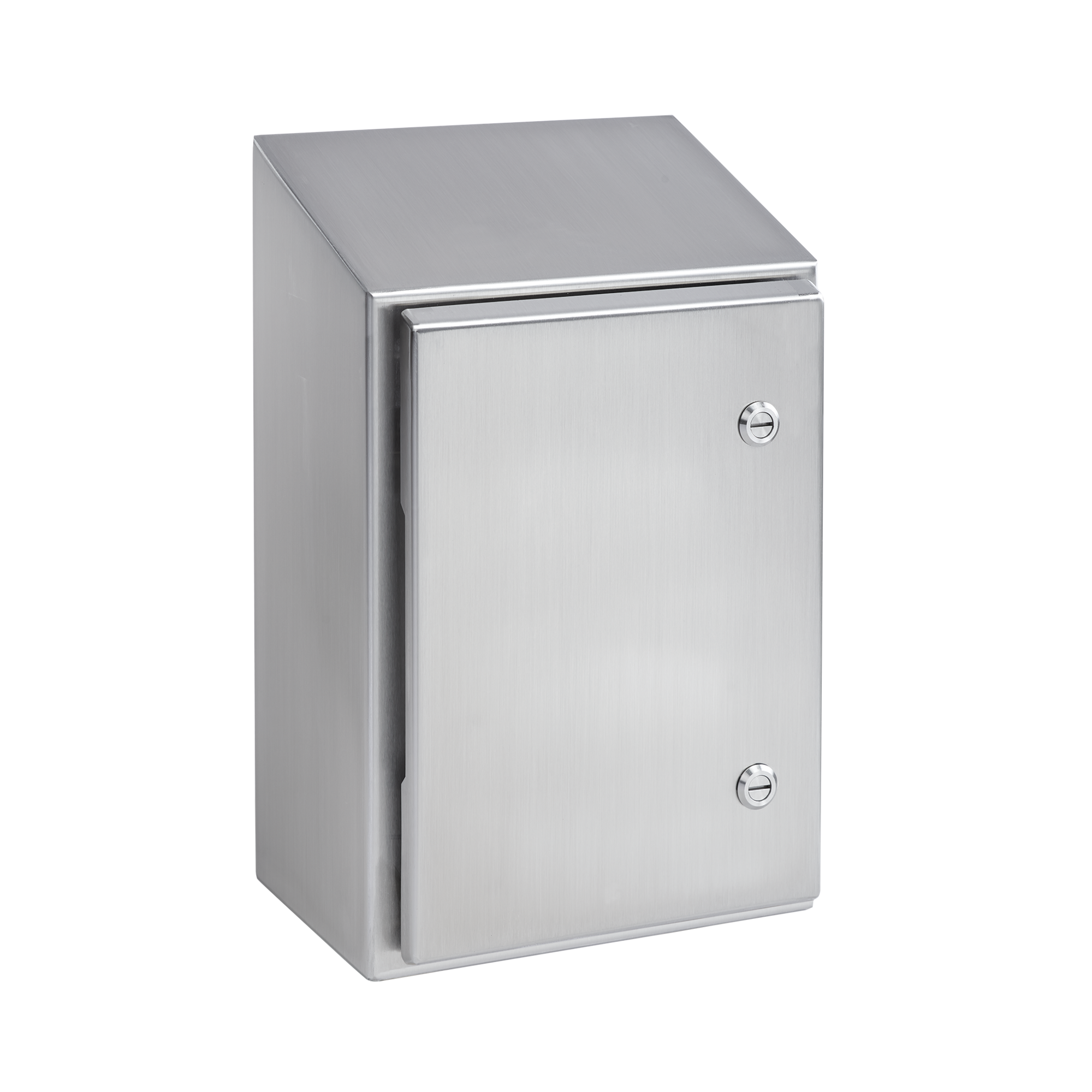

List: nVent HOFFMAN WATERSHED™ Enclosure, Series: WS1, 20 in Length, 20 in Width, 8 in Depth, NEMA 4X, Bullet Hinged/Lift-Off Cover, Lock: Quarter Turn Latch, Wall Mount, 304 Stainless Steel, Brushed
nVent HOFFMAN WATERSHED™ Enclosure, Series: WS1, 20 in Length, 20 in Width, 8 in Depth, NEMA 4X, Bullet Hinged/Lift-Off Cover, Lock: Quarter Turn Latch, Wall Mount, 304 Stainless Steel, Brushed
Application Controls and Drives; Corrosive Environments; Hygienic Environments ARRA Compliant C Assemble to Order No Brand nVent HOFFMAN Buy American Compliant C Catalog Number WS202008SS Color Unpainted Conductive Panel A20P20G Country of Origin MX Currency USD Depth 8 EU RoHS Indicator RCP Finish Brushed #4 Gross Volume Per Pack 3.79 Gross Volume UOM FC Gross Weight Per Pack 41.0000 lb Gross Weight per Pack Metric 18.60 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height 10.5000 in Height [Metric] 26.6700 cm Interchangeable No IP Rating IP66 Item Group WS1 Length 21.5000 in Length [Metric] 73.6600 cm Manufacturer HOFFMAN ENCLOSURES Material 304 Stainless Steel Modification Services Yes NEMA Rating 4X Watertight, corrosion-resistant Number of Latches 2 Package Quantity 1 Panel Type A20P20 Product Family WaterShed Returnable Y Shipping Weight 37 lb Size 20.00x20.00x8.00 in Standards UL 508A Listed, Type 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 4, 4X, 12, File No. E61997, NSF 169, NEMA/EEMAC Type 4, 4X, 12, IEC 60529, RoHS Compliant Stock Status NONSTOCK Sub Brand WaterShed Thickness 14 ga Thickness [Metric] 2 mm Type Stainless Steel Wall Mounted Industrial Enclosures UNSPSC 39121324 UPC 11 78351013111 UPC 12 783510131111 Width 29.0000 in Width [Metric] 54.6100 cm Controls and Drives; Corrosive Environments; Hygienic Environments Manufactured from 14 gauge Type 304 stainless steel, Seams continuously welded and ground smooth , Smooth Type 304 stainless steel lift-off bullet-style hinges, Hinges are shielded by door, Hinged side of door has provisions to allow direct flushing of hinge area, 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure, 170-degree door opening, Door edges are sloped 20-degrees at top and bottom edges to facilitate runoff, Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening, Stainless steel quarter-turn latches furnished with flush slotted insert, Seamless foam-in-place gasket, Self-grounding latch system with double seal, Bonding provision on door; grounding stud on body, Enclosures with ?A? dimension of 16.00 (406 mm) or greater uti Manufactured from 14 ga type 304 stainless steel Seams continuously welded and ground smooth Smooth type 304 stainless steel lift-off bullet-style hinges Hinges are shielded by door Hinged side of door has provisions to allow direct flushing of hinge area 20 deg sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure 170 deg door opening Door edges are sloped 20 deg at top and bottom edges to facilitate runoff Stainless steel quarter-turn latches furnished with flush slotted insert Seamless foam in place gasket Self-grounding latch system with double seal Bonding provision on door, grounding stud on body Furnished hardware kit consists of panel mounting fasteners, grounding hardware and sealing washers for wall mounting holes Bonding provision on door, grounding stud on body Mounting holes in back of body for direct mounting, optional stand-off kit or mounting bracket kit Furnished hardware kit consists of panel mounting fasteners, grounding hardware and sealing washers for wall mounting holes Panel studs fit optional NEMA style panels NO 4 brushed finish
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Controls and Drives; Corrosive Environments; Hygienic Environments |
| ARRA Compliant | C |
| Assemble to Order | No |
| Brand | nVent HOFFMAN |
| Buy American Compliant | C |
| Catalog Number | WS202008SS |
| Color | Unpainted |
| Conductive Panel | A20P20G |
| Country of Origin | MX |
| Currency | USD |
| Depth | 8 |
| EU RoHS Indicator | RCP |
| Finish | Brushed #4 |
| Gross Volume Per Pack | 3.79 |
| Gross Volume UOM | FC |
| Gross Weight Per Pack | 41.0000 lb |
| Gross Weight per Pack Metric | 18.60 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height | 10.5000 in |
| Height [Metric] | 26.6700 cm |
| Interchangeable | No |
| IP Rating | IP66 |
| Item Group | WS1 |
| Length | 21.5000 in |
| Length [Metric] | 73.6600 cm |
| Manufacturer | HOFFMAN ENCLOSURES |
| Material | 304 Stainless Steel |
| Modification Services | Yes |
| NEMA Rating | 4X Watertight, corrosion-resistant |
| Number of Latches | 2 |
| Package Quantity | 1 |
| Panel Type | A20P20 |
| Product Family | WaterShed |
| Returnable | Y |
| Shipping Weight | 37 lb |
| Size | 20.00x20.00x8.00 in |
| Standards | UL 508A Listed, Type 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 4, 4X, 12, File No. E61997, NSF 169, NEMA/EEMAC Type 4, 4X, 12, IEC 60529, RoHS Compliant |
| Stock Status | NONSTOCK |
| Sub Brand | WaterShed |
| Thickness | 14 ga |
| Thickness [Metric] | 2 mm |
| Type | Stainless Steel Wall Mounted Industrial Enclosures |
| UNSPSC | 39121324 |
| UPC 11 | 78351013111 |
| UPC 12 | 783510131111 |
| Width | 29.0000 in |
| Width [Metric] | 54.6100 cm |
| Controls and Drives; Corrosive Environments; Hygienic Environments |
| Manufactured from 14 gauge Type 304 stainless steel, Seams continuously welded and ground smooth , Smooth Type 304 stainless steel lift-off bullet-style hinges, Hinges are shielded by door, Hinged side of door has provisions to allow direct flushing of hinge area, 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure, 170-degree door opening, Door edges are sloped 20-degrees at top and bottom edges to facilitate runoff, Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening, Stainless steel quarter-turn latches furnished with flush slotted insert, Seamless foam-in-place gasket, Self-grounding latch system with double seal, Bonding provision on door; grounding stud on body, Enclosures with ?A? dimension of 16.00 (406 mm) or greater uti |
| Manufactured from 14 ga type 304 stainless steel |
| Seams continuously welded and ground smooth |
| Smooth type 304 stainless steel lift-off bullet-style hinges |
| Hinges are shielded by door |
| Hinged side of door has provisions to allow direct flushing of hinge area |
| 20 deg sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure |
| 170 deg door opening |
| Door edges are sloped 20 deg at top and bottom edges to facilitate runoff |
| Stainless steel quarter-turn latches furnished with flush slotted insert |
| Seamless foam in place gasket |
| Self-grounding latch system with double seal |
| Bonding provision on door, grounding stud on body |
| Furnished hardware kit consists of panel mounting fasteners, grounding hardware and sealing washers for wall mounting holes |
| Bonding provision on door, grounding stud on body |
| Mounting holes in back of body for direct mounting, optional stand-off kit or mounting bracket kit |
| Furnished hardware kit consists of panel mounting fasteners, grounding hardware and sealing washers for wall mounting holes |
| Panel studs fit optional NEMA style panels |
| NO 4 brushed finish |
