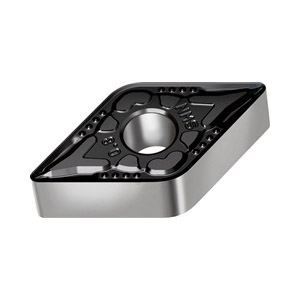

Valenite Tiger-tec® Silver 7053853 Double Sided Negative Turning Insert, DNMG442-NMS WSM20S ANSI, Rhombic, DNMG Insert
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 7053853 Double Sided Negative Turning Insert, DNMG442-NMS WSM20S ANSI, Rhombic, DNMG Insert
SKUPDW~12584068
MFGR #DNMG442-NMSWSM20S
Your Cost: $36.29/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code DNMG442-NMS WSM20S Catalog Number DNMG442-NMSWSM20S Corner Radius 0.8 mm Country of Origin DE Finish PVD-TiAlN+Al2O3 (ZrCN) Coated Gross Weight Per Pack 0.0200 lb Hole Diameter 5.16 mm Included Angle 55 ° ISO Code DNMG150608-NMS WSM20S Relief Angle 0 ° Series Tiger-tec® Silver Sub Brand Tiger-tec® Thickness 6.35 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker NMS Cutting Direction Neutral For Use On Stainless Steel, High Temperature Alloys and Titanium Inscribed Circle 12.7 mm Insert Size 442 Insert Style DNMG Manufacturer's Grade WSM20S Material Carbide Material Grade M, S Maximum Depth of Cut 3.5 mm Rake Negative Seat Size 15 Shape Rhombic Improved coating adhesion prevents chipping and provides stable machining Micro TiCN coating provides excellent wear resistance Hard surface layer - provides advanced wear resistance Strong intra coating adhesion - higher adhesion between each layer with improved crystal structure Micro TiCN layer - higher coating hardness is possible due to a micro TiCN crystal structure, resulting in increased wear resistance CA320 grade improved stability with CVD layer structure with high adhesion and long tool life during heavily interrupted or high speed machining Roughing to heavy interrupted cutting of nodular cast iron 0.08 to 0.202 mm corner point tolerance +/-0.13 mm thickness tolerance 0.05 to 0.152 mm inscribed circle tolerance 0.11 to 0.3 mm feed/rev 15.5 mm cutting edge length
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | DNMG442-NMS WSM20S |
| Catalog Number | DNMG442-NMSWSM20S |
| Corner Radius | 0.8 mm |
| Country of Origin | DE |
| Finish | PVD-TiAlN+Al2O3 (ZrCN) Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hole Diameter | 5.16 mm |
| Included Angle | 55 ° |
| ISO Code | DNMG150608-NMS WSM20S |
| Relief Angle | 0 ° |
| Series | Tiger-tec® Silver |
| Sub Brand | Tiger-tec® |
| Thickness | 6.35 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | NMS |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, High Temperature Alloys and Titanium |
| Inscribed Circle | 12.7 mm |
| Insert Size | 442 |
| Insert Style | DNMG |
| Manufacturer's Grade | WSM20S |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 3.5 mm |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Rhombic |
| Improved coating adhesion prevents chipping and provides stable machining |
| Micro TiCN coating provides excellent wear resistance |
| Hard surface layer - provides advanced wear resistance |
| Strong intra coating adhesion - higher adhesion between each layer with improved crystal structure |
| Micro TiCN layer - higher coating hardness is possible due to a micro TiCN crystal structure, resulting in increased wear resistance |
| CA320 grade improved stability with CVD layer structure with high adhesion and long tool life during heavily interrupted or high speed machining |
| Roughing to heavy interrupted cutting of nodular cast iron |
| 0.08 to 0.202 mm corner point tolerance |
| +/-0.13 mm thickness tolerance |
| 0.05 to 0.152 mm inscribed circle tolerance |
| 0.11 to 0.3 mm feed/rev |
| 15.5 mm cutting edge length |
