Walter (Valentine)

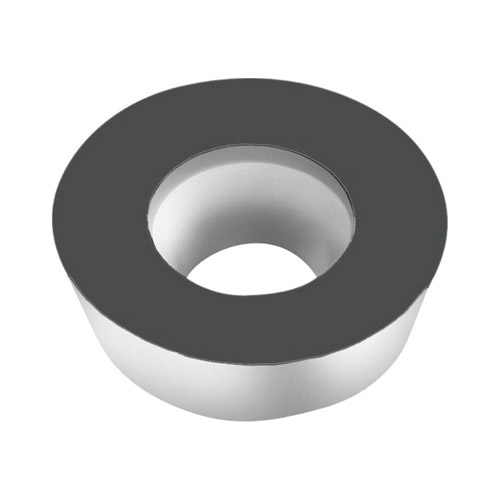

Valenite Tiger-tec® Silver 7028047 Positive Indexable Milling Insert, RDHX07T1M0-A57 WKP25S ANSI, Round, RDHX Insert
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite Tiger-tec® Silver 7028047 Positive Indexable Milling Insert, RDHX07T1M0-A57 WKP25S ANSI, Round, RDHX Insert
SKUPDW~12584674
MFGR #RDHX07T1M0-A57WKP25S
Your Cost: $20.61/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code RDHX07T1M0-A57 WKP25S Catalog Number RDHX07T1M0-A57WKP25S Corner Radius 3.5 mm Finish CVD-TiCN+Al2O3+TiCN Coated Gross Weight Per Pack 1 lb Hand of Insert Neutral Hole Diameter 2.8 mm ISO Code RDHX07T1M0-A57 WKP25S Lead Angle 15 ° Material Application Cast Iron and Steel Series Tiger?tec® Silver Sub Brand Tiger-tec® Thickness 1.98 mm Type Single Sided Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker A57 Inscribed Circle 7 mm Insert Size 0501M0 Insert Style RDHX Manufacturer's Grade WKP25S Material Carbide Material Grade K, P Rake Positive Shape Round Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection For unfavorable machining conditions Maximum cutting edge stability High feed rates Straight border (no wave on the flank face) +/-0.013 mm cutting edge tolerance +/-0.013 mm inscribed circle tolerance +/-0.025 mm thickness tolerance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | RDHX07T1M0-A57 WKP25S |
| Catalog Number | RDHX07T1M0-A57WKP25S |
| Corner Radius | 3.5 mm |
| Finish | CVD-TiCN+Al2O3+TiCN Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 2.8 mm |
| ISO Code | RDHX07T1M0-A57 WKP25S |
| Lead Angle | 15 ° |
| Material Application | Cast Iron and Steel |
| Series | Tiger?tec® Silver |
| Sub Brand | Tiger-tec® |
| Thickness | 1.98 mm |
| Type | Single Sided |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | A57 |
| Inscribed Circle | 7 mm |
| Insert Size | 0501M0 |
| Insert Style | RDHX |
| Manufacturer's Grade | WKP25S |
| Material | Carbide |
| Material Grade | K, P |
| Rake | Positive |
| Shape | Round |
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| For unfavorable machining conditions |
| Maximum cutting edge stability |
| High feed rates |
| Straight border (no wave on the flank face) |
| +/-0.013 mm cutting edge tolerance |
| +/-0.013 mm inscribed circle tolerance |
| +/-0.025 mm thickness tolerance |
