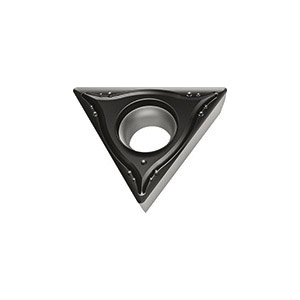

Valenite Tiger-tec® Silver 6357929 Positive Single Sided Turning Insert, TPGT2(1.5)2-MK4 WKK20S ANSI, Triangle
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite Tiger-tec® Silver 6357929 Positive Single Sided Turning Insert, TPGT2(1.5)2-MK4 WKK20S ANSI, Triangle
SKUPDW~12067739
MFGR #TPGT2(1.5)2-MK4WKK20S
Your Cost: $33.47/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code TPGT2(1.5)2-MK4 WKK20S Catalog Number TPGT2(1.5)2-MK4WKK20S Corner Radius 0.8 mm Country of Origin DE Finish CVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 2.8 mm Included Angle 60 deg ISO Code TPGT110208-MK4 WKK20S Relief Angle 11 deg Sub Brand Tiger-tec® Thickness 2.38 mm Type Positive Single Sided Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker MK4 Inscribed Circle 6.35 mm Insert Style TPGT Manufacturer's Grade WKK20S Material Carbide Maximum Depth of Cut 2 mm Shape Triangle 40 to 60 deg double countersink hole 3 cutting edges +/-0.025 mm corner point tolerance +/-0.13 mm thickness tolerance +/-0.025 mm inscribed circle tolerance 0.12 to 0.3 mm feed/rev 10.999 mm cutting edge length 7 deg rake
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | TPGT2(1.5)2-MK4 WKK20S |
| Catalog Number | TPGT2(1.5)2-MK4WKK20S |
| Corner Radius | 0.8 mm |
| Country of Origin | DE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 2.8 mm |
| Included Angle | 60 deg |
| ISO Code | TPGT110208-MK4 WKK20S |
| Relief Angle | 11 deg |
| Sub Brand | Tiger-tec® |
| Thickness | 2.38 mm |
| Type | Positive Single Sided |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | MK4 |
| Inscribed Circle | 6.35 mm |
| Insert Style | TPGT |
| Manufacturer's Grade | WKK20S |
| Material | Carbide |
| Maximum Depth of Cut | 2 mm |
| Shape | Triangle |
| 40 to 60 deg double countersink hole |
| 3 cutting edges |
| +/-0.025 mm corner point tolerance |
| +/-0.13 mm thickness tolerance |
| +/-0.025 mm inscribed circle tolerance |
| 0.12 to 0.3 mm feed/rev |
| 10.999 mm cutting edge length |
| 7 deg rake |
