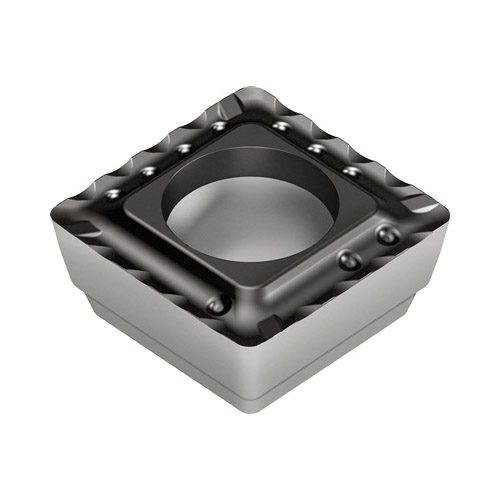

Valenite Tiger-tec® Silver 6171334 Ground Outer Indexable Drilling Insert, P4840P-3R-E67 WKP35S ANSI, Square, 6.5 mm
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 6171334 Ground Outer Indexable Drilling Insert, P4840P-3R-E67 WKP35S ANSI, Square, 6.5 mm
SKUPDW~9956177
MFGR #P4840P-3R-E67WKP35S
Your Cost: $31.18/ea
With Tiger-tec® Silver, Walter offers a coating technology for indexable inserts that is unique worldwide, recognizable by the designation key "-S" at the end of the grade description - The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance at the same time. This enables users to achieve significantly higher cutting data.
With Tiger-tec® Silver, Walter offers a coating technology for indexable inserts that is unique worldwide, recognizable by the designation key "-S" at the end of the grade description - The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance at the same time. This enables users to achieve significantly higher cutting data.
ANSI Code P4840P-3R-E67 WKP35S Catalog Number P4840P-3R-E67WKP35S Country of Origin DE Finish CVD Coated Gross Weight Per Pack 1 lb Hand of Insert Right Included Angle 90 ° ISO Code P4840P-3R-E67 WKP35S Length 6.5 mm Sub Brand Tiger-tec® Thickness 2.8 mm Type Outer Ground Width 6.5 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker E67 Corner Radius 0.4 mm For Use On Cast Iron, High Temperature Alloys, Steel, Stainless Steel and Titanium Alloys Inscribed Circle 6.5 mm Insert Size 3 Insert Style P484 Manufacturer's Grade WKP35S Material Carbide Material Grade K, M, P, S Series Tiger-tec® Silver Shape Square E67 geometry - the special one Special geometry for optimum chip formation For long chipping materials such as St37, stainless materials, materials that are difficult-to cut and aluminum Outer insert - circumference sintered version with corner radius at periphery Circumference fully ground version - wiper insert at periphery provides extremely good surface finish quality Tiger-tec® silver - the cutting tool material for maximum cutting speed and maximum process reliability Outer indexable insert with increased wear resistance thanks to unique aluminum oxide layer, ideal for use as a peripheral cutting edge Tougher than previous Tiger-tec® CVD coatings Optimised residual strength and a combination of toughness and wear resistance make this the first choice for a centre insert Low wear due to extremely smooth rake face 11 deg clearance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | P4840P-3R-E67 WKP35S |
| Catalog Number | P4840P-3R-E67WKP35S |
| Country of Origin | DE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Right |
| Included Angle | 90 ° |
| ISO Code | P4840P-3R-E67 WKP35S |
| Length | 6.5 mm |
| Sub Brand | Tiger-tec® |
| Thickness | 2.8 mm |
| Type | Outer Ground |
| Width | 6.5 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | E67 |
| Corner Radius | 0.4 mm |
| For Use On | Cast Iron, High Temperature Alloys, Steel, Stainless Steel and Titanium Alloys |
| Inscribed Circle | 6.5 mm |
| Insert Size | 3 |
| Insert Style | P484 |
| Manufacturer's Grade | WKP35S |
| Material | Carbide |
| Material Grade | K, M, P, S |
| Series | Tiger-tec® Silver |
| Shape | Square |
| E67 geometry - the special one |
| Special geometry for optimum chip formation |
| For long chipping materials such as St37, stainless materials, materials that are difficult-to cut and aluminum |
| Outer insert - circumference sintered version with corner radius at periphery |
| Circumference fully ground version - wiper insert at periphery provides extremely good surface finish quality |
| Tiger-tec® silver - the cutting tool material for maximum cutting speed and maximum process reliability |
| Outer indexable insert with increased wear resistance thanks to unique aluminum oxide layer, ideal for use as a peripheral cutting edge |
| Tougher than previous Tiger-tec® CVD coatings |
| Optimised residual strength and a combination of toughness and wear resistance make this the first choice for a centre insert |
| Low wear due to extremely smooth rake face |
| 11 deg clearance |
