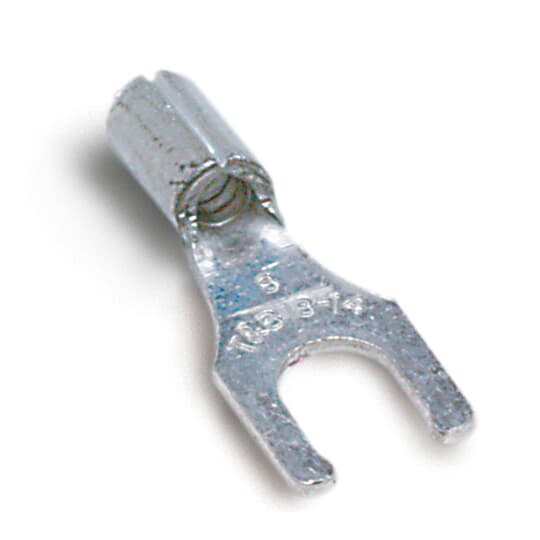

Sta-Kon® C Series Non-Insulated Locking Fork Terminal, 12 to 10 AWG Conductor, 0.85 in L, Brazed Seam Barrel, Copper
Custom_Product_Images_Illustration
Sta-Kon® C Series Non-Insulated Locking Fork Terminal, 12 to 10 AWG Conductor, 0.85 in L, Brazed Seam Barrel, Copper
SKU101869
MFGR #C10-8FL
Your Cost: $1.3157/ea($131.57 / c)
Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.
Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.
Alternate Catalog Number 7TAI029590R0036 ARRA Compliant C Buy American Compliant C Catalog Number C10-8FL Country of Origin US Currency USD EU RoHS Indicator C Gross Volume Per Pack 15.55 Gross Volume per Pack Metric 254.85 Gross Weight Per Pack 0.1300 lb Gross Weight per Pack Metric 0.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 3.50 in Height [Metric] 8.8900 cm Item Group 2A Item Group 2 2AN Length [Metric] 6.6802 cm Returnable C Standard UL E9809 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedUL 94 V-0 Flammability RatedUL File No. E9809 Type Non-Insulated Locking Fork Terminal UNSPSC 39121432 UPC 11 78621080675 UPC 12 786210806754 Voltage Rating 600 V Width 1.63 in Width [Metric] 4.1402 cm Wire Size 12-10 AWG Stock Status NONSTOCK Brand Sta-Kon® Manufacturer Thomas & Betts Color Metallic Length 2.63 in Material Copper Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring. Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring Brazed seam barrel is serrated for high pull-out value WT110M, WT111M, WT112M, WT2000, ERG4002, ERG4005 recommended tools
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 7TAI029590R0036 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | C10-8FL |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 15.55 |
| Gross Volume per Pack Metric | 254.85 |
| Gross Weight Per Pack | 0.1300 lb |
| Gross Weight per Pack Metric | 0.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 3.50 in |
| Height [Metric] | 8.8900 cm |
| Item Group | 2A |
| Item Group 2 | 2AN |
| Length [Metric] | 6.6802 cm |
| Returnable | C |
| Standard | UL E9809 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedUL 94 V-0 Flammability RatedUL File No. E9809 |
| Type | Non-Insulated Locking Fork Terminal |
| UNSPSC | 39121432 |
| UPC 11 | 78621080675 |
| UPC 12 | 786210806754 |
| Voltage Rating | 600 V |
| Width | 1.63 in |
| Width [Metric] | 4.1402 cm |
| Wire Size | 12-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Sta-Kon® |
| Manufacturer | Thomas & Betts |
| Color | Metallic |
| Length | 2.63 in |
| Material | Copper |
| Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring. |
| Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring |
| Brazed seam barrel is serrated for high pull-out value |
| WT110M, WT111M, WT112M, WT2000, ERG4002, ERG4005 recommended tools |
