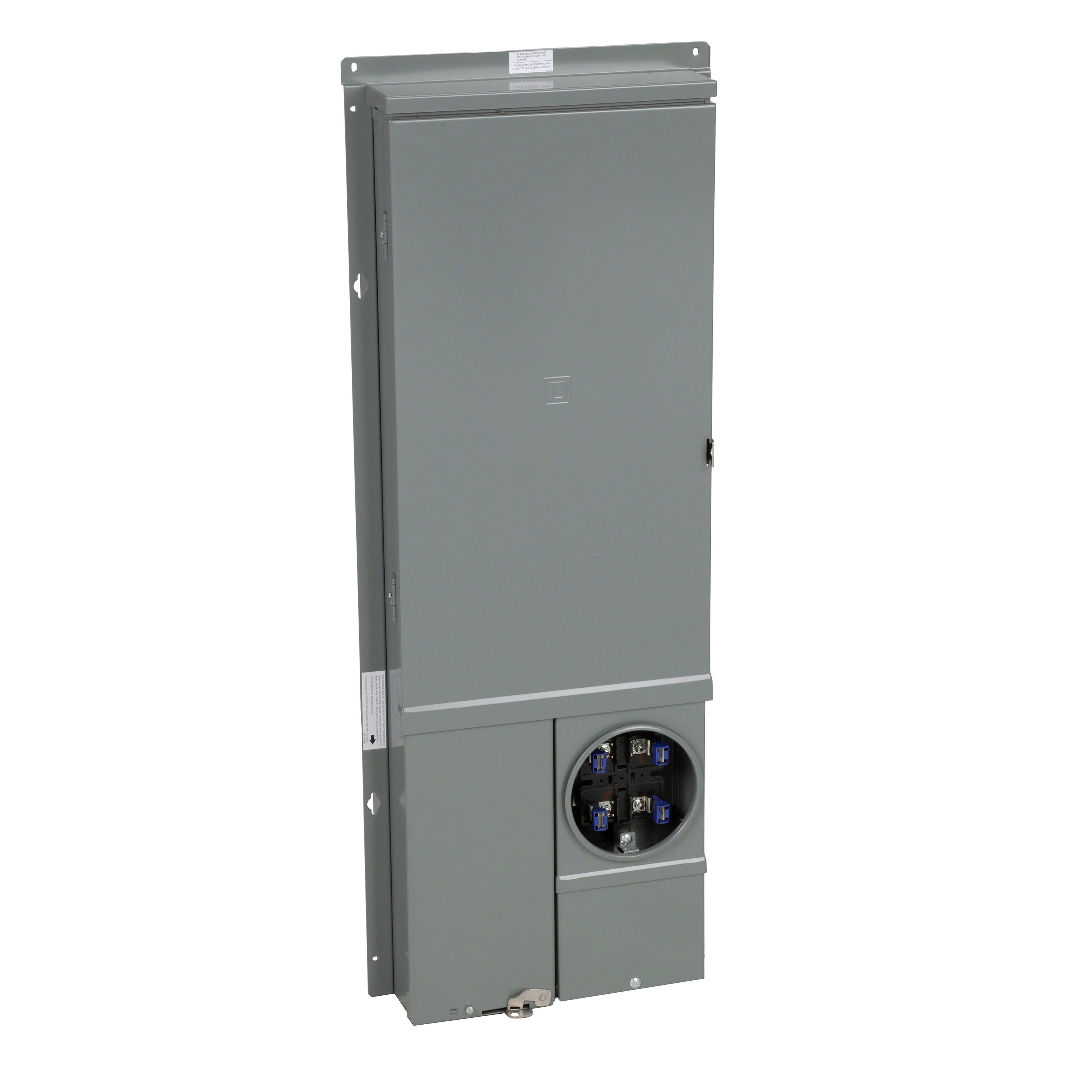

Square D™ HomeLine™ SC3042M200PF 30-Space 42-Circuit All-In-One Field Installed Rainproof Combination Service Entrance Meter Main, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Meter Mains
PDW~11223034
MFG #: SC3042M200PF
Square D™
2064.00000
/ ea
Square D™ HomeLine™ Combination Service Entrance Meter Main, 30-Space 42-Circuit All-In-One Field Installed Rainproof, 120/240 VAC, 200 A, 1, Overhead/Underground Feed, 4 Jaws, 12 to 2/0 AWG, 4 AWG to 250 kcmil, 14 to 2/0 AWG Wire, A-L Hub, Ring Cover, Line/Lug Terminal, Flush Mount, NEMA 3R, 14.85 in W x 3.4 in D x 38.4 in H
- 360 Degree View URL - index.html?pid=11003&id=13948713360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=SC3042M200PF(3D Rendering URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - f843b8250c1175bfcfacb391b82de7ae5cbeb9a3.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_KPZTCJHD4Y7N1XSE.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_8TSG73P64COVQBUD.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_D6FOBEIK10HMXCGP.dwg(Tech Drawing URL)
- Applications
- Features
| Residential Applications |
| NO BYPASS,RINGED |
| Multiple disconnect units can accommodate plug-on surge Breaker™ secondary surge arrester |
| Multiple disconnect units can be converted to semi-flush with addition of flange kit |
| 4 AWG to 250 kcmil Al/Cu line side, 12 to 2/0 AWG Al service ground, 14 to 2/0 AWG Cu service ground lug |
| Without bypass |
| PoN semi-flush mount device |
