Square D™

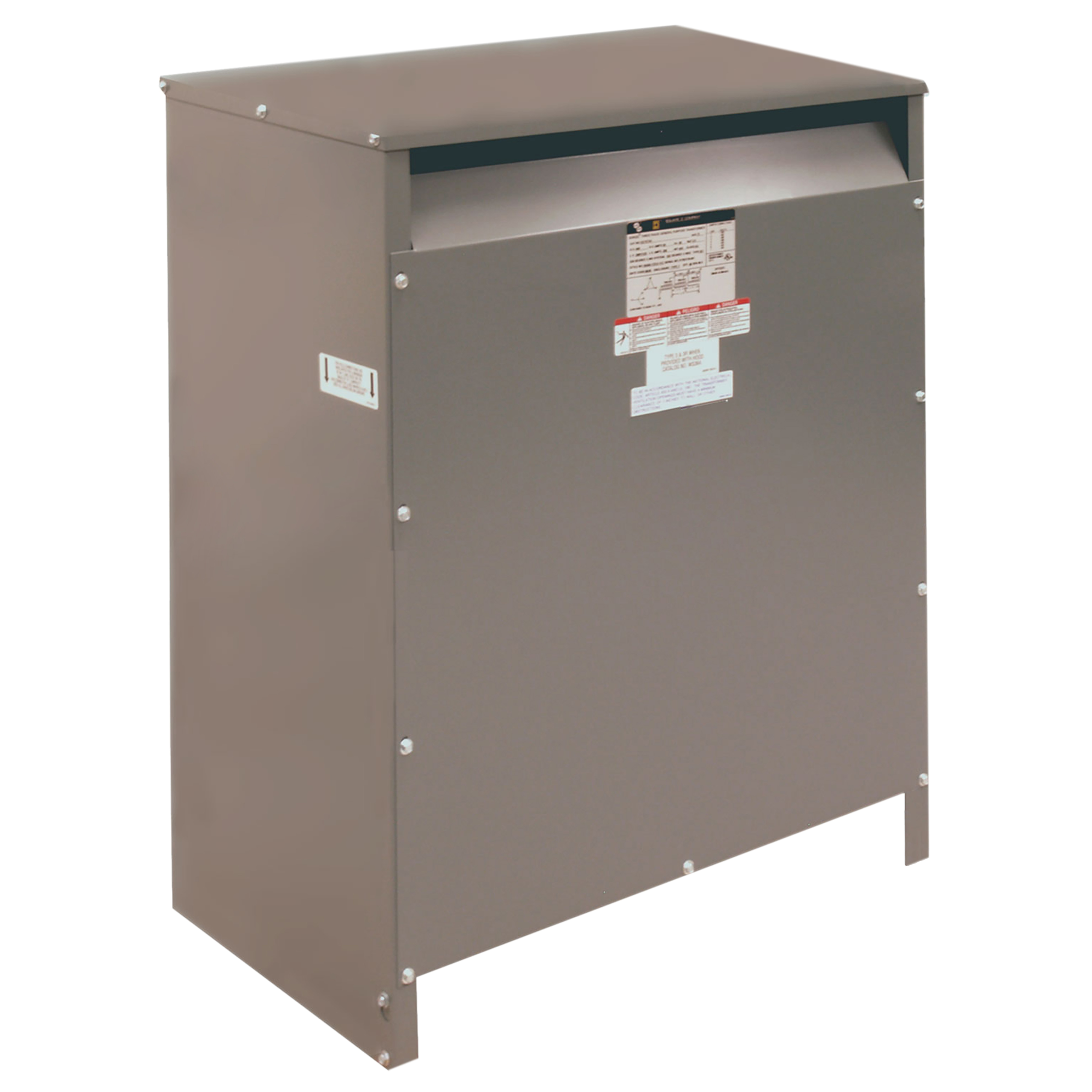

Square D™ EE15S60H Energy Efficient Low Voltage Transformer, 208 V Primary, 120/240 V Secondary, 15 kVA, 1 ph Phase
Custom_Product_Images_Illustration
Square D™
Square D™ EE15S60H Energy Efficient Low Voltage Transformer, 208 V Primary, 120/240 V Secondary, 15 kVA, 1 ph Phase
SKU1390432
MFGR #EE15S60H
Your Cost: $9,771.11/ea
Square D™ Low Voltage Transformer, Energy Efficient, 208 V Primary, 120/240 V Secondary, 15 kVA, 1 ph, 2 Taps, Floor/Ceiling/Wall with Mounting Brackets Mount, 428 deg F, NEMA 2 Enclosure, 150 deg C
Square D™ Low Voltage Transformer, Energy Efficient, 208 V Primary, 120/240 V Secondary, 15 kVA, 1 ph, 2 Taps, Floor/Ceiling/Wall with Mounting Brackets Mount, 428 deg F, NEMA 2 Enclosure, 150 deg C
Alternate Catalog Number EE15S60H ARRA Compliant N Buy American Compliant N Catalog Number EE15S60H Country of Origin US Currency USD Enclosure 17D EU RoHS Indicator Y Gross Weight Per Pack 220.0000 lb Gross Weight per Pack Metric 99.79 Gross Weight UOM Metric kg Height 45.7000 in Item Group 16284 KVA Rating 15 Length 81.2000 in Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=55930811&lang=en-us Mounting Floor - Ceiling or Wall with mounting brackets Wall: WMB361362 - Ceiling: CMB363 Returnable N Temperature Rating 150 Degrees C Type ENERGY EFFICIENT TRANSFORMER UNSPSC 39121001 UPC 11 78590184076 UPC 12 785901840763 Warranty Description Contractual Warranty:18 months Width 55.8000 in Winding ALUMINIUM Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Secondary Voltage 120/240 V ENERGY EFFICIENT TRANSFORMER,ALUMINIUM Smaller total area used, with 3 in clearance from ventilated openings instead of 6 in, reducing the distance from the wall to the front of the device by 3 in Terminals are sized to handle lug kits that are coordinated with other square D™ products, increasing the ease of installation when used with other square D™ equipment Increased wiring compartments provide a bending radius for 250% primary cables and multiple feeds on the secondary All units have 200% neutral to allow customers to feed standard and non-linear panels Decreased weight for easier handling of units Aluminum winding Resin-filled transformers
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | EE15S60H |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EE15S60H |
| Country of Origin | US |
| Currency | USD |
| Enclosure | 17D |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 220.0000 lb |
| Gross Weight per Pack Metric | 99.79 |
| Gross Weight UOM Metric | kg |
| Height | 45.7000 in |
| Item Group | 16284 |
| KVA Rating | 15 |
| Length | 81.2000 in |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=55930811&lang=en-us |
| Mounting | Floor - Ceiling or Wall with mounting brackets Wall: WMB361362 - Ceiling: CMB363 |
| Returnable | N |
| Temperature Rating | 150 Degrees C |
| Type | ENERGY EFFICIENT TRANSFORMER |
| UNSPSC | 39121001 |
| UPC 11 | 78590184076 |
| UPC 12 | 785901840763 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 55.8000 in |
| Winding | ALUMINIUM |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Secondary Voltage | 120/240 V |
| ENERGY EFFICIENT TRANSFORMER,ALUMINIUM |
| Smaller total area used, with 3 in clearance from ventilated openings instead of 6 in, reducing the distance from the wall to the front of the device by 3 in |
| Terminals are sized to handle lug kits that are coordinated with other square D™ products, increasing the ease of installation when used with other square D™ equipment |
| Increased wiring compartments provide a bending radius for 250% primary cables and multiple feeds on the secondary |
| All units have 200% neutral to allow customers to feed standard and non-linear panels |
| Decreased weight for easier handling of units |
| Aluminum winding |
| Resin-filled transformers |
