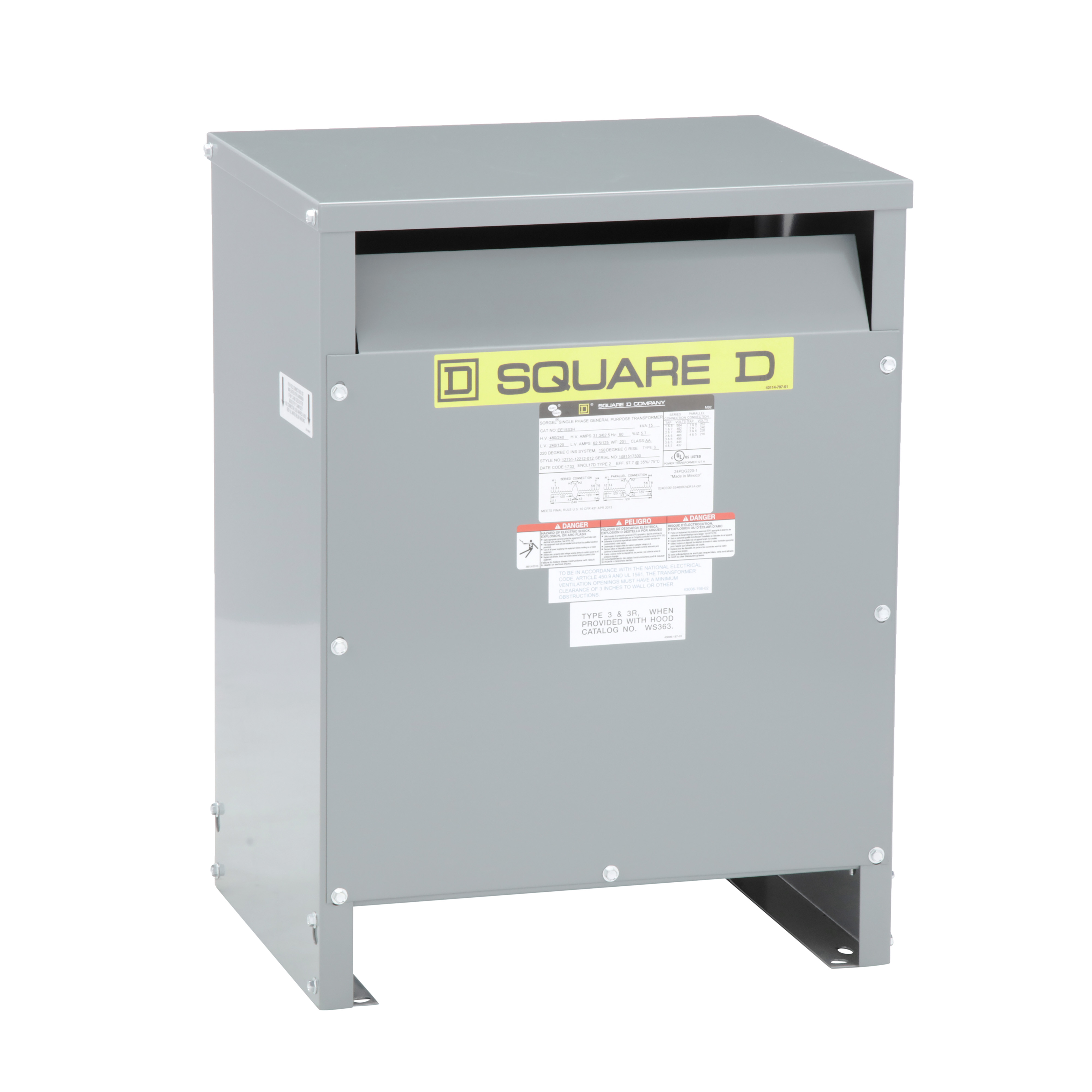

Square D™ EE15S3H Dry Energy Efficient Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 15 kVA, 60 Hz, 1 Phase
Isolation Transformers
312169
MFG #: EE15S3H
Square D™
5261.00000
/ ea
Square D EE15S3H TRFMR DRY 1PH 15KVA 240X480V-120/240V,1 phase,120/240VAC,15 kVA,150 Degrees C,220 deg.C,240 x 480VAC,Energy Efficient Transformer,Floor - Ceiling or Wall with mounting brackets Wall WMB361362 - Ceiling CMB363,NEMA 2,aluminium
- 360 Degree View URL - index.html?pid=11003&id=9627942360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=EE15S3H(3D Rendering URL)
- Brochure URL - 482202b17e9da3c7d6a61d89b7977d1d0715c6f6.pdf(Brochure URL)
- Catalog 1 URL - Square_D_EE15S3H_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - Square_D_EE15S3H_Catalog_1.pdf(Catalog URL)
- Compliance Cert URL - Square_D_EE15S3H_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=6312-0197.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_GBYM0HZ1NDX7PC5F.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_I5X80GJ2HWECKZ3T.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_XR9L32M6SDGAFKVP.zip(Tech Drawing URL)
- User Manual URL - 11003_FVNW427MP6XS9UZ0.pdf(User Manual URL)
- Features
| ENERGY EFFICIENT TRANSFORMER,ALUMINIUM |
| Smaller total area used, with 3 in clearance from ventilated openings instead of 6 in, reducing the distance from the wall to the front of the device by 3 in |
| Terminals are sized to handle lug kits that are coordinated with other square D™ products, increasing the ease of installation when used with other square D™ equipment |
| Increased wiring compartments provide a bending radius for 250% primary cables and multiple feeds on the secondary |
| All units have 200% neutral to allow customers to feed standard and non-linear panels |
| 220 deg C UL listed insulation system |
| Decreased weight for easier handling of units |
| Aluminum windings |
| Painted steel |
| Floor ceiling or wall with mounting brackets WMB361362 wall - CMB363 ceiling |
