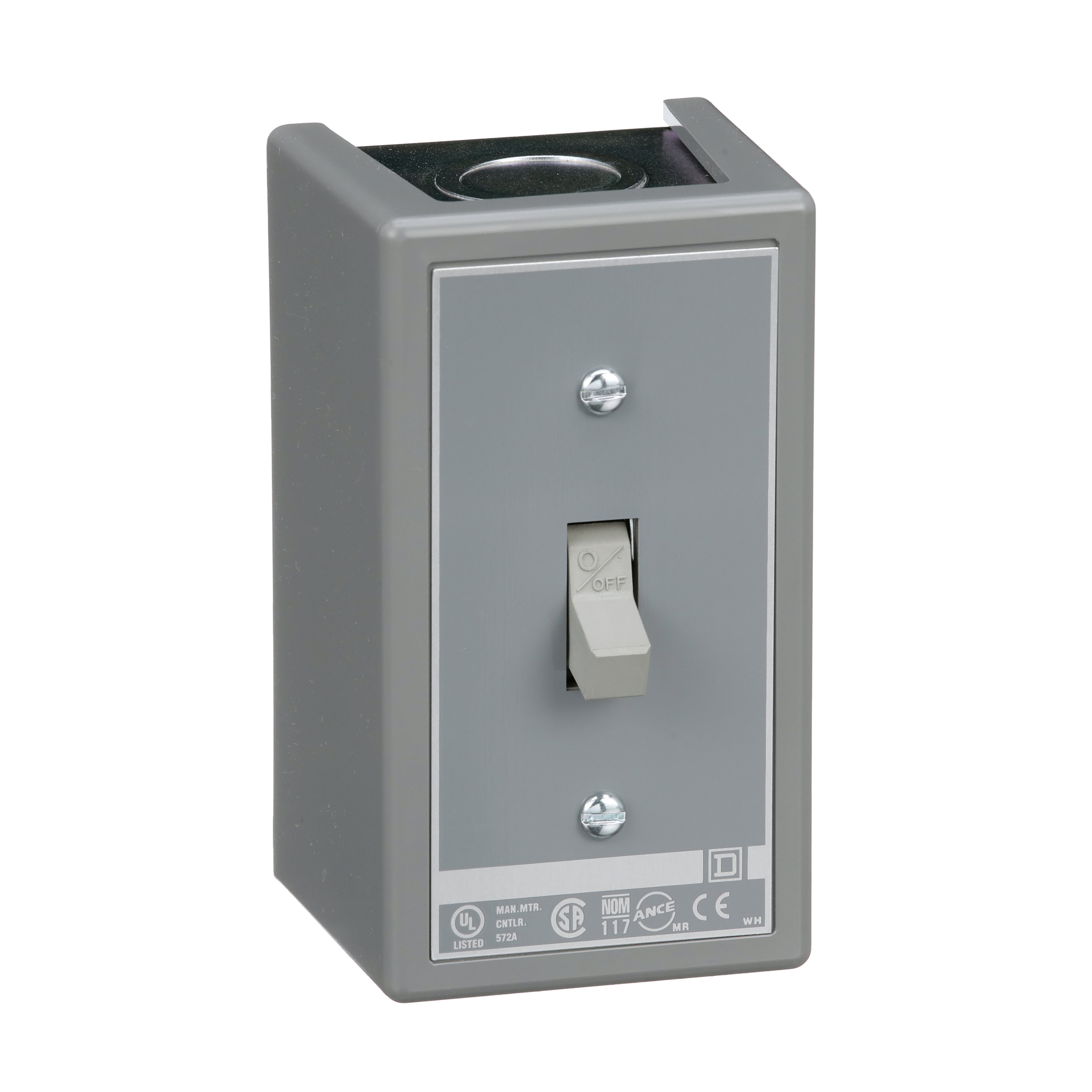

Square D™ 2510KG6 Type K Non-Reversing Manual Switch, 3 Poles, NEMA 1 Enclosure
Custom_Product_Images_Illustration
Square D™ 2510KG6 Type K Non-Reversing Manual Switch, 3 Poles, NEMA 1 Enclosure
SKU244599
MFGR #2510KG6
Your Cost: $159.54/ea
List: Square D 2510KG6 MANUAL SWITCH 600VAC K+OPTIONS,0.5 and 0.75 Inch Knockouts (top and bottom) Screw Clamp,2HP115VAC - 7.5HP230VAC - 15HP460VAC - 20HP575VAC,3-Phase,30A,3P,600VAC/230VDC,K,NEMA 1,Non-Reversing Manual Switch,Provides manual ON/OFF control
Square D 2510KG6 MANUAL SWITCH 600VAC K+OPTIONS,0.5 and 0.75 Inch Knockouts (top and bottom) Screw Clamp,2HP115VAC - 7.5HP230VAC - 15HP460VAC - 20HP575VAC,3-Phase,30A,3P,600VAC/230VDC,K,NEMA 1,Non-Reversing Manual Switch,Provides manual ON/OFF control
Alternate Catalog Number 2510KG6 Application PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 2510KG6 Connection 0.5 AND 0.75 INCH KNOCKOUTS (TOP AND BOTTOM) SCREW CLAMP Country of Origin MX Currency USD Current Rating 30 A Depth 2.75 in Enclosure NEMA 1 Environmental Conditions SINGLE UNIT METAL BOX - GENERAL PURPOSE EU RoHS Indicator Y Gross Volume Per Pack 36.66 Gross Volume per Pack Metric 600.75 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.8900 lb Gross Weight per Pack Metric 403.70 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536504000 Height 6.9000 in Height [Metric] 6.9000 cm Item Group 21102 Length 12.7000 in Length [Metric] 12.7000 cm Manufacturer Schneider Electric Number Of Phases 3 Number Of Poles 3 Phase 3-Phase Returnable Y Size 2.44 IN,2.75 IN,4.25 IN in Standard UL LISTED - CSA CERTIFIED - CE MARKED Standards ARRA, Buy American Act Compliant, CE Certified, CSA File No. LR25490 Class 3211-05, UL File E42243 CCN NLRV Stock Status NONSTOCK Sub Brand K Substitute Product Catalog Number 9999PL12G Type NON-REVERSING MANUAL SWITCH UNSPSC 39121521 UPC 11 78590119271 UPC 12 785901192718 Voltage Rating 600//230 VAC//VDC Warranty Description Contractual Warranty:18 months Width 7.9000 in Width [Metric] 7.9000 cm PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY NO INDICATOR 14 to 10 AWG (copper) gauge 0.5, 0.75 in knock outs, top and bottom cable entry 1, 1.5, 2, 7.5, 15 and 20 hp power rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 2510KG6 |
| Application | PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 2510KG6 |
| Connection | 0.5 AND 0.75 INCH KNOCKOUTS (TOP AND BOTTOM) SCREW CLAMP |
| Country of Origin | MX |
| Currency | USD |
| Current Rating | 30 A |
| Depth | 2.75 in |
| Enclosure | NEMA 1 |
| Environmental Conditions | SINGLE UNIT METAL BOX - GENERAL PURPOSE |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 36.66 |
| Gross Volume per Pack Metric | 600.75 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.8900 lb |
| Gross Weight per Pack Metric | 403.70 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 6.9000 in |
| Height [Metric] | 6.9000 cm |
| Item Group | 21102 |
| Length | 12.7000 in |
| Length [Metric] | 12.7000 cm |
| Manufacturer | Schneider Electric |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Phase | 3-Phase |
| Returnable | Y |
| Size | 2.44 IN,2.75 IN,4.25 IN in |
| Standard | UL LISTED - CSA CERTIFIED - CE MARKED |
| Standards | ARRA, Buy American Act Compliant, CE Certified, CSA File No. LR25490 Class 3211-05, UL File E42243 CCN NLRV |
| Stock Status | NONSTOCK |
| Sub Brand | K |
| Substitute Product Catalog Number | 9999PL12G |
| Type | NON-REVERSING MANUAL SWITCH |
| UNSPSC | 39121521 |
| UPC 11 | 78590119271 |
| UPC 12 | 785901192718 |
| Voltage Rating | 600//230 VAC//VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.9000 in |
| Width [Metric] | 7.9000 cm |
| PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| NO INDICATOR |
| 14 to 10 AWG (copper) gauge |
| 0.5, 0.75 in knock outs, top and bottom cable entry |
| 1, 1.5, 2, 7.5, 15 and 20 hp power rating |
