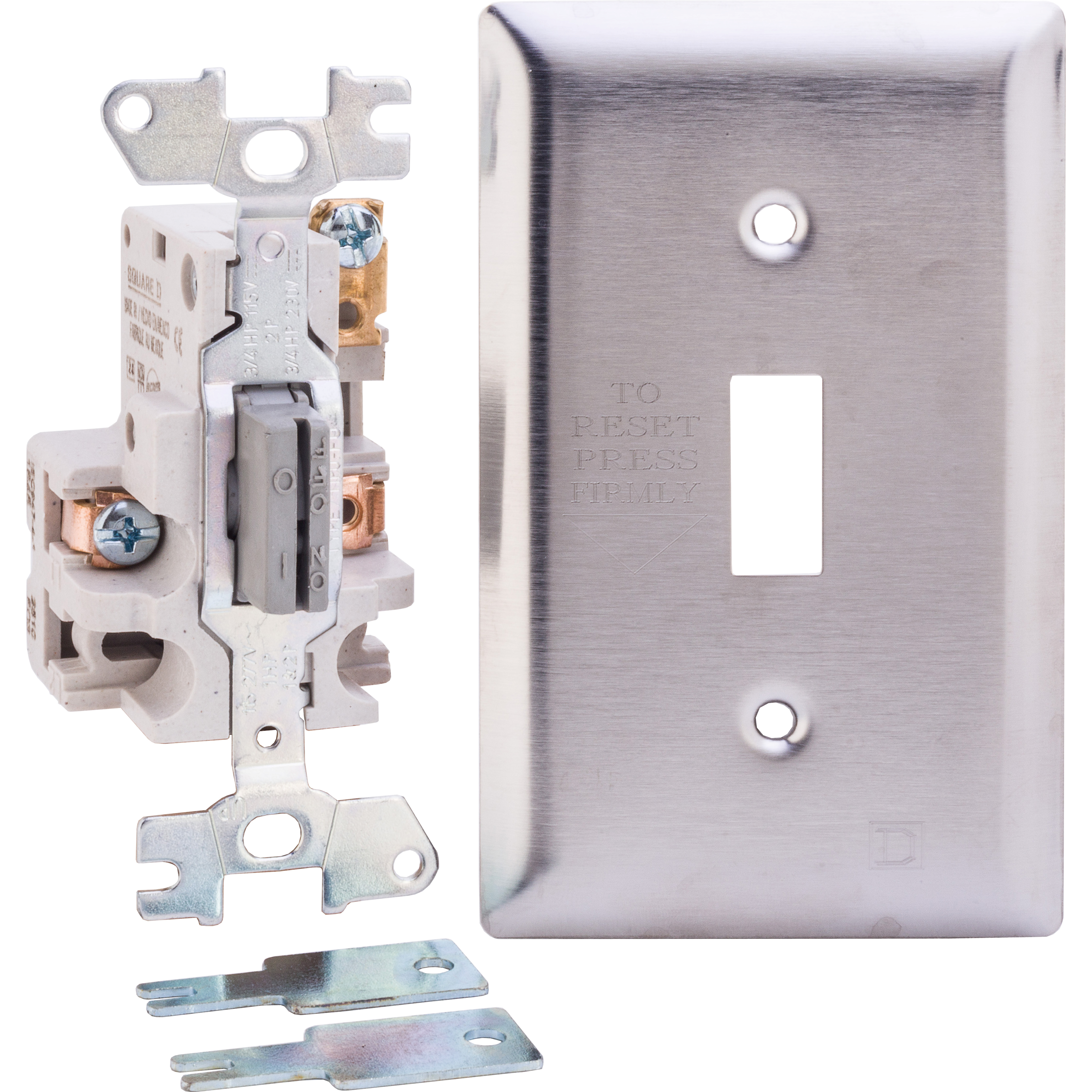

Square D™ 2510FS3 MANUAL STARTER 277VAC
SKUPDW~6429160
MFGR #2510FS3
Price Not Available
Square D,MANUAL STARTER 277VAC,1 hp 277 V AC-1 hp 115 V AC-1 hp 230 V AC,1 phase,16 A,1P,277 V AC,CE, CSA, UL listed,F,Manual,Non reversing,Screw clamp terminals,Single Unit Manual Starter,not rated (flush plate) stainless steel standard size
Square D,MANUAL STARTER 277VAC,1 hp 277 V AC-1 hp 115 V AC-1 hp 230 V AC,1 phase,16 A,1P,277 V AC,CE, CSA, UL listed,F,Manual,Non reversing,Screw clamp terminals,Single Unit Manual Starter,not rated (flush plate) stainless steel standard size
Amperage Rating 16 A Application NON REVERSING ARRA Compliant C Buy American Compliant C Catalog Number 2510FS3 Connection Screw clamp terminals Connection Type Screw Clamp Control Type Removable Key Country of Origin MX Dimensions 2.75 in W x 2.19 in D x 4.5 in H EU RoHS Indicator N Gross Weight Per Pack 0.4500 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Item Group 21101 Material Stainless Steel Motor Power 1 hp at 115/230/277 VAC Number Of Poles 1 Operating Temperature 0 to 40 deg C Ambient Overload Relay Thermal Melting Alloy Phase 1 pH Reset Type Thermal Melting Alloy Returnable N Series 2510 Size 2.19 IN,2.75 IN,4.5 IN Standard UL LISTED FILE E42243 CCN NLRV-CSA LR25490 CLASS 3211 05 Sub Brand F UNSPSC 39121521 UPC 11 785901554271 UPC 12 785901554271 Voltage Rating 277 VAC Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Type Type F NON REVERSING NO INDICATOR Small size, economical Simple design Easy to install Long lasting reliability Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower Standard stainless steel flush plate
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 16 A |
| Application | NON REVERSING |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 2510FS3 |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Control Type | Removable Key |
| Country of Origin | MX |
| Dimensions | 2.75 in W x 2.19 in D x 4.5 in H |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.4500 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Item Group | 21101 |
| Material | Stainless Steel |
| Motor Power | 1 hp at 115/230/277 VAC |
| Number Of Poles | 1 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Thermal Melting Alloy |
| Phase | 1 pH |
| Reset Type | Thermal Melting Alloy |
| Returnable | N |
| Series | 2510 |
| Size | 2.19 IN,2.75 IN,4.5 IN |
| Standard | UL LISTED FILE E42243 CCN NLRV-CSA LR25490 CLASS 3211 05 |
| Sub Brand | F |
| UNSPSC | 39121521 |
| UPC 11 | 785901554271 |
| UPC 12 | 785901554271 |
| Voltage Rating | 277 VAC |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Type | Type F |
| NON REVERSING |
| NO INDICATOR |
| Small size, economical |
| Simple design |
| Easy to install |
| Long lasting reliability |
| Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower |
| Standard stainless steel flush plate |
