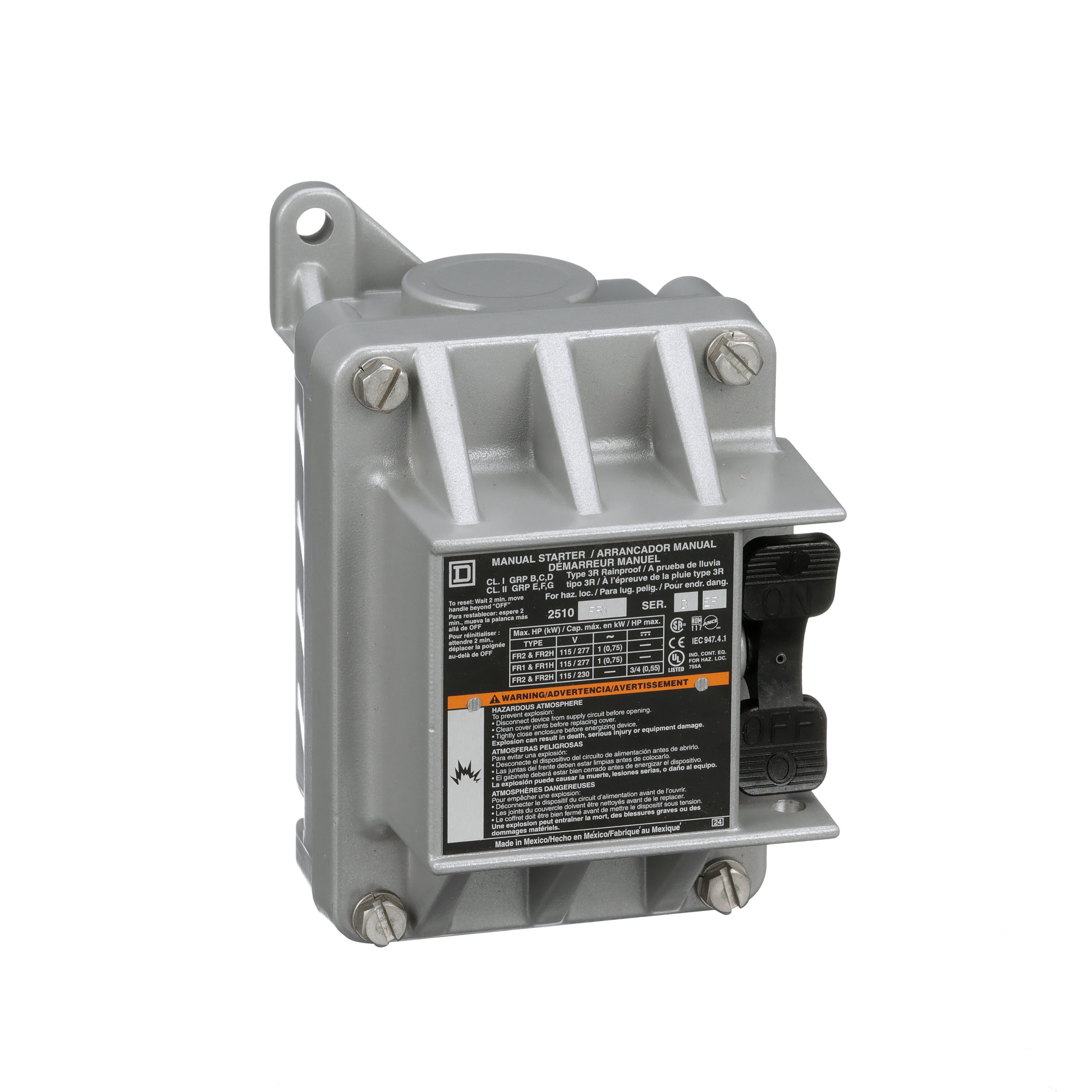

Square D™ 2510FR2 MANUAL STARTER 277VAC
Custom_Product_Images_Illustration
Square D™
Square D™ 2510FR2 MANUAL STARTER 277VAC
SKU33810
MFGR #2510FR2
Your Cost: $357.41/ea
List: Square D 2510FR2 MANUAL STARTER 277VAC,0.75 NPT (bottom) Screw Clamp,1-Phase,16A,1HP115/230/277VAC - 0.75HP115/230VDC,2P,600 Vac/250 Vdc,F,NEMA 3R/7/9,Non-Reversing Manual Starter,Provides overload protection as well as manual ON/OFF control for small m
Square D 2510FR2 MANUAL STARTER 277VAC,0.75 NPT (bottom) Screw Clamp,1-Phase,16A,1HP115/230/277VAC - 0.75HP115/230VDC,2P,600 Vac/250 Vdc,F,NEMA 3R/7/9,Non-Reversing Manual Starter,Provides overload protection as well as manual ON/OFF control for small m
Alternate Catalog Number 2510FR2 Amperage Rating 16 A Application PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. ARRA Compliant N Buy American Compliant N Catalog Number 2510FR2 Connection 0.75 NPT (BOTTOM) SCREW CLAMP Connection Type Screw Clamp Control Type LOCK-OFF Toggle Switch Country of Origin MX Currency USD Current Rating 16 A Depth 4.35 in Dimensions 3.95 in W x 4.35 in D x 6.36 in H EU RoHS Indicator Y Gross Volume Per Pack 188.16 Gross Volume per Pack Metric 3083.38 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.5900 lb Gross Weight per Pack Metric 1.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 12.1920 in Height [Metric] 12.1920 cm Item Group 21101 Length 17.7800 in Length [Metric] 17.7800 cm Material Aluminum Motor Power 0.75 hp at 115/230 VDC/1 hp at 115/277 VAC/2 hp at 230 VAC Number Of Phases 1 Number Of Poles 2 Operating Temperature 0 to 40 deg C Ambient Overload Relay Thermal Melting Alloy Phase 1 pH Reset Type Thermal Melting Alloy Returnable Y Series 2510 Size 3.95 IN,4.35 IN,6.36 IN in Standard UL LISTED - CSA CERTIFIED - CE MARKED Sub Brand F Substitute Product Catalog Number A.71 UNSPSC 39121521 UPC 11 78590155421 UPC 12 785901554219 Voltage Rating 600 VAC/250 VDC Warranty Description Contractual Warranty:18 months Width 14.2240 in Width [Metric] 14.2240 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Enclosure Type NEMA 3R/7/9 Type Type F PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. NO INDICATOR Small size, economical Simple design Easy to install Long lasting reliability Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower Two-pole starters may also be used with DC NEMA 3R/7/9
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 2510FR2 |
| Amperage Rating | 16 A |
| Application | PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 2510FR2 |
| Connection | 0.75 NPT (BOTTOM) SCREW CLAMP |
| Connection Type | Screw Clamp |
| Control Type | LOCK-OFF Toggle Switch |
| Country of Origin | MX |
| Currency | USD |
| Current Rating | 16 A |
| Depth | 4.35 in |
| Dimensions | 3.95 in W x 4.35 in D x 6.36 in H |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 188.16 |
| Gross Volume per Pack Metric | 3083.38 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.5900 lb |
| Gross Weight per Pack Metric | 1.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 12.1920 in |
| Height [Metric] | 12.1920 cm |
| Item Group | 21101 |
| Length | 17.7800 in |
| Length [Metric] | 17.7800 cm |
| Material | Aluminum |
| Motor Power | 0.75 hp at 115/230 VDC/1 hp at 115/277 VAC/2 hp at 230 VAC |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Thermal Melting Alloy |
| Phase | 1 pH |
| Reset Type | Thermal Melting Alloy |
| Returnable | Y |
| Series | 2510 |
| Size | 3.95 IN,4.35 IN,6.36 IN in |
| Standard | UL LISTED - CSA CERTIFIED - CE MARKED |
| Sub Brand | F |
| Substitute Product Catalog Number | A.71 |
| UNSPSC | 39121521 |
| UPC 11 | 78590155421 |
| UPC 12 | 785901554219 |
| Voltage Rating | 600 VAC/250 VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 14.2240 in |
| Width [Metric] | 14.2240 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Enclosure Type | NEMA 3R/7/9 |
| Type | Type F |
| PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. |
| NO INDICATOR |
| Small size, economical |
| Simple design |
| Easy to install |
| Long lasting reliability |
| Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower |
| Two-pole starters may also be used with DC |
| NEMA 3R/7/9 |
