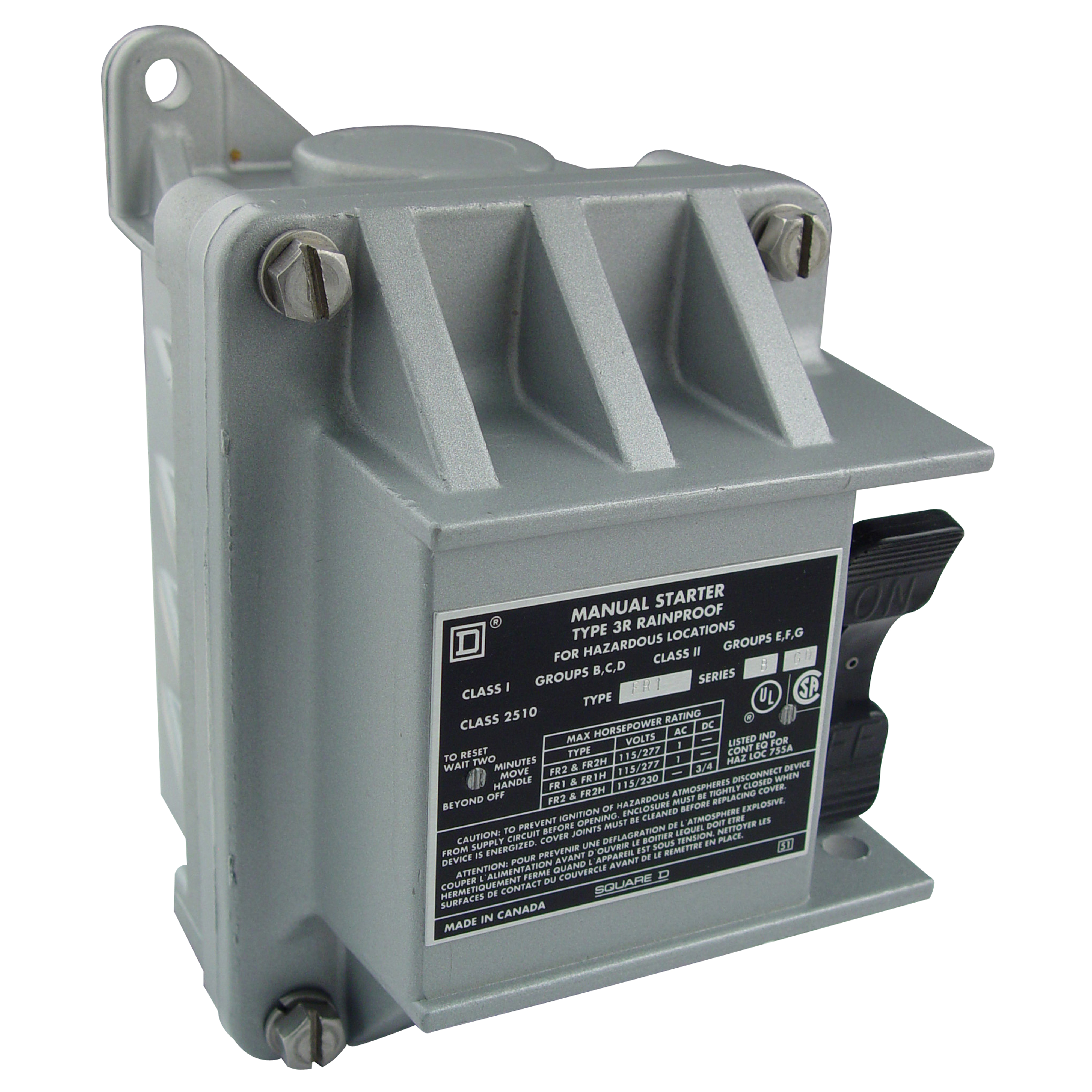

Square D™ 2510FR1H Type F Single Unit Manual Starter, 1 Pole, NEMA 3R/7/9 Enclosure
Manual Starters
410575
MFG #: 2510FR1H
Square D™
397.19000
/ ea
Square D™ Single Unit Manual Starter, Type F, Series: 2510, 600 VAC/250 VDC, 16 A, 1 hp at 115/230/277 VAC Motor, 1 Pole, Thermal Melting Alloy Reset, 1 ph, Screw Clamp, LOCK-OFF Toggle Switch Control, NEMA 3R/7/9, Aluminum, 0 to 40 deg C Ambient Operating, 3.95 in W x 4.35 in D x 6.36 in H
- Brochure URL - 11003_KHM5A8QDVJSLR0YN.pdf(Brochure URL)
- Brochure URL - 11003_RV0N78ZHFGT9KU45.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=Manual Motor Switch.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=25100016.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_OH0VF4YXTMUG6NDW.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_4GEF3ABROW7NTJS0.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_6HUSL7VTBD8A4K5G.dwg(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=30068-447.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/w4BA4LqyfMo(Video)
- Applications
- Features
| Fans, conveyors, pumps and small machine tools, provides overload protection as well as manual on/off control for small motors in a variety of industrial and commercial installations |
| Small size, economical |
| Simple design |
| Easy to install |
| Long lasting reliability |
| Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower |
| NEMA 3R/7/9 |
