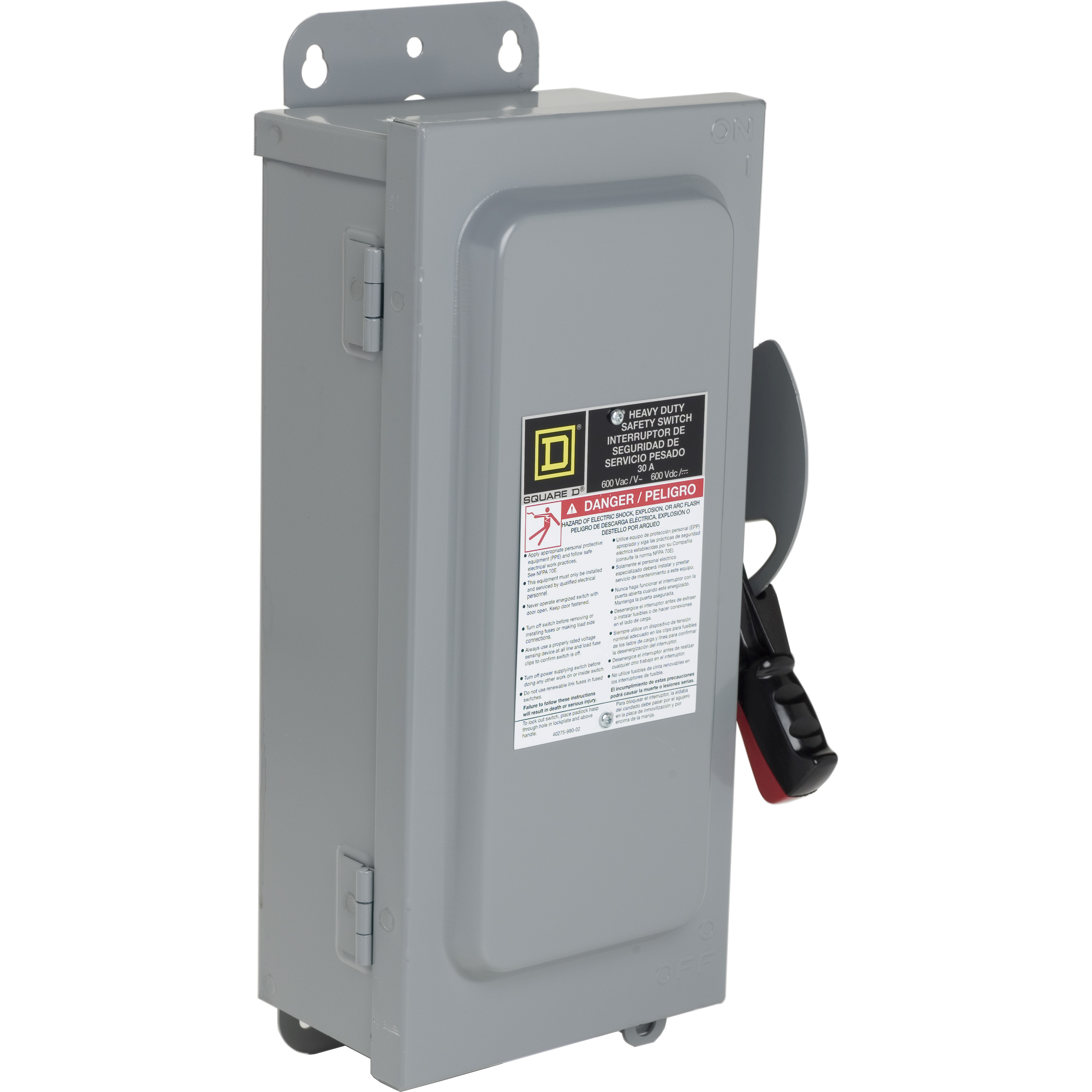

Schneider Electric CHU361AWKEI Heavy Duty Safety Switches
Custom_Product_Images_Illustration
Schneider Electric CHU361AWKEI Heavy Duty Safety Switches
SKU235245
MFGR #CHU361AWKEI
Your Cost: $1,169.31/ea
Schneider Electric CHU361AWKEI SWITCH NOT FUSIBLE HD 30A /INTERLOCK,Receptacle Switch,surface
Schneider Electric CHU361AWKEI SWITCH NOT FUSIBLE HD 30A /INTERLOCK,Receptacle Switch,surface
Actuator Type Handle Alternate Catalog Number CHU361AWKEI ARRA Compliant N Buy American Compliant N Catalog Number CHU361AWKEI Color Gray Country of Origin US Currency USD Dimensions 14.6 in H x 7.55 in W x 4.96 in D Enclosure Type NEMA 12 EU RoHS Indicator Y Finish Galvannealed/Painted Gross Weight Per Pack 11.5100 lb Gross Weight per Pack Metric 5.22 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 13.9700 in Height [Metric] 13.9700 cm Item Group 00153 Length 45.7200 in Length [Metric] 45.7200 cm Material Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=363321&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 3 Number of Wires 4 Phase 1/3 Returnable Y Short Circuit Current Rating 10 kA Standard CSA Temperature Rating -22 to 104 °F Terminal Type Lug Type Dust-Tight Driptight Non-Fusible UNSPSC 39122218 UPC 11 78590115192 UPC 12 785901151920 Width 21.0820 in Width [Metric] 21.0820 cm Wire Type AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Contact Form 1NO-1NC TPST Horsepower 10 hp, 30 hp, 15 hp Voltage Rating 600 VAC//VDC Visible blades for positive indication that switch is "OFF" Quick-make, quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Spring reinforced, plated copper fuse clips Electrical interlock kit Without knockouts
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | CHU361AWKEI |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | CHU361AWKEI |
| Color | Gray |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 14.6 in H x 7.55 in W x 4.96 in D |
| Enclosure Type | NEMA 12 |
| EU RoHS Indicator | Y |
| Finish | Galvannealed/Painted |
| Gross Weight Per Pack | 11.5100 lb |
| Gross Weight per Pack Metric | 5.22 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 13.9700 in |
| Height [Metric] | 13.9700 cm |
| Item Group | 00153 |
| Length | 45.7200 in |
| Length [Metric] | 45.7200 cm |
| Material | Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=363321&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Phase | 1/3 |
| Returnable | Y |
| Short Circuit Current Rating | 10 kA |
| Standard | CSA |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | Dust-Tight Driptight Non-Fusible |
| UNSPSC | 39122218 |
| UPC 11 | 78590115192 |
| UPC 12 | 785901151920 |
| Width | 21.0820 in |
| Width [Metric] | 21.0820 cm |
| Wire Type | AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Contact Form | 1NO-1NC TPST |
| Horsepower | 10 hp, 30 hp, 15 hp |
| Voltage Rating | 600 VAC//VDC |
| Visible blades for positive indication that switch is "OFF" |
| Quick-make, quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Spring reinforced, plated copper fuse clips |
| Electrical interlock kit |
| Without knockouts |
