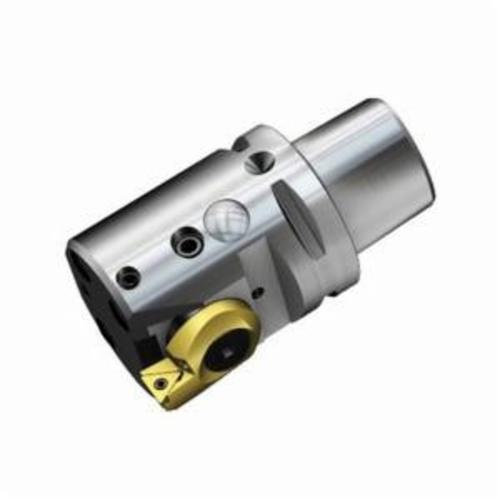

Sandvik Coromant 6873039 CoroBore® 826, C5, 2.7303 to 2.7815 in Bore, Right Hand, TCMT Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6873039 CoroBore® 826, C5, 2.7303 to 2.7815 in Bore, Right Hand, TCMT Insert
SKU1252095
MFGR #6873039
Your Cost: $2,097.63/ea
Sandvik Coromant Fine Boring Tool, Series: CoroBore® 826, System Size: C5, 2.7303 to 2.7815 in Bore Dia, 1.9685 in Head Dia, 2.5984 in Head Length/Projection, Right Hand Cutting, TCMT Insert, Insert Compatibility: TCMT 11 03 04, Steel
Sandvik Coromant Fine Boring Tool, Series: CoroBore® 826, System Size: C5, 2.7303 to 2.7815 in Bore Dia, 1.9685 in Head Dia, 2.5984 in Head Length/Projection, Right Hand Cutting, TCMT Insert, Insert Compatibility: TCMT 11 03 04, Steel
Alternate Catalog Number 826-70TC11-C5HP Bore Diameter 2.7303 to 2.7815 in Catalog Number 6873039 Center to Cutting Edge 5757836 Key, 6873072 Adaptor and 6873085 Cartridge Country of Origin TH Finish C5 Gross Weight Per Pack 2.3500 lb Head Diameter 1.9685 in Item Group 530 Series CoroBore® 826 Type CoroBore® 826 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Head Length|Projection 2.5984 in Insert Compatibility TCMT 11 03 04 Insert Style TCMT Material Steel System Size C5 Bolt and segment clamping machine side adaptive interface 0.0001 mm adjustment increment 0.65 mm adjustment limit 0 deg body half taper 1 cutting item Axial concentric and radial coolant entry 70 bar coolant Axial inclined coolant exit 50 mm Dia connection EFW cutting feed 0 deg orthogonal rake 92 deg cutting edge 0 deg inclination 96 mm OAL T to Triangle insert 0.9 Nm torque 826..TC-CxHP tool style 20 life cycle state ANSI Code: 826-70TC11-C5HP ISO Code: 826-70TC11-C5HP
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 826-70TC11-C5HP |
| Bore Diameter | 2.7303 to 2.7815 in |
| Catalog Number | 6873039 |
| Center to Cutting Edge | 5757836 Key, 6873072 Adaptor and 6873085 Cartridge |
| Country of Origin | TH |
| Finish | C5 |
| Gross Weight Per Pack | 2.3500 lb |
| Head Diameter | 1.9685 in |
| Item Group | 530 |
| Series | CoroBore® 826 |
| Type | CoroBore® 826 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Head Length|Projection | 2.5984 in |
| Insert Compatibility | TCMT 11 03 04 |
| Insert Style | TCMT |
| Material | Steel |
| System Size | C5 |
| Bolt and segment clamping machine side adaptive interface |
| 0.0001 mm adjustment increment |
| 0.65 mm adjustment limit |
| 0 deg body half taper |
| 1 cutting item |
| Axial concentric and radial coolant entry |
| 70 bar coolant |
| Axial inclined coolant exit |
| 50 mm Dia connection |
| EFW cutting feed |
| 0 deg orthogonal rake |
| 92 deg cutting edge |
| 0 deg inclination |
| 96 mm OAL |
| T to Triangle insert |
| 0.9 Nm torque |
| 826..TC-CxHP tool style |
| 20 life cycle state |
| ANSI Code: 826-70TC11-C5HP |
| ISO Code: 826-70TC11-C5HP |
