Sandvik Coromant 6873011 CoroBore® 826, C3, 1.6318 to 1.6752 in Bore, Right Hand, TCMT Insert
Custom_Product_Images_Illustration

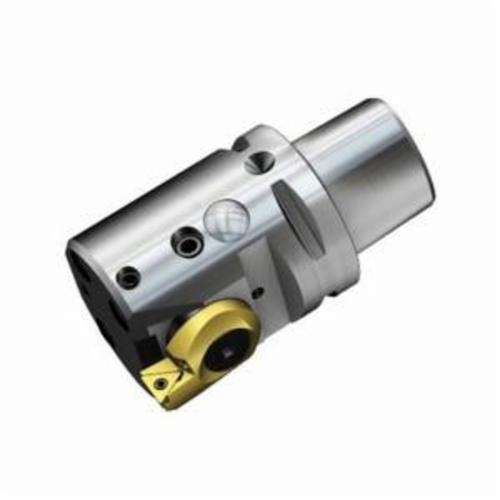

Sandvik Coromant 6873011 CoroBore® 826, C3, 1.6318 to 1.6752 in Bore, Right Hand, TCMT Insert
SKU1252186
MFGR #6873011
Your Cost: $1,824.68/ea
Sandvik Coromant Fine Boring Tool, Series: CoroBore® 826, System Size: C3, 1.6318 to 1.6752 in Bore Dia, 1.2598 in Head Dia, 1.8897 in Head Length/Projection, Right Hand Cutting, TCMT Insert, Insert Compatibility: TCMT 09 02 04, Steel
Sandvik Coromant Fine Boring Tool, Series: CoroBore® 826, System Size: C3, 1.6318 to 1.6752 in Bore Dia, 1.2598 in Head Dia, 1.8897 in Head Length/Projection, Right Hand Cutting, TCMT Insert, Insert Compatibility: TCMT 09 02 04, Steel
Alternate Catalog Number 826-42TC09-C3HP Bore Diameter 1.6318 to 1.6752 in Catalog Number 6873011 Center to Cutting Edge 5757635 Key, 6873066 Adaptor and 6873079 Cartridge Country of Origin TH Finish C3 Gross Weight Per Pack 0.6400 lb Head Diameter 1.2598 in Item Group 530 Series CoroBore® 826 Type CoroBore® 826 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Head Length|Projection 1.8897 in Insert Compatibility TCMT 09 02 04 Insert Style TCMT Material Steel System Size C3 Bolt and segment clamping machine side adaptive interface 0.0001 mm adjustment increment 0.549 mm adjustment limit 0 deg body half taper 1 cutting item Axial concentric and radial coolant entry 70 bar coolant Axial inclined coolant exit 32 mm Dia connection EFW cutting feed 0 deg orthogonal rake 92 deg cutting edge 0 deg inclination 67 mm OAL T to Triangle insert 0.8 Nm torque 826..TC-CxHP tool style 20 life cycle state ANSI Code: 826-42TC09-C3HP ISO Code: 826-42TC09-C3HP
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 826-42TC09-C3HP |
| Bore Diameter | 1.6318 to 1.6752 in |
| Catalog Number | 6873011 |
| Center to Cutting Edge | 5757635 Key, 6873066 Adaptor and 6873079 Cartridge |
| Country of Origin | TH |
| Finish | C3 |
| Gross Weight Per Pack | 0.6400 lb |
| Head Diameter | 1.2598 in |
| Item Group | 530 |
| Series | CoroBore® 826 |
| Type | CoroBore® 826 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Head Length|Projection | 1.8897 in |
| Insert Compatibility | TCMT 09 02 04 |
| Insert Style | TCMT |
| Material | Steel |
| System Size | C3 |
| Bolt and segment clamping machine side adaptive interface |
| 0.0001 mm adjustment increment |
| 0.549 mm adjustment limit |
| 0 deg body half taper |
| 1 cutting item |
| Axial concentric and radial coolant entry |
| 70 bar coolant |
| Axial inclined coolant exit |
| 32 mm Dia connection |
| EFW cutting feed |
| 0 deg orthogonal rake |
| 92 deg cutting edge |
| 0 deg inclination |
| 67 mm OAL |
| T to Triangle insert |
| 0.8 Nm torque |
| 826..TC-CxHP tool style |
| 20 life cycle state |
| ANSI Code: 826-42TC09-C3HP |
| ISO Code: 826-42TC09-C3HP |
