Sandvik Coromant 6332199, TPGX 14 03 08R-L 1125, Triangle, TPGX..R/L-L Insert, 0.3318 in Inscribed Circle, 0.1385 in THK, TPGX 14 03 08R-L 1125

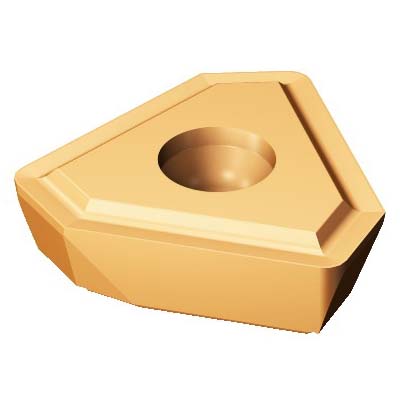

Custom_Product_Images_Illustration
Sandvik Coromant 6332199, TPGX 14 03 08R-L 1125, Triangle, TPGX..R/L-L Insert, 0.3318 in Inscribed Circle, 0.1385 in THK, TPGX 14 03 08R-L 1125
SKU1230592
MFGR #6332199
Your Cost: $15.72/ea
List: Sandvik Coromant Drilling Insert, TPGX..R/L-L Insert, Triangle, 0.3318 in Inscribed Circle, 0.1385 in Thickness, 0.4042 in Width, L Chipbreaker, 0.0314 in Corner Radius, 0.1535 in Hole Dia, Manufacturer's Grade: 1125, ANSI Code: TPGX 14 03 08R-L 1125, Right Hand, ISO Code: TPGX 14 03 08R-L 1125, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Drilling Insert, TPGX..R/L-L Insert, Triangle, 0.3318 in Inscribed Circle, 0.1385 in Thickness, 0.4042 in Width, L Chipbreaker, 0.0314 in Corner Radius, 0.1535 in Hole Dia, Manufacturer's Grade: 1125, ANSI Code: TPGX 14 03 08R-L 1125, Right Hand, ISO Code: TPGX 14 03 08R-L 1125, Carbide, PVD Coated, Material Grade: S
ANSI Code TPGX 14 03 08R-L 1125 Catalog Number 6332199 Country of Origin US Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Right Hole Diameter 0.1535 in Included Angle 1125 ISO Code TPGX 14 03 08R-L 1125 Length Carbide Thickness 0.1385 in Type Triangular UPC 11 69826273798 Width 0.4042 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker L Corner Radius 0.0314 in Inscribed Circle 0.3318 in Insert Size S Insert Style TPGX..R/L-L Manufacturer's Grade 1125 Material Carbide Material Grade S Series 10.268 mm Shape Triangle 11 deg clearance 20 life cycle state 40 - 60 deg countersunk hole and non-flat surface E cutting edge condition Positive rake Peripheral and center insert position For use with push and pull counterboring tool P+C insert usage code 14 insert seat size code G tolerance class insert
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | TPGX 14 03 08R-L 1125 |
| Catalog Number | 6332199 |
| Country of Origin | US |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1535 in |
| Included Angle | 1125 |
| ISO Code | TPGX 14 03 08R-L 1125 |
| Length | Carbide |
| Thickness | 0.1385 in |
| Type | Triangular |
| UPC 11 | 69826273798 |
| Width | 0.4042 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | L |
| Corner Radius | 0.0314 in |
| Inscribed Circle | 0.3318 in |
| Insert Size | S |
| Insert Style | TPGX..R/L-L |
| Manufacturer's Grade | 1125 |
| Material | Carbide |
| Material Grade | S |
| Series | 10.268 mm |
| Shape | Triangle |
| 11 deg clearance |
| 20 life cycle state |
| 40 - 60 deg countersunk hole and non-flat surface |
| E cutting edge condition |
| Positive rake |
| Peripheral and center insert position |
| For use with push and pull counterboring tool |
| P+C insert usage code |
| 14 insert seat size code |
| G tolerance class insert |
