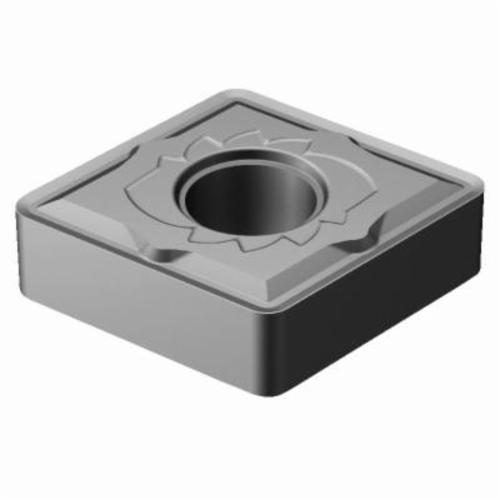

Sandvik Coromant 5915055 T-Max® P Negative Basic Shape Turning Insert, CNMG 433-SM H13A, C-80 deg Diamond, CNMG Insert, H13A
Custom_Product_Images_Illustration
Sandvik Coromant 5915055 T-Max® P Negative Basic Shape Turning Insert, CNMG 433-SM H13A, C-80 deg Diamond, CNMG Insert, H13A
SKU1242029
MFGR #5915055
Your Cost: $12.16/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 3.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, SM Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: CNMG 433-SM H13A, ISO Code: CNMG 12 04 12-SM H13A, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 3.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, SM Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: CNMG 433-SM H13A, ISO Code: CNMG 12 04 12-SM H13A, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Alternate Catalog Number CNMG 433-SM H13A ANSI Code CNMG 433-SM H13A Catalog Number 5915055 Corner Radius 0.047 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 0.2300 lb Hole Diameter 0.203 in Included Angle 80 ° ISO Code CNMG 12 04 12-SM H13A Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 0.187 in UPC 11 69826252832 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SM Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 1/2 in Insert Size 433 Insert Style CNMG Manufacturer's Grade H13A Material Carbide Material Grade K, P Maximum Depth of Cut 0.138 in Rake Negative Seat Size 12 Shape Rhombic Positive insert shape Low cutting forces Excellent edge strength Screw clamping ensures stability and unobstructed chip flow Tools with high pressure coolant Insert geometries and grades for all materials For external turning operations and internal machining 0.12 - 0.38 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 433-SM H13A |
| ANSI Code | CNMG 433-SM H13A |
| Catalog Number | 5915055 |
| Corner Radius | 0.047 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.2300 lb |
| Hole Diameter | 0.203 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 12 04 12-SM H13A |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| UPC 11 | 69826252832 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 433 |
| Insert Style | CNMG |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 0.138 in |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Rhombic |
| Positive insert shape |
| Low cutting forces |
| Excellent edge strength |
| Screw clamping ensures stability and unobstructed chip flow |
| Tools with high pressure coolant |
| Insert geometries and grades for all materials |
| For external turning operations and internal machining |
| 0.12 - 0.38 mm/r cutting feed |
