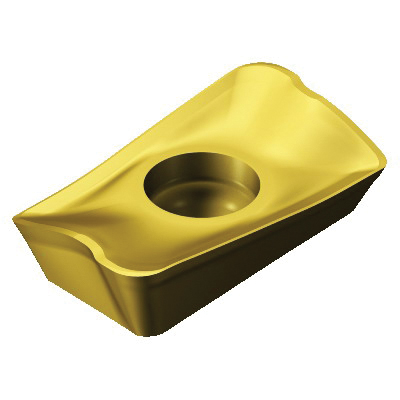

Sandvik Coromant 5853487 CoroMill® 390 Milling Insert, R390-11 T3 20E-PM S40T, L-Rectangle, R390..E-PM Insert, Carbide, S40T, R390-11 T3 20E-PM S40T
Custom_Product_Images_Illustration
Sandvik Coromant 5853487 CoroMill® 390 Milling Insert, R390-11 T3 20E-PM S40T, L-Rectangle, R390..E-PM Insert, Carbide, S40T, R390-11 T3 20E-PM S40T
SKU1234709
MFGR #5853487
Your Cost: $28.97/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..E-PM Insert, L-Rectangle, 0.268 in Inscribed Circle, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, PM Chipbreaker, 0.079 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturer's Grade: S40T, ANSI Code: R390-11 T3 20E-PM S40T, ISO Code: R390-11 T3 20E-PM S40T, Right Hand, Carbide, CVD Coated, Material Grade: S
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..E-PM Insert, L-Rectangle, 0.268 in Inscribed Circle, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, PM Chipbreaker, 0.079 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturer's Grade: S40T, ANSI Code: R390-11 T3 20E-PM S40T, ISO Code: R390-11 T3 20E-PM S40T, Right Hand, Carbide, CVD Coated, Material Grade: S
Alternate Catalog Number R390-11 T3 20E-PM S40T ANSI Code R390-11 T3 20E-PM S40T Catalog Number 5853487 Corner Radius 0.079 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 7.3000 lb Hand of Insert Right Hole Diameter 0.1102 in ISO Code R390-11 T3 20E-PM S40T Item Group 350 Lead Angle 90 ° Length 0.4507 in Material Application Heat Resistant Alloys Series CoroMill® 390 Thickness 0.141 in UPC 11 69826252047 Width 0.268 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 0.268 in Insert Size 11T320 Insert Style R390..E-PM Manufacturer's Grade S40T Material Carbide Material Grade S Rake Positive Shape Rectangle 40 to 60 deg countersunk hole and non-flat surface clamping interface 21 deg clearance 10 mm D cutting 90 deg major cutting edge 10 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-11 T3 20E-PM S40T |
| ANSI Code | R390-11 T3 20E-PM S40T |
| Catalog Number | 5853487 |
| Corner Radius | 0.079 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 7.3000 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1102 in |
| ISO Code | R390-11 T3 20E-PM S40T |
| Item Group | 350 |
| Lead Angle | 90 ° |
| Length | 0.4507 in |
| Material Application | Heat Resistant Alloys |
| Series | CoroMill® 390 |
| Thickness | 0.141 in |
| UPC 11 | 69826252047 |
| Width | 0.268 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 0.268 in |
| Insert Size | 11T320 |
| Insert Style | R390..E-PM |
| Manufacturer's Grade | S40T |
| Material | Carbide |
| Material Grade | S |
| Rake | Positive |
| Shape | Rectangle |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 21 deg clearance |
| 10 mm D cutting |
| 90 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
