Sandvik Coromant
Sandvik Coromant 5846570 Top-Lok® Grooving Insert, TLG-2058L 1125 ANSI, TLG Insert, TLG-2058L 1125 ISO, 0.0787 in W Cutting

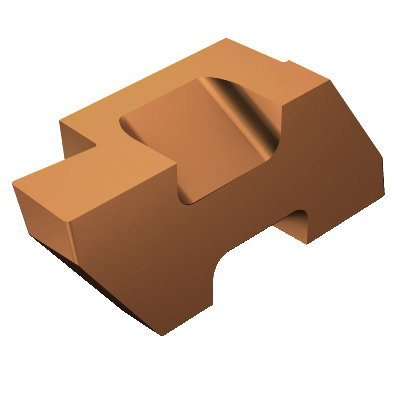

Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5846570 Top-Lok® Grooving Insert, TLG-2058L 1125 ANSI, TLG Insert, TLG-2058L 1125 ISO, 0.0787 in W Cutting
SKU1244925
MFGR #5846570
Your Cost: $40.49/ea
Sandvik Coromant Grooving Insert, Series: Top-Lok®, TLG Insert, 0.0787 in Cutting Width, 0.05 in Maximum Depth of Cut, 0.0075 in Corner Radius, 0.219 in Thickness, 0.344 in Length, Manufacturers Grade: 1125, ANSI Code: TLG-2058L 1125, ISO Code: TLG-2058L 1125, Left Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
Sandvik Coromant Grooving Insert, Series: Top-Lok®, TLG Insert, 0.0787 in Cutting Width, 0.05 in Maximum Depth of Cut, 0.0075 in Corner Radius, 0.219 in Thickness, 0.344 in Length, Manufacturers Grade: 1125, ANSI Code: TLG-2058L 1125, ISO Code: TLG-2058L 1125, Left Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
Alternate Catalog Number TLG-2058L 1125 ANSI Code TLG-2058L 1125 Catalog Number 5846570 Country of Origin US Finish PVD-TiCrAlN+TiAlN Coated Gross Weight Per Pack 0.0800 lb ISO Code TLG-2058L 1125 Item Group 315 Length 0.344 in Material Grade K, M, P, S Series Top-Lok® Thickness 0.219 in UPC 11 69826252164 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Corner Radius 0.008 in Cutting Direction Left Hand Cutting Width 0.0000 in Insert Size 2 Insert Style TLG Lead Angle 0 ° Manufacturer's Grade 1125 Material Carbide Maximum Depth of Cut 0.05 in Multiply operations with the same holder by just changing insert|Double ended inserts provide high edge security|Interchangeable with similar clamping systems by changing the top clamp and screw 20 life cycle state 0 deg body machine side -0.0254 mm W cutting lower tolerance 0.0254 mm W cutting upper tolerance Notch clamping 4 deg cutting edge angle F cutting edge condition 1-side cutting Top lok insert mounting style 2 edges 5 insert mounting style code 2 insert seat size code
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | TLG-2058L 1125 |
| ANSI Code | TLG-2058L 1125 |
| Catalog Number | 5846570 |
| Country of Origin | US |
| Finish | PVD-TiCrAlN+TiAlN Coated |
| Gross Weight Per Pack | 0.0800 lb |
| ISO Code | TLG-2058L 1125 |
| Item Group | 315 |
| Length | 0.344 in |
| Material Grade | K, M, P, S |
| Series | Top-Lok® |
| Thickness | 0.219 in |
| UPC 11 | 69826252164 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Corner Radius | 0.008 in |
| Cutting Direction | Left Hand |
| Cutting Width | 0.0000 in |
| Insert Size | 2 |
| Insert Style | TLG |
| Lead Angle | 0 ° |
| Manufacturer's Grade | 1125 |
| Material | Carbide |
| Maximum Depth of Cut | 0.05 in |
| Multiply operations with the same holder by just changing insert|Double ended inserts provide high edge security|Interchangeable with similar clamping systems by changing the top clamp and screw |
| 20 life cycle state |
| 0 deg body machine side |
| -0.0254 mm W cutting lower tolerance |
| 0.0254 mm W cutting upper tolerance |
| Notch clamping |
| 4 deg cutting edge angle |
| F cutting edge condition |
| 1-side cutting |
| Top lok insert mounting style |
| 2 edges |
| 5 insert mounting style code |
| 2 insert seat size code |
