Sandvik Coromant 5758809 T-Max® Q-Cut Slitting Insert, 330.20-20-AA 4230 ANSI, 330.20-AA Insert, 330.20-20-AA 4230 ISO, Carbide
330 Milling Inserts
1229166
MFG #: 5758809
Sandvik Coromant
15.25000
/ ea

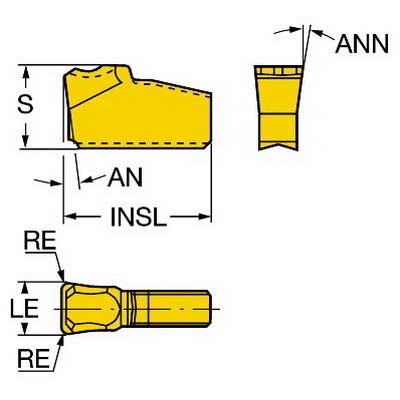

Sandvik Coromant Slitting Insert, Series: T-Max® Q-Cut, 330.20-AA Insert, 0.2211 in Thickness, 0.3149 in Length, AA Chipbreaker, 0.0074 in Corner Radius, Manufacturer's Grade: 4230, ANSI Code: 330.20-20-AA 4230, ISO Code: 330.20-20-AA 4230, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/M/P
- Features
| Concave clamping interface |
| 7 deg clearance |
| E cutting edge condition |
| 2.06 mm W cutting |
| 1-side cutting |
| +/-0.1 mm corner radius tolerance |
| 20 life cycle state |
