Sandvik Coromant

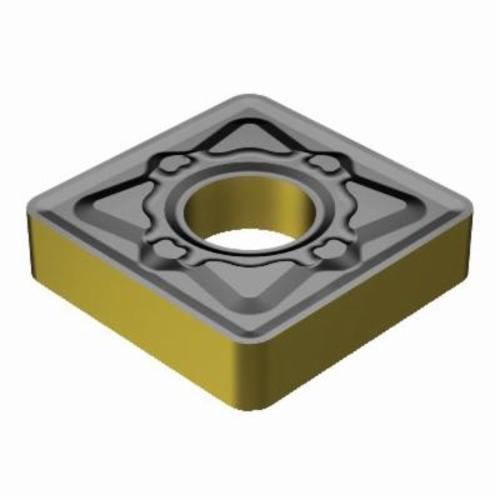

Sandvik Coromant 5750812 T-Max® P Negative Basic Shape Turning Insert, SNMG 644-KM 3215, S-Square, SNMG Insert, 3215, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5750812 T-Max® P Negative Basic Shape Turning Insert, SNMG 644-KM 3215, S-Square, SNMG Insert, 3215, Carbide
SKU1239730
MFGR #5750812
Your Cost: $33.97/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 9 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, KM Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 3215, ANSI Code: SNMG 644-KM 3215, ISO Code: SNMG 19 06 16-KM 3215, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 9 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, KM Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 3215, ANSI Code: SNMG 644-KM 3215, ISO Code: SNMG 19 06 16-KM 3215, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
ANSI Code SNMG 644-KM 3215 Catalog Number 5750812 Corner Radius 0.0624 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.7100 lb Hole Diameter 0.312 in Included Angle 90 ° ISO Code SNMG 19 06 16-KM 3215 Length 3/4 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826225533 Width 3/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KM Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 3/4 in Insert Size 644 Insert Style SNMG Manufacturer's Grade 3215 Material Carbide Material Grade K Maximum Depth of Cut 9 mm Rake Negative Seat Size 19 Shape Square PM geometry - finishing with wiper technology High surface quality High feed rates Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | SNMG 644-KM 3215 |
| Catalog Number | 5750812 |
| Corner Radius | 0.0624 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.7100 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 19 06 16-KM 3215 |
| Length | 3/4 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826225533 |
| Width | 3/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 3/4 in |
| Insert Size | 644 |
| Insert Style | SNMG |
| Manufacturer's Grade | 3215 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 9 mm |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Square |
| PM geometry - finishing with wiper technology |
| High surface quality |
| High feed rates |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
