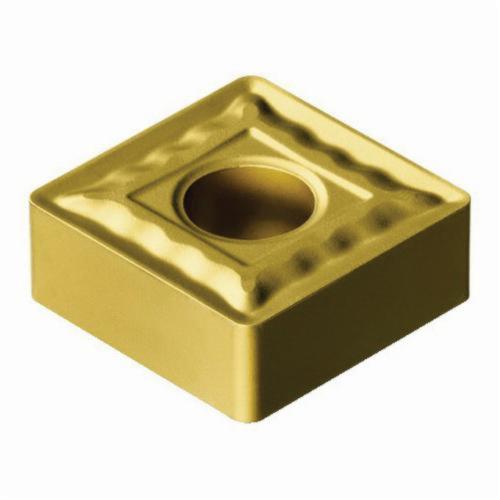

Sandvik Coromant 5750344 T-Max® P Negative Basic Shape Turning Insert, SNMG 643-QM 235, S-Square, SNMG Insert, 235
Custom_Product_Images_Illustration
Sandvik Coromant 5750344 T-Max® P Negative Basic Shape Turning Insert, SNMG 643-QM 235, S-Square, SNMG Insert, 235
SKU1239774
MFGR #5750344
Your Cost: $39.41/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, QM Chipbreaker, 0.0468 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 235, ANSI Code: SNMG 643-QM 235, ISO Code: SNMG 19 06 12-QM 235, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, QM Chipbreaker, 0.0468 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 235, ANSI Code: SNMG 643-QM 235, ISO Code: SNMG 19 06 12-QM 235, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M/P
Alternate Catalog Number SNMG 643-QM 235 ANSI Code SNMG 643-QM 235 Catalog Number 5750344 Corner Radius 0.0468 in Country of Origin IN Finish CVD-TiCN+TiN Coated Gross Weight Per Pack 0.6500 lb Hole Diameter 0.312 in Included Angle 90 ° ISO Code SNMG 19 06 12-QM 235 Item Group 110 Length 3/4 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826269119 Width 3/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker QM Cutting Direction Neutral For Use On Stainless Steel and Steel Inscribed Circle 3/4 in Insert Size 643 Insert Style SNMG Manufacturer's Grade 235 Material Carbide Material Grade M, P Maximum Depth of Cut 10 mm Rake Negative Seat Size 19 Shape Square Universal insert for operations from finishing to medium machining Can also be used for counterboring Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 643-QM 235 |
| ANSI Code | SNMG 643-QM 235 |
| Catalog Number | 5750344 |
| Corner Radius | 0.0468 in |
| Country of Origin | IN |
| Finish | CVD-TiCN+TiN Coated |
| Gross Weight Per Pack | 0.6500 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 19 06 12-QM 235 |
| Item Group | 110 |
| Length | 3/4 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826269119 |
| Width | 3/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | QM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel and Steel |
| Inscribed Circle | 3/4 in |
| Insert Size | 643 |
| Insert Style | SNMG |
| Manufacturer's Grade | 235 |
| Material | Carbide |
| Material Grade | M, P |
| Maximum Depth of Cut | 10 mm |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Square |
| Universal insert for operations from finishing to medium machining |
| Can also be used for counterboring |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
