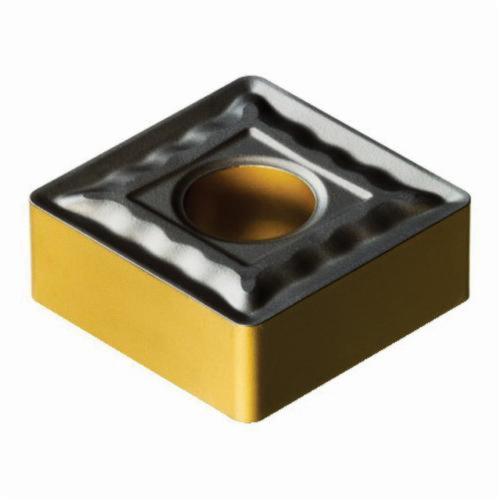

Sandvik Coromant 5750339 T-Max® P Negative Basic Shape Turning Insert, SNMG 432-QM 4205, S-Square, SNMG Insert, 4205
Custom_Product_Images_Illustration
Sandvik Coromant 5750339 T-Max® P Negative Basic Shape Turning Insert, SNMG 432-QM 4205, S-Square, SNMG Insert, 4205
SKU1239364
MFGR #5750339
Your Cost: $15.75/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 1/2 in Length, QM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4205, ANSI Code: SNMG 432-QM 4205, ISO Code: SNMG 12 04 08-QM 4205, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 1/2 in Length, QM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4205, ANSI Code: SNMG 432-QM 4205, ISO Code: SNMG 12 04 08-QM 4205, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
ANSI Code SNMG 432-QM 4205 Catalog Number 5750339 Corner Radius 0.0312 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2400 lb Hole Diameter 0.2029 in Included Angle 90 ° ISO Code SNMG 12 04 08-QM 4205 Length 1/2 in Relief Angle 0 ° Series T-Max® P Thickness 0.187 in UPC 11 69826242629 Width 1/2 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker QM Cutting Direction Neutral For Use On Steel Inscribed Circle 1/2 in Insert Size 432 Insert Style SNMG Manufacturer's Grade 4205 Material Carbide Material Grade P Maximum Depth of Cut 6 mm Rake Negative Seat Size 12 Shape Square Universal insert for operations from finishing to medium machining Can also be used for counterboring Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | SNMG 432-QM 4205 |
| Catalog Number | 5750339 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2400 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 12 04 08-QM 4205 |
| Length | 1/2 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| UPC 11 | 69826242629 |
| Width | 1/2 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | QM |
| Cutting Direction | Neutral |
| For Use On | Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 432 |
| Insert Style | SNMG |
| Manufacturer's Grade | 4205 |
| Material | Carbide |
| Material Grade | P |
| Maximum Depth of Cut | 6 mm |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Square |
| Universal insert for operations from finishing to medium machining |
| Can also be used for counterboring |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
