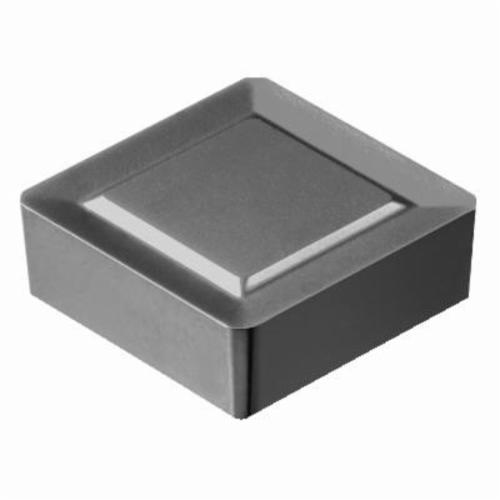

Sandvik Coromant 5748838 Auto FS Milling Insert, SBEX 12 04 ZZ HM ANSI, S-Square, SBEX Insert, SBEX 12 04 ZZ HM ISO, Carbide, HM
SBEX Milling Inserts
1250106
MFG #: 5748838
Sandvik Coromant
21.75000
/ ea
Sandvik Coromant Milling Insert, Series: Auto FS, SBEX Insert, S-Square, 1/2 in Inscribed Circle, 0.1874 in Thickness, 1/2 in Length, 0.0196 in Corner Radius, 0 deg Rake, Manufacturer's Grade: HM, ANSI Code: SBEX 12 04 ZZ HM, ISO Code: SBEX 12 04 ZZ HM, Neutral Hand, Carbide, Uncoated, Material Grade: K
- Features
| Flat surface clamping interface |
| 90 deg included angle |
| 90 deg cutting edge angle |
| 20 life cycle state |
| 1-side cutting |
| 0.1 - 0.3 mm/r cutting feed |
