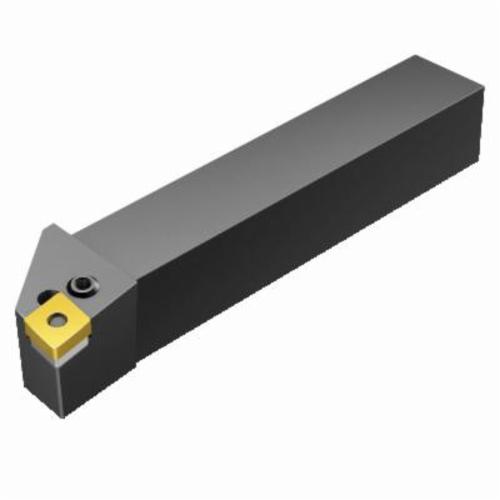

Sandvik Coromant 5738229 T-Max P Shank Tool, PCLNR/L Tool Holder, CNMG 120408 (MIIDM) and CNMG 432 (MIIDN) Insert, -5 deg Lead, Rectangle Shank, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5738229 T-Max P Shank Tool, PCLNR/L Tool Holder, CNMG 120408 (MIIDM) and CNMG 432 (MIIDN) Insert, -5 deg Lead, Rectangle Shank, Left Hand
SKU1237644
MFGR #5738229
Your Cost: $176.55/ea
Sandvik Coromant Shank Tool, Series: T-Max P, PCLNR/L Tool Holder, 4.9212 in Overall Length, Rectangle Shank, 0.7874 in H x 0.7874 in W Shank, Insert Compatibility: CNMG 120408 (MIIDM) and CNMG 432 (MIIDN), 1/2 Insert Seat, Left Hand Cutting, -5 deg Lead Angle, ANSI Code: PCLNL 2020K 12, ISO Code: PCLNL 2020K 12, -6 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: T-Max P, PCLNR/L Tool Holder, 4.9212 in Overall Length, Rectangle Shank, 0.7874 in H x 0.7874 in W Shank, Insert Compatibility: CNMG 120408 (MIIDM) and CNMG 432 (MIIDN), 1/2 Insert Seat, Left Hand Cutting, -5 deg Lead Angle, ANSI Code: PCLNL 2020K 12, ISO Code: PCLNL 2020K 12, -6 deg Rake, Steel
Alternate Catalog Number PCLNL 2020K 12 ANSI Code PCLNL 2020K 12 Catalog Number 5738229 Country of Origin SE Gross Weight Per Pack 0.9500 lb Insert Seat Size 1/2 ISO Code PCLNL 2020K 12 Item Group 210 Material Steel Series T-Max P Shank Type Rectangle UPC 11 69826212902 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility CNMG 120408 (MIIDM) and CNMG 432 (MIIDN) Lead Angle -5 deg Overall Length 4.9212 in Rake -6 deg Shank Size 0.7874 in H x 0.7874 in W Tool Holder Style PCLNR/L 0 deg body machine side 0 deg body workpiece side Without coolant entry No coolant exit -6 deg inclination 95 deg cutting edge 0 deg maximum ramping 20 life cycle state 27.2 mm maximum overhang 5 Nm torque 25 mm W functional Lever hole clamping C - 80 deg diamond insert ANSI Code: PCLNL 2020K 12 ISO Code: PCLNL 2020K 12
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | PCLNL 2020K 12 |
| ANSI Code | PCLNL 2020K 12 |
| Catalog Number | 5738229 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.9500 lb |
| Insert Seat Size | 1/2 |
| ISO Code | PCLNL 2020K 12 |
| Item Group | 210 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| UPC 11 | 69826212902 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | CNMG 120408 (MIIDM) and CNMG 432 (MIIDN) |
| Lead Angle | -5 deg |
| Overall Length | 4.9212 in |
| Rake | -6 deg |
| Shank Size | 0.7874 in H x 0.7874 in W |
| Tool Holder Style | PCLNR/L |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| -6 deg inclination |
| 95 deg cutting edge |
| 0 deg maximum ramping |
| 20 life cycle state |
| 27.2 mm maximum overhang |
| 5 Nm torque |
| 25 mm W functional |
| Lever hole clamping |
| C - 80 deg diamond insert |
| ANSI Code: PCLNL 2020K 12 |
| ISO Code: PCLNL 2020K 12 |
